Teresina-Rack PCB layout, top view — open source STM32 board by marcoallegretti

About the Teresina-Rack PCB

Teresina-Rack is an open source STM32 PCB design by marcoallegretti, published on GitHub. It is a 12-layer board measuring 68 × 40 mm, with 209 components from 54 distinct parts.

Its main chip is the STM32H750IBK6, from the STM32 family. Other key parts include the IS25LP064A-JBLE, IS42S32160F-6BLI, PCM3060PWR, TPS62170DSGR and LD1117S50CTR. By type, the board carries 96 capacitors, 80 resistors, 12 ICs, 8 inductors, 5 diodes and 3 connectors.

It belongs with the audio designs in this gallery.

From the project

Version 0.1.0-alpha0 — design-validated (DRC/ERC/SPICE/DFM clean), not yet fabricated or hardware-tested. Treat everything below as pre-production until a first build is verified.

Version 0.1.0-alpha0 — design-validated (DRC/ERC/SPICE/DFM clean), not yet fabricated or hardware-tested. Treat everything below as pre-production until a first build is verified.

An open, self-fabricatable clone of the Electro-Smith Daisy Patch SM — the Eurorack DSP submodule — built around the STM32H750 + 64 MB SDRAM, designed to run stock libDaisy DaisyPatchSM firmware unmodified and to drop into carriers such as kivu12 / eurorack-blocks.

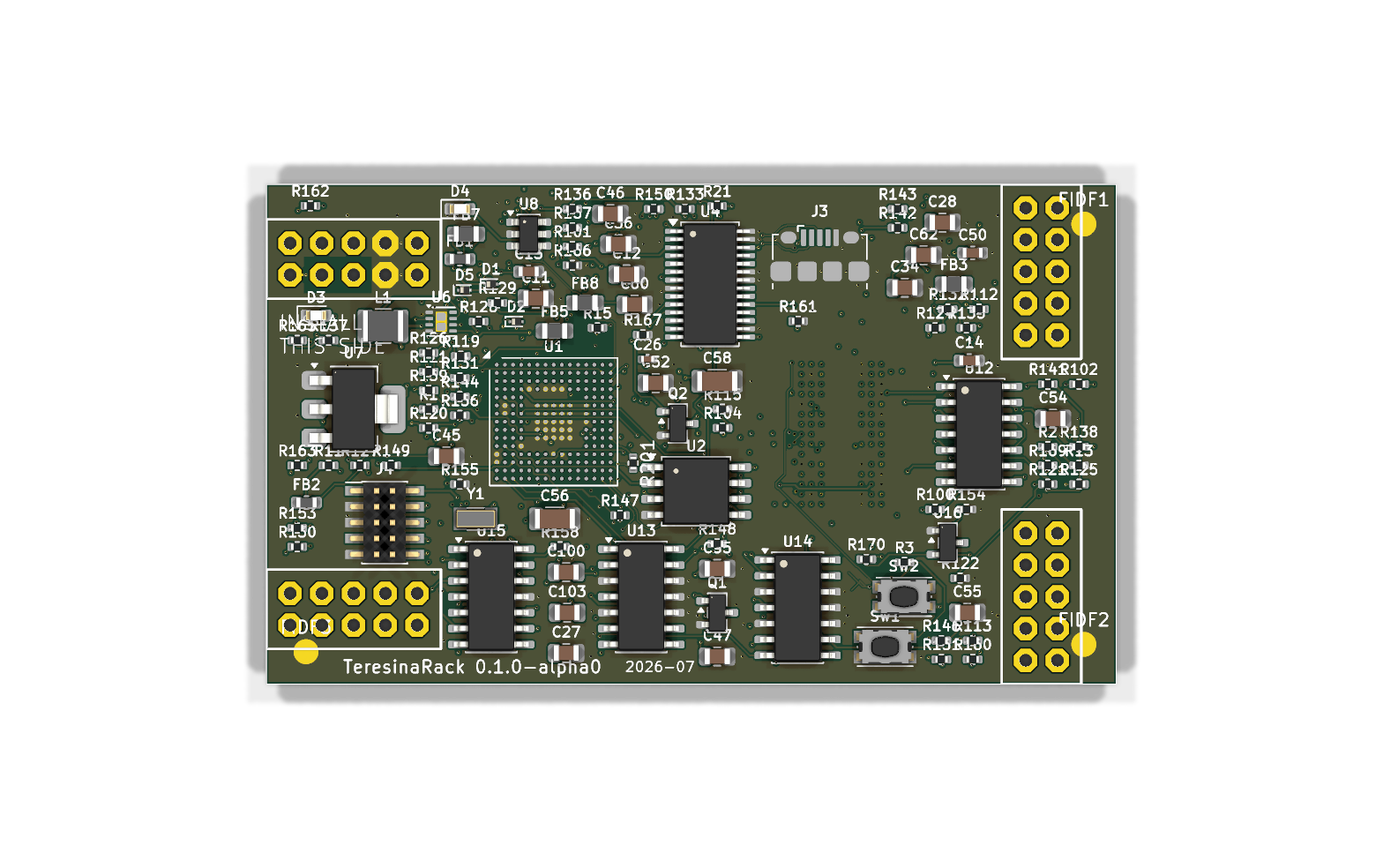

Teresina-Rack, from the project README
From the project README

Main components on the Teresina-Rack

STM32H750IBK6IS25LP064A-JBLEIS42S32160F-6BLIPCM3060PWRTPS62170DSGRLD1117S50CTRUSBLC6-2SC6TL074IDTMCP6004T-I/SLLM4040C10IDBZR

Teresina-Rack bill of materials (BOM)

209 components, 54 distinct parts.

QtyPartRefs
1
STM32H750IBK6
U1
1
IS25LP064A-JBLE
IS25LP064A
U2
1
IS42S32160F-6BLI
U3
1
PCM3060PWR
PCM3060
U4
1
TPS62170DSGR
U6
1
LD1117S50CTR
LD1117S50
U7
1
USBLC6-2SC6
U8
1
TL074IDT
TL074
U12
3
MCP6004T-I/SL
MCP6004
U13, U14, U15
1
LM4040C10IDBZR
LM4040DBZ-10
U16
2
MMBT3904(RANGE:100-300)
MMBT3904
Q1, Q2
1
X322516MLB4SI
16MHz
Y1
1
10118194-0001LF
USB_Micro-B
J3
1
SWD062R08E8T
SWD
J4
1
PATCH_SM_EDGE
J5
1
KMR231NGLFS
RESET
SW1
1
KMR231NGLFS
BOOT
SW2
3
NSR1020MW2T1G
NSR1020
D1, D2, D5
1
XL-1608SYGC-06
LED_USER
D3
1
KT-0603R
LED_PWR
D4
Show 34 more
QtyPartRefs
2
MCR03EZPFX3600
600R@100MHz
FB1, FB2
5
CR0805FR600P05Z
600R@100MHz
FB3, FB5, FB7, FB8, FB9
1
NLCV32T-220K-EF
2.2uH
L1
45
CL05B104KO5NNNC
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +37
4
CL21A475KAQNNNE
4.7uF
C11, C12, C27, C28
3
CL10A226MQ8NRNC
2.2uF
C13, C14, C50
3
CL05A105KA5NQNC
1uF
C15, C17, C48
10
CL21A106KAYNNNE
10uF
C34, C35, C45, C47, C52, C54, C55, C60 +2
2
CL21A226MOQNNNE
22uF
C36, C46
6
0402CG180J500NT
18pF
C37, C38, C120, C122, C123, C125
2
CL31A226KAHNNNE
22uF
C56, C58
2
CL21A226MAQNNNE
2.2uF
C100, C103
10
0402B221K500NT
220pF
C101, C104, C126, C127, C128, C129, C130, C131 +2
2
0402CG101J500NT
100pF
C121, C124
6
0402B102K500NT
1nF
C134, C135, C136, C137, C138, C139
1
CL10A225KO8NNNC
2.2uF
C201
2
0402WGF4701TCE
4.7k
R1, R2
5
0402WGF1002TCE
10k
R3, R4, R21, R168, R169
1
0402WGF510KTCE
5.1R
R11
1
0402WGF4702TCE
47k
R12
3
0402WGF1502TCE
15K
R13, R101, R104
14
0402WGF1001TCE
1K
R14, R15, R102, R105, R148, R149, R150, R151 +6
6
RC0402FR-0766K5L
66K5
R100, R103, R111, R114, R118, R121
4
0402WGF1802TCE
18K
R110, R113, R117, R120
4
0402WGF3902TCE
39K
R112, R115, R119, R122
4
RC0402FR-07100RL
100R
R116, R123, R158, R159
12
0402WGF1003TCE
100K
R124, R125, R126, R127, R128, R129, R130, R131 +4
8
0402WGF2003TCE
200K
R132, R133, R134, R135, R136, R137, R138, R139
8
0402WGF3302TCE
33K
R140, R141, R142, R143, R144, R145, R146, R147
2
0402WGF1203TCE
120K
R154, R155
2
FRC0402F6202TS
62K
R156, R157
2
0402WGF1004TCE
1M
R166, R167
1
0402WGF2001TCE
2K
R170
1
0402WGF4701TCE
4K7
R201

Teresina-Rack design files

The KiCad project lives in the marcoallegretti/Teresina-Rack repository on GitHub; these links point at the commit this page was built from.

Teresina-Rack: common questions

What microcontroller does the Teresina-Rack use?

The Teresina-Rack is built around the STM32H750IBK6, from the STM32 family.

How big is the Teresina-Rack PCB?

The Teresina-Rack measures 68 × 40 mm, has 12 copper layers and is 1.6 mm thick.

How many components are on the Teresina-Rack?

209 components, from 54 distinct parts. The full bill of materials is listed on this page.

Where can I download the Teresina-Rack design files?

From the marcoallegretti/Teresina-Rack repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Teresina-Rack design in my own project?

The repository has no license, so all rights stay with marcoallegretti. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Teresina-Rack without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
