MOSFEaTher PCB layout, top view — open source ESP32 board by MartinWeigel

About the MOSFEaTher PCB

MOSFEaTher is an open source ESP32 PCB design by MartinWeigel, published on GitHub. It is a 2-layer board measuring 63.5 × 51.5 mm, with 30 components from 16 distinct parts.

Its main chip is the 3.3V (ESP32), from the ESP32 family. Other key parts include the Feather_HUZZAH32. By type, the board carries 8 transistors, 8 connectors, 8 resistors, 3 jumpers and 1 module.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

MOSFET PCB for the Adafruit HUZZAH32 (ESP32 Feather)

This PCB provides control of eight MOSFET outputs. These can be controlled through an Adafruit Feather HUZZAH32 microcontroller. It is a two-layer PCB and all parts can be handsoldered in case that costs are a concern.

This board was designed using KiCad 6.0.

Part | Quantity | Description -----------------------|----------|---------------------------- Feather HUZZAH32 | 1 | ESP32 Microcontroller Phoenix MPT-0,5-2-2.54 | 8 | 2-pin Terminalblock IRLR024N DPAK MOSFET | 8 | N-Channel MOSFET (55V 17A) 0805 Resistor 470 Ohm | 8 | Generic Resistor

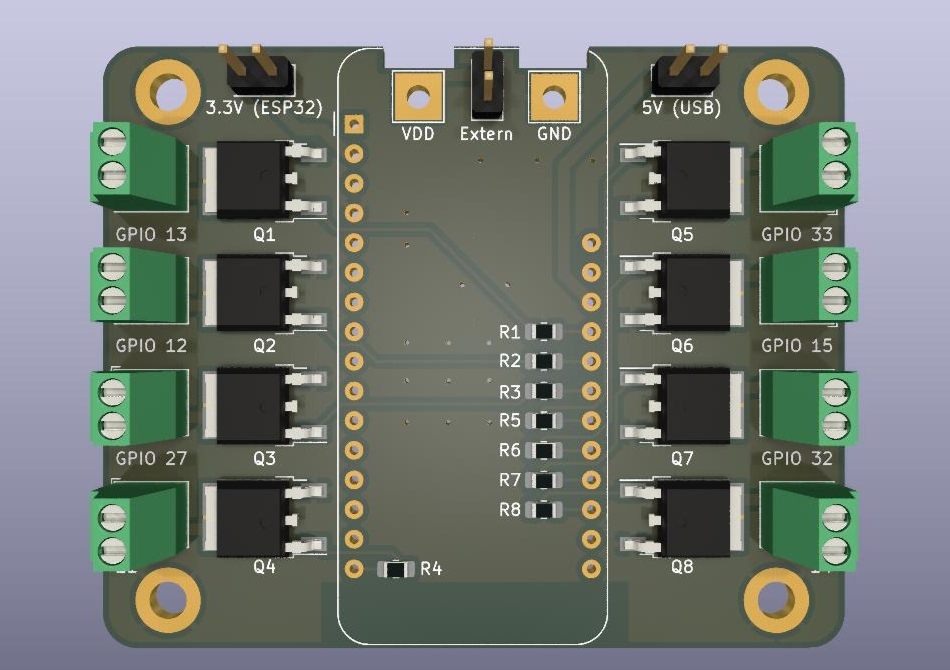

MOSFEaTher, from the project README
From the project README

Main components on the MOSFEaTher

Feather_HUZZAH32

MOSFEaTher bill of materials (BOM)

30 components, 16 distinct parts.

QtyPartRefs
1
Feather_HUZZAH32
A1
8
STD7NK40Z
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8
1
GPIO 13
J1
1
GPIO 12
J2
1
GPIO 27
J3
1
21
J4
1
GPIO 33
J5
1
GPIO 15
J6
1
GPIO 32
J7
1
14
J8
1
VDD
H5
1
GND
H6
1
3.3V (ESP32)
JP1
1
5V (USB)
JP2
1
Extern
JP3
8
470
R1, R2, R3, R4, R5, R6, R7, R8

MOSFEaTher design files

The KiCad project lives in the MartinWeigel/MOSFEaTher repository on GitHub; these links point at the commit this page was built from.

MOSFEaTher: common questions

What microcontroller does the MOSFEaTher use?

The MOSFEaTher is built around the 3.3V (ESP32), from the ESP32 family.

How big is the MOSFEaTher PCB?

The MOSFEaTher measures 63.5 × 51.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MOSFEaTher?

30 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the MOSFEaTher design files?

From the MartinWeigel/MOSFEaTher repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MOSFEaTher design in my own project?

The repository has no license, so all rights stay with MartinWeigel. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MOSFEaTher without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
