Artificer-A1-Single-Board-Computer layout, top view — open source board by MattSpot10

About the Artificer-A1-Single-Board-Computer

Artificer-A1-Single-Board-Computer is an open source PCB design by MattSpot10, published on GitHub under the MIT license. It is a 6-layer board measuring 115 × 90 mm, with 486 components from 102 distinct parts.

Other key parts include the GT-USB-7010ASV, GD25LQ128EWIGR, AP64500SP-13, STUSB4500QTR and AP64350SP-13. By type, the board carries 282 capacitors, 125 resistors, 22 ICs, 15 inductors, 14 diodes and 6 transistors.

From the project

An open source Single Board Computer with AI capabilities.

The Allwinner T527 is a 0.5mm pitch BGA requiring these compatabilities for maufacturing: - 3mil trace - 3mil spacing - 10.685mil pad - 6mil drill - 10.685mil pad - 6mil drill = 2.342mil anular ring - 6 - 8 layers (Stackup and material not determined)

Booting Linux - Add Spi flash chip to schematic for holding U Boot. - Configure U Boot for loading the Linux kernel and the device tree blob.

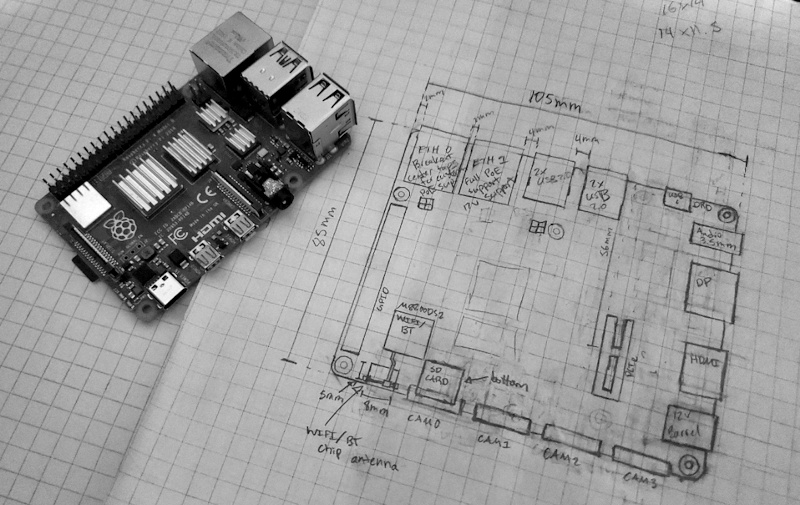

Artificer-A1-Single-Board-Computer, from the project README
From the project README

Main components on the Artificer-A1-Single-Board-Computer

GT-USB-7010ASVGD25LQ128EWIGRAP64500SP-13STUSB4500QTRAP64350SP-13T527M00X0DCHSY8089A1AACAXP717BAXP323K4UBE3D4AB-MGCLAFC11-S22ICA-00RTL8211F-CGHD3SS3202IRSVRX3113WVS-36-9TV01CH217KCH334F_C5187527

Artificer-A1-Single-Board-Computer bill of materials (BOM)

486 components, 102 distinct parts.

QtyPartRefs
1
GT-USB-7010ASV
U1
1
GD25LQ128EWIGR
GigaDevice(兆易创新)
U2
2
AP64500SP-13
DIODES(美台)
U3, U6
1
STUSB4500QTR
ST(意法半导体)
U4
1
AP64350SP-13
DIODES(美台)
U5
1
T527M00X0DCH
U8
1
SY8089A1AAC
U9
1
AXP717B
U10
1
AXP323
U11
1
K4UBE3D4AB-MGCL
U12
4
AFC11-S22ICA-00
JS(钜硕电子)
U13, U24, U25, U26
2
RTL8211F-CG
U14, U15
1
HD3SS3202IRSVR
U16
1
X3113WVS-36-9TV01
U17
1
~
U19
1
CH217K
U21
1
CH334F_C5187527
U22
1
Fan&Heatsink_40x40mm
M1
2
AON3419-TP
TECH PUBLIC(台舟)
Q1, Q2
1
AO3401A
Alpha & Omega Semicon
Q3
Show 82 more
QtyPartRefs
1
2SK3018
Q4
2
AO3401A
Q6, Q7
2
25MHz
X1, X2
1
SMD-3225_4P12M12PF10PPM
X3
1
25MHz
X4
1
SC-20S,32.768kHz,20PPM,9pF
SC-20S32.768kHz20PPM9pF
Seiko(精工)
X5
1
PJ-393-8P
PJ-393-8P_C49284725
XUNPU(讯普)
CN3
1
Conn_02x20_Odd_Even
J1
1
Conn_01x02
J2
1
TF-110
Card1
1
CAR06-201EN5F
DP1
2
0.5K-A-22PB
FPC1, FPC2
1
HD-A-05H9191N
HDMI1
1
U.FL-R-SMT-1(80)
JP1
2
HR911130A
HANRUN(汉仁)
RJ1, RJ2
1
TS-1185-W-4P-H1.8-160
BOOT1
CAX(创都)
SW1
1
TS-1185-W-4P-H1.8-160
RESET
CAX(创都)
SW2
2
Double layer DIP 90° black
USB1, USB2
1
HC-USB3.0-L168-WJ
HC(虹成电子)
USB4
2
ESDA25P35-1U1M-ES
ElecSuper(静芯)
D1, D3
9
RClamp0524PATCT
D4, D5, D6, D7, D8, D9, D10, D11 +1
2
LESD5D5.0CT1G
LESD5D5.0CT1G_C5199850
UMW(友台半导体)
D12, D14
1
B5819WT
B5819WT_C7502714
R+O(宏嘉诚)
D15
2
MTQH404020S3R3MBT
3.3uH MTQH404020S3R3MBT
MetalLions(美铼)
L2, L16
8
APH252012C1R0MP01
APV(爱普微)
L3, L4, L5, L6, L7, L8, L9, L10
2
APH141208C2R2MP01
APV(爱普微)
L11, L12
1
ANT162442DT-2001A2
L13
1
MLG1005S1N3BT000
L14
1
MTQH404030S100MBT
10uH MTQH404030S100MBT
MetalLions(美铼)
L15
3
10uF
Murata Electronics
C1, C14, C15
4
100nF
Samsung Electro-Mechanics
C2, C9, C16, C17
2
1uF
Samsung Electro-Mechanics
C3, C13
2
22uF
Samsung Electro-Mechanics
C25, C27
96
100nF
C85, C86, C87, C88, C133, C134, C135, C136 +88
2
10nF
C162, C163
69
2.2uF
C166, C169, C209, C210, C221, C222, C223, C224 +61
36
22uF
C179, C180, C233, C234, C235, C236, C237, C238 +28
4
22pF
C182, C188, C205, C291
21
1uF
C190, C192, C194, C219, C220, C231, C232, C247 +13
3
3.3nF
C195, C197, C289
3
47pF
C196, C204, C290
1
33pF
C198
1
1nF
C201
4
6pF
C215, C216, C217, C218
16
10uF
C243, C244, C245, C246, C256, C269, C273, C274 +8
1
1uF
C258
2
4pF
C259, C260
3
4.7uF
C279, C280, C281
1
6.2pF
C298
1
0.4pF
C299
4
12pF
C304, C305, C306, C307
3
470nF
C338, C339, C340
14
10k
R107, R108, R168, R176, R199, R202, R204, R205 +6
19
100k
R109, R110, R111, R158, R162, R163, R164, R165 +11
2
2.49k
R112, R113
38
4.7k
R114, R115, R116, R117, R118, R119, R120, R121 +30
5
470
R144, R145, R146, R147, R156
11
1k
R148, R149, R150, R154, R157, R161, R173, R196 +3
3
200
R151, R152, R153
1
39k
R155
1
100
R159
1
22k
R160
5
0Ω
R167, R175, R229, R232, R237
1
120Ω
R177
2
240Ω
R178, R179
1
51k
R180
1
6.3k
R181
3
200k
R182, R189, R190
3
14k
R183, R186, R191
1
75k
R187
1
24k
R188
1
27k
R192
1
5.1k
R193
1
0Ω
R194
1
10k
R200
1
0Ω
R203
1
10M
R206
1
4.3k
R207
1
6.8k
R208
1
2k
R235
1
47k
R236
2
22Ω
R238, R239

Artificer-A1-Single-Board-Computer design files

The KiCad project lives in the MattSpot10/Artificer-A1-Single-Board-Computer repository on GitHub; these links point at the commit this page was built from.

Artificer-A1-Single-Board-Computer: common questions

How big is the Artificer-A1-Single-Board-Computer?

The Artificer-A1-Single-Board-Computer measures 115 × 90 mm, has 6 copper layers and is 0.9984 mm thick.

How many components are on the Artificer-A1-Single-Board-Computer?

486 components, from 102 distinct parts. The full bill of materials is listed on this page.

Where can I download the Artificer-A1-Single-Board-Computer design files?

From the MattSpot10/Artificer-A1-Single-Board-Computer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Artificer-A1-Single-Board-Computer design in my own project?

Yes, under the terms of its MIT license, which MattSpot10 chose for the repository.
