Front

MattSzymonski·Hackaday2026·2025-Communicator_Badge/hardware/communicator_front/front_pcb.kicad_pcb

Front PCB layout, top view — open source ESP32 board by MattSzymonski
Simulate this board

About the Front PCB

Front is an open source ESP32 PCB design by MattSzymonski, published on GitHub. It is a 2-layer board measuring 148 × 81 mm, with 7 components from 6 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. By type, the board carries 3 resistors, 2 capacitors, 1 IC and 1 diode.

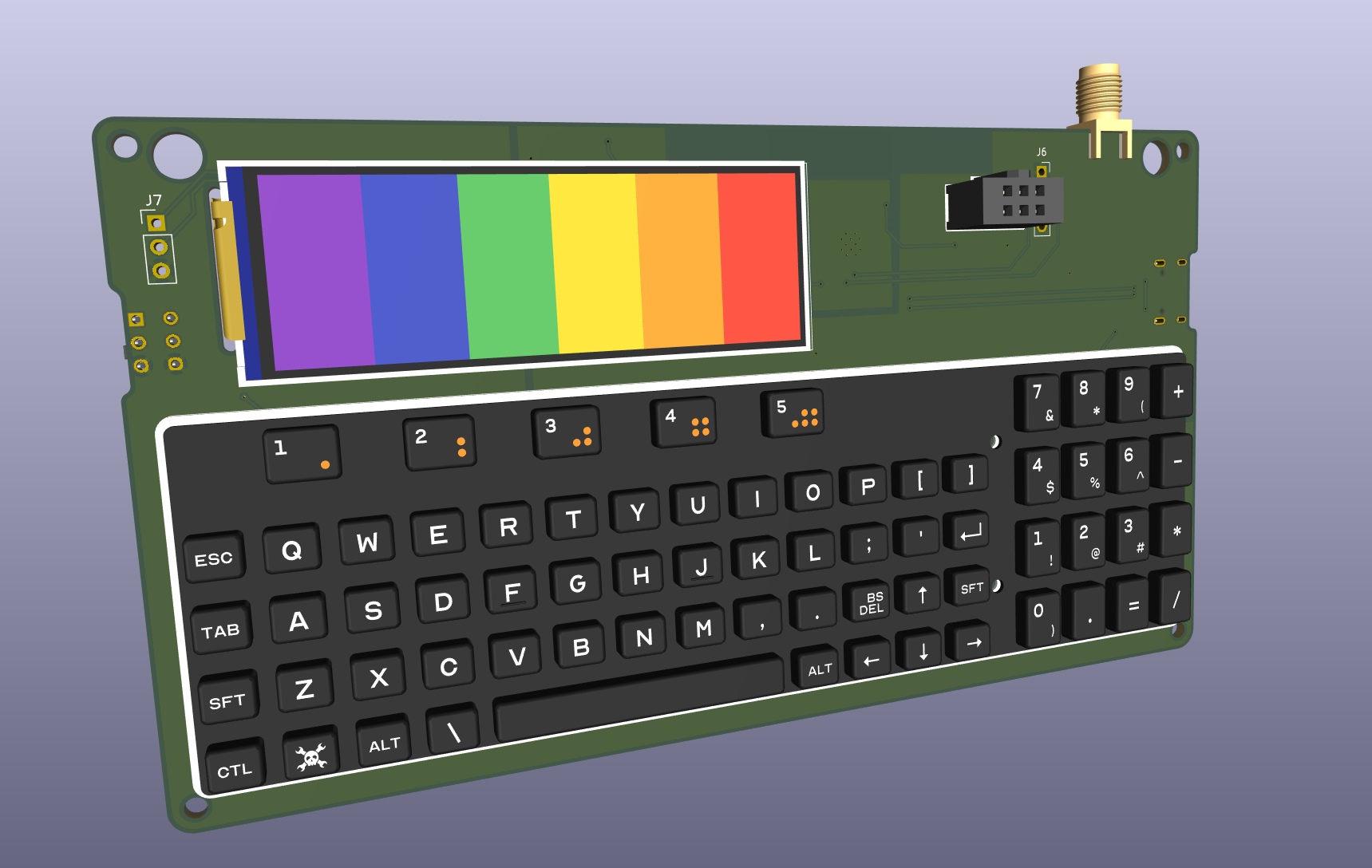

Front, from the project README
From the project README

Main components on the Front

ESP32-S3-WROOM-1

Front bill of materials (BOM)

7 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1
ICM7555xB
U1
1
LED
D1
1
10UF
100 nF
C1
1
1 uF
C2
1
1k
R1
2
5.1K
1 M
R2, R3

Front design files

The KiCad project lives in the MattSzymonski/Hackaday2026 repository on GitHub; these links point at the commit this page was built from.

Front: common questions

What microcontroller does the Front use?

The Front is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Front PCB?

The Front measures 148 × 81 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Front?

7 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Front design files?

From the MattSzymonski/Hackaday2026 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Front design in my own project?

The repository has no license, so all rights stay with MattSzymonski. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Front without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
