Keyboard PCB layout, top view — open source RP2040/RP2350 board by MaxKiv

About the Keyboard PCB

Keyboard is an open source RP2040/RP2350 PCB design by MaxKiv, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 138.8 × 89.9 mm, with 29 components from 7 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 21 relays, 2 resistors, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

My custom Piantor + Corne inspired keyboard

An awesome custom split keyboard, at least I think so 😉. Made by Max Kivits and Timon Borg, the KiBo!

This keyboard is loosely based on the [Piantor] and [Cantor] keyboards. It's a 42-key diodeless non-flippable cherry-mx hotswapable mechanical split keyboard with aggressive column staggering. It's powered by 2 RP2040, completely overkill! I redesigned the PCB to use cherry-mx style hotswap switches and adjusted the margins so it fits my hands better. The pcb features an artsy silklayer, because why not?

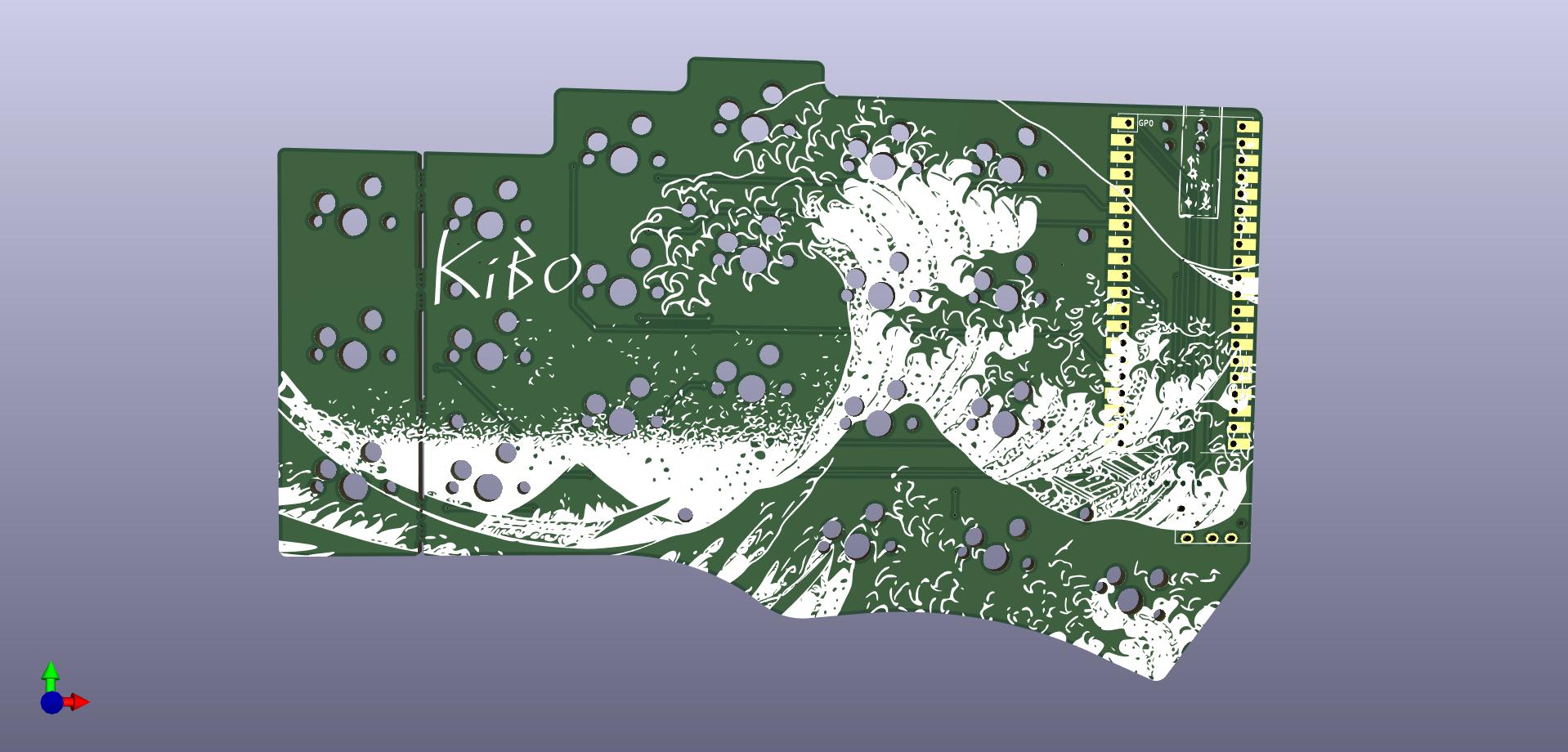

Keyboard, from the project README
From the project README

Main components on the Keyboard

Pico

Keyboard bill of materials (BOM)

29 components, 7 distinct parts.

QtyPartRefs
1
Pico
U2
1
TRRS
J1
21
KEYSW
K00, K01, K02, K03, K04, K05, K10, K11 +13
2
MountingHole
MB1, MB2
2
MountingHole
MB3, MB4
1
5k6
R1
1
10k
R2

Keyboard design files

The KiCad project lives in the MaxKiv/kibo repository on GitHub; these links point at the commit this page was built from.

Keyboard: common questions

What microcontroller does the Keyboard use?

The Keyboard is built around the Pico, from the RP2040/RP2350 family.

How big is the Keyboard PCB?

The Keyboard measures 138.8 × 89.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyboard?

29 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Keyboard design files?

From the MaxKiv/kibo repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Keyboard design in my own project?

Yes, under the terms of its GPL-3.0 license, which MaxKiv chose for the repository.

Can I test firmware for the Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
