Stethoscope BP Brick

MediBrick·Stethoscope_BP_Brick·KiCad/Sound.kicad_pcb

Stethoscope BP Brick PCB layout, top view — open source board by MediBrick

About the Stethoscope BP Brick PCB

Stethoscope BP Brick is an open source PCB design by MediBrick, published on GitHub. It is a 2-layer board measuring 70 × 70 mm, with 70 components from 28 distinct parts.

Other key parts include the ES8388, TLV9062IDDFR and MPRLS0300YG00001B. By type, the board carries 33 capacitors, 26 resistors, 6 connectors, 3 ICs, 1 jumper and 1 diode.

It belongs with the audio designs in this gallery.

From the project

The stethoscope and blood pressure brick consists of a sound as well as pressure recorder. For sound the I2S (Inter-Integrated Circuit Sound) bus is used to communicate with the microcontroller. This interface allows streaming and recording audio to an audio codec board. The Ever

The stethoscope and blood pressure brick consists of a sound as well as pressure recorder. For sound the I2S (Inter-Integrated Circuit Sound) bus is used to communicate with the microcontroller. This interface allows streaming and recording audio to an audio codec board. The Everest Semiconductor ES8388 audio codec was chosen because its supported by Arduino Audio Tools library and Arduino Audio Driver and because Espressif created the Lyrat Audio modules with published reference designs.

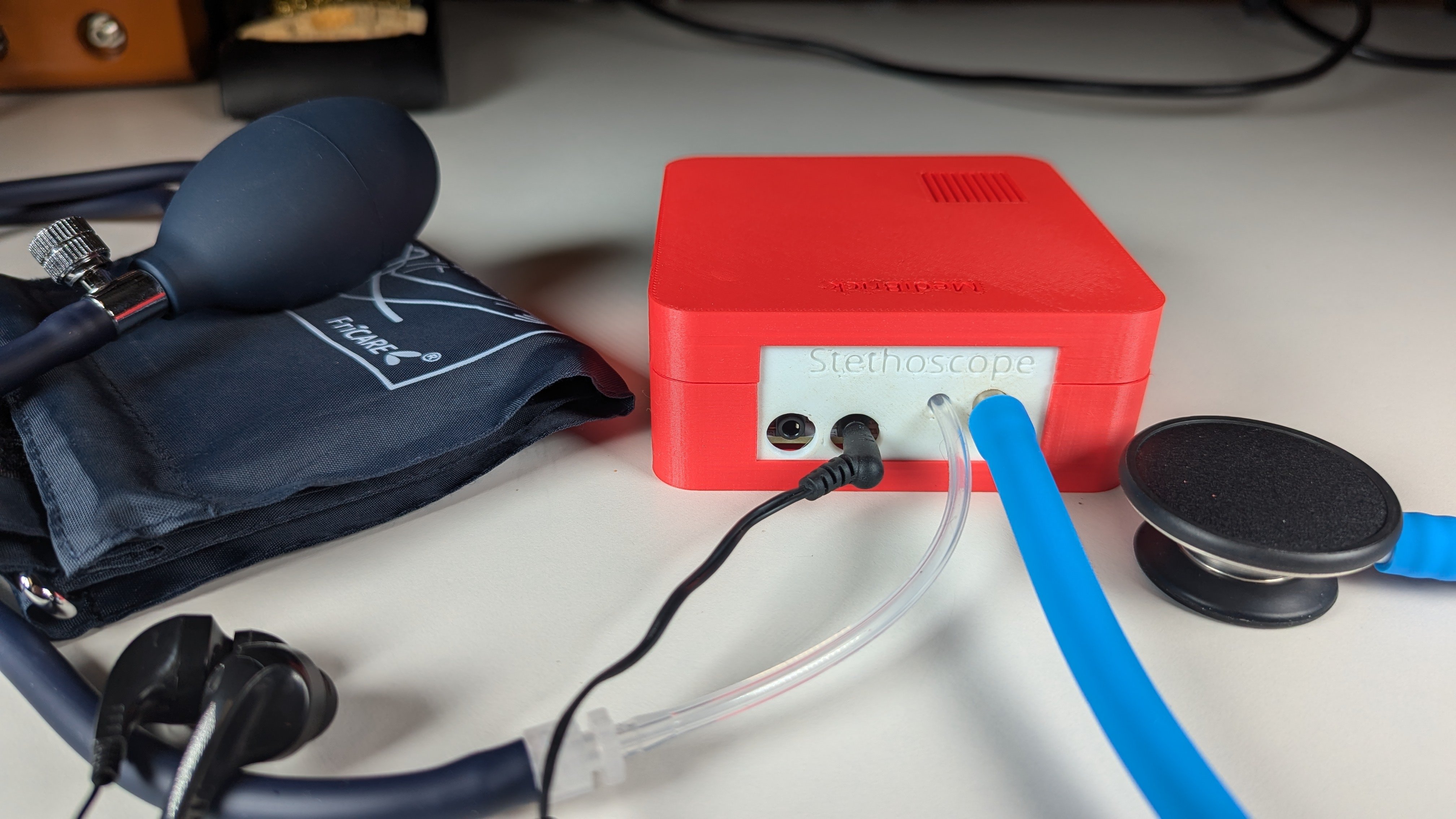

Stethoscope BP Brick, from the project README
From the project README

Main components on the Stethoscope BP Brick

ES8388TLV9062IDDFRMPRLS0300YG00001B

Stethoscope BP Brick bill of materials (BOM)

70 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ES8388
Everest-semi(Everest Semiconductor)
IC1
1
TLV9062IDDFR
Texas Instruments
IC2
1
MPRLS0300YG00001B
U1
1
SJ-3523-SMT
SJ-3523-SMT-TR
CUI Devices
J1
1
1X10
CONN_10"
J2
1
SJ2-3574A-SMT
SJ2-3574A-SMT-TR
CUI Devices
J3
3
1X2
CONN_02
J4, J5, J6
1
Jumper_2_Bridged
JP1
1
XL-1608UBC-04
RED
XINGLIGHT
D1
2
GRM188R61E475KE11D
4.7uF
muRata
C1, C6
10
GRM188R71H104KA93D
0.1uF
muRata
C2, C7, C9, C10, C11, C12, C13, C14 +2
8
GRM188R61A106KE69D
10uF
muRata
C3, C15, C16, C17, C18, C19, C20, C29
6
GCM188R71E105KA64D
1.0uF
muRata
C4, C21, C22, C23, C24, C27
2
CC0603JRNPO9BN501
500pF
YAEGO
C5, C8
2
GRM188R60J476ME15D
47uF
muRata
C25, C26
1
GRM1885C1H102JA01D
1nF
muRata
C30
2
GCG1885G1H220JA01D
22pF
muRata
C31, C32
5
RT0603BRD0710KL
10k
YAGEO
R1, R5, R12, R15, R17
2
RC0603JR-0747KL
47k
YAGEO
R2, R3
2
RT0603BRD0720KL
20k
YAGEO
R4, R8
Show 8 more
QtyPartRefs
5
RC0603JR-0733RL
33
YAGEO
R6, R7, R9, R10, R11
2
RT0603BRB072KL
2.0k
YAGEO
R13, R14
1
RT0603BRD071KL
1k
YAGEO
R16
3
RT0603BRD07100RL
100
YAGEO
R18, R19, R20
1
RT0603DRE074R7L
4.7
YAGEO
R21
1
RT0603BRB073K3L
3.3k
YAGEO
R22
2
RC0603FR-071ML
1M
YAGEO
R23, R24
2
AC0603FR-072K2L
2.2k
YAGEO
R29, R30

Stethoscope BP Brick design files

The KiCad project lives in the MediBrick/Stethoscope_BP_Brick repository on GitHub; these links point at the commit this page was built from.

Stethoscope BP Brick: common questions

How big is the Stethoscope BP Brick PCB?

The Stethoscope BP Brick measures 70 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stethoscope BP Brick?

70 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stethoscope BP Brick design files?

From the MediBrick/Stethoscope_BP_Brick repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stethoscope BP Brick design in my own project?

The repository has no license, so all rights stay with MediBrick. Use it as a reference, and ask the author before reusing the design.
