Esp32-fan controller

merlindorin·esp32-fan-controller·kicad/esp32-fan-controller.kicad_pcb

Esp32-fan controller PCB layout, top view — open source ESP32 board by merlindorin
Simulate this board

About the Esp32-fan controller PCB

Esp32-fan controller is an open source ESP32 PCB design by merlindorin, published on GitHub under the MIT license. It is a 2-layer board measuring 85 × 155 mm, with 38 components from 19 distinct parts.

Its main chip is the ESP32-DEVKITC, from the ESP32 family. By type, the board carries 10 connectors, 9 capacitors, 9 resistors, 4 fuses, 3 diodes and 1 IC.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

A small KiCad board to keep my home server cabinet cool. 4 PWM fans, 4 temperature probes, one ESP32.

A small KiCad board to keep my home server cabinet cool. 4 PWM fans, 4 temperature probes, one ESP32.

My home servers live in a small cabinet, hidden inside a piece of furniture I built around them. It is a credenza with a stone top, a perforated metal grille set into that top so the warm air can escape upward, and cane mesh side panels so fresh air can come in from below.

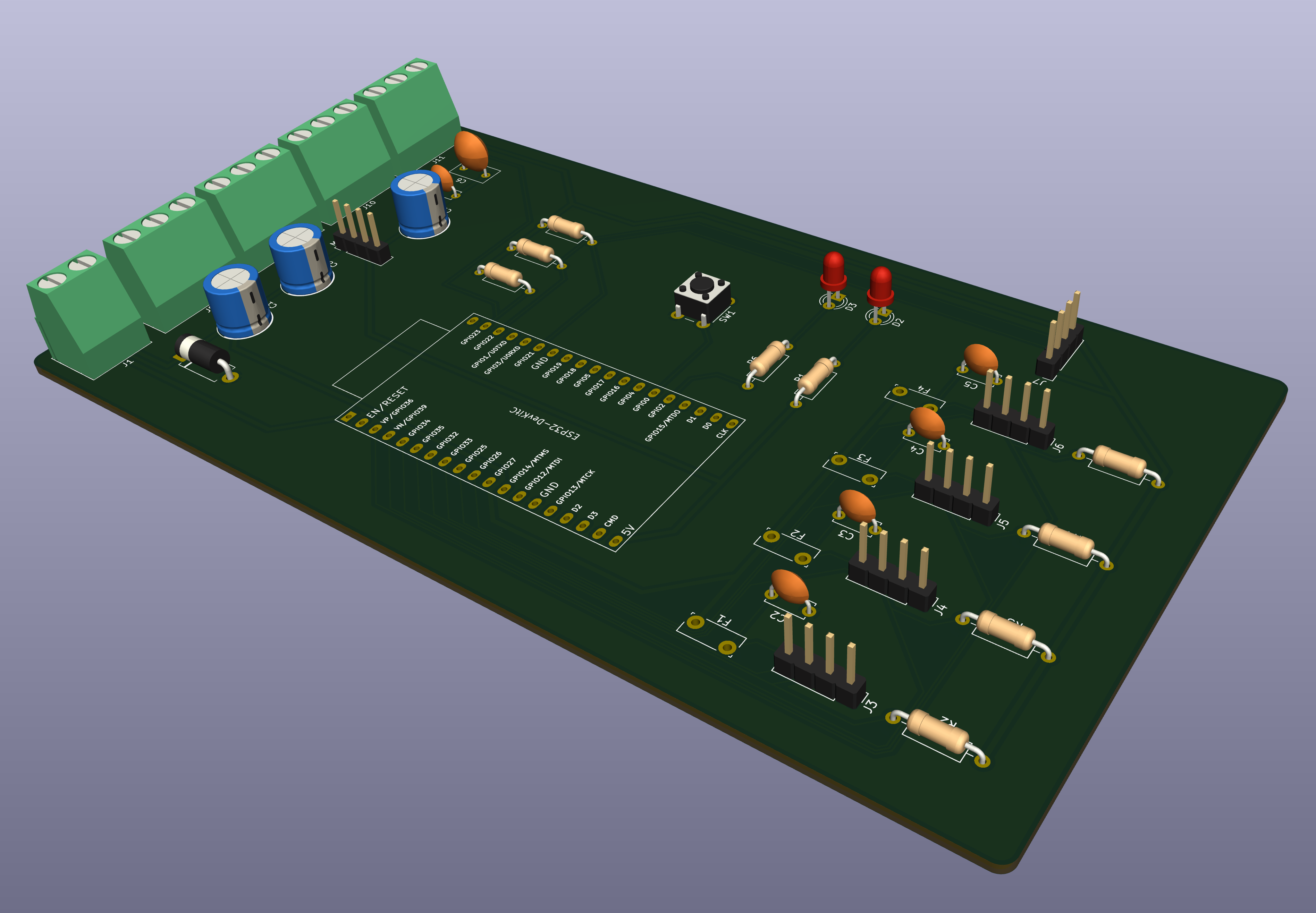

Esp32-fan controller, from the project README
From the project README

Main components on the Esp32-fan controller

ESP32-DEVKITC

Esp32-fan controller bill of materials (BOM)

38 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-DEVKITC
ESP32-DevKitC
U1
1
61300411121
MP1584EN
Wurth Elektronik
M1
1
1715721
12V_IN
Phoenix Contact
J1
4
61300411121
FAN
Wurth Elektronik
J3, J4, J5, J6
1
61300411121
I2C
Wurth Elektronik
J7
4
1715734
MKDS 1,5/3-5,08
Phoenix Contact
J8, J9, J10, J11
4
MF-R050
0.5A
Bourns
F1, F2, F3, F4
1
B3F-1000
BOOT_USER
Omron
SW1
1
1.5KE15A
Littelfuse
D1
1
L-934LGD
GREEN
Kingbright
D2
1
TLLY4400
YELLOW
Vishay
D3
2
MCGPR25V107M6.3X11
100µF / 25V
Multicomp Pro
C1, C8
5
K104K15X7RF5UH5
100nF
Vishay
C2, C3, C4, C5, C7
1
TAP106K016SCS
10µF
Kyocera AVX
C6
1
ECA1CHG100
10 µF / 16V
Panasonic
C9
1
CFR25J1K0
1k
TE Connectivity
R1
4
CFR25J10K
10k
TE Connectivity
R2, R3, R4, R5
1
CFR25J470R
470
TE Connectivity
R6
3
CFR25J4K7
4k7
TE Connectivity
R7, R8, R9

Esp32-fan controller design files

The KiCad project lives in the merlindorin/esp32-fan-controller repository on GitHub; these links point at the commit this page was built from.

Esp32-fan controller: common questions

What microcontroller does the Esp32-fan controller use?

The Esp32-fan controller is built around the ESP32-DEVKITC, from the ESP32 family.

How big is the Esp32-fan controller PCB?

The Esp32-fan controller measures 85 × 155 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-fan controller?

38 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-fan controller design files?

From the merlindorin/esp32-fan-controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-fan controller design in my own project?

Yes, under the terms of its MIT license, which merlindorin chose for the repository.

Can I test firmware for the Esp32-fan controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
