Chameleon mesh node

MetaStrawman·chameleon-mesh-node·hardware/kicad/chameleon_mesh_node_v1.kicad_pcb

Chameleon mesh node PCB layout, top view — open source ESP32 board by MetaStrawman
Simulate this board

About the Chameleon mesh node PCB

Chameleon mesh node is an open source ESP32 PCB design by MetaStrawman, published on GitHub under the Custom license license. It is a 2-layer board measuring 60 × 34 mm, with 5 components from 5 distinct parts.

Its main chip is the XIAO-ESP32-C5-SMD, from the ESP32 family. Other key parts include the Wio-WM1110 and BME280. By type, the board carries 3 ICs, 1 connector and 1 capacitor.

It belongs with the rf & radio, sensors and iot & wireless designs in this gallery.

From the project

Chameleon Mesh Node — Seeed Meshtastic Build-Off 2026: dual-radio off-grid telemetry + LoRa mesh relay (Wio-WM1110 LoRa/GNSS + XIAO ESP32-C5 + BME280)

Submission: Seeed Studio Meshtastic Build-Off 2026 Status: Design complete & verified — routed, DRC-clean (0 errors / 0 unconnected; 29 cosmetic silkscreen/DFM warnings), Gerbers exported. Pre-fabrication (first article not yet ordered). Hardware revision: v1.2 License: Multi-license open source — CERN-OHL-S-2.0 (hardware), GPL-3.0-or-later (Meshtastic firmware variant), MIT (tooling). See LICENSE and NOTICE.md.

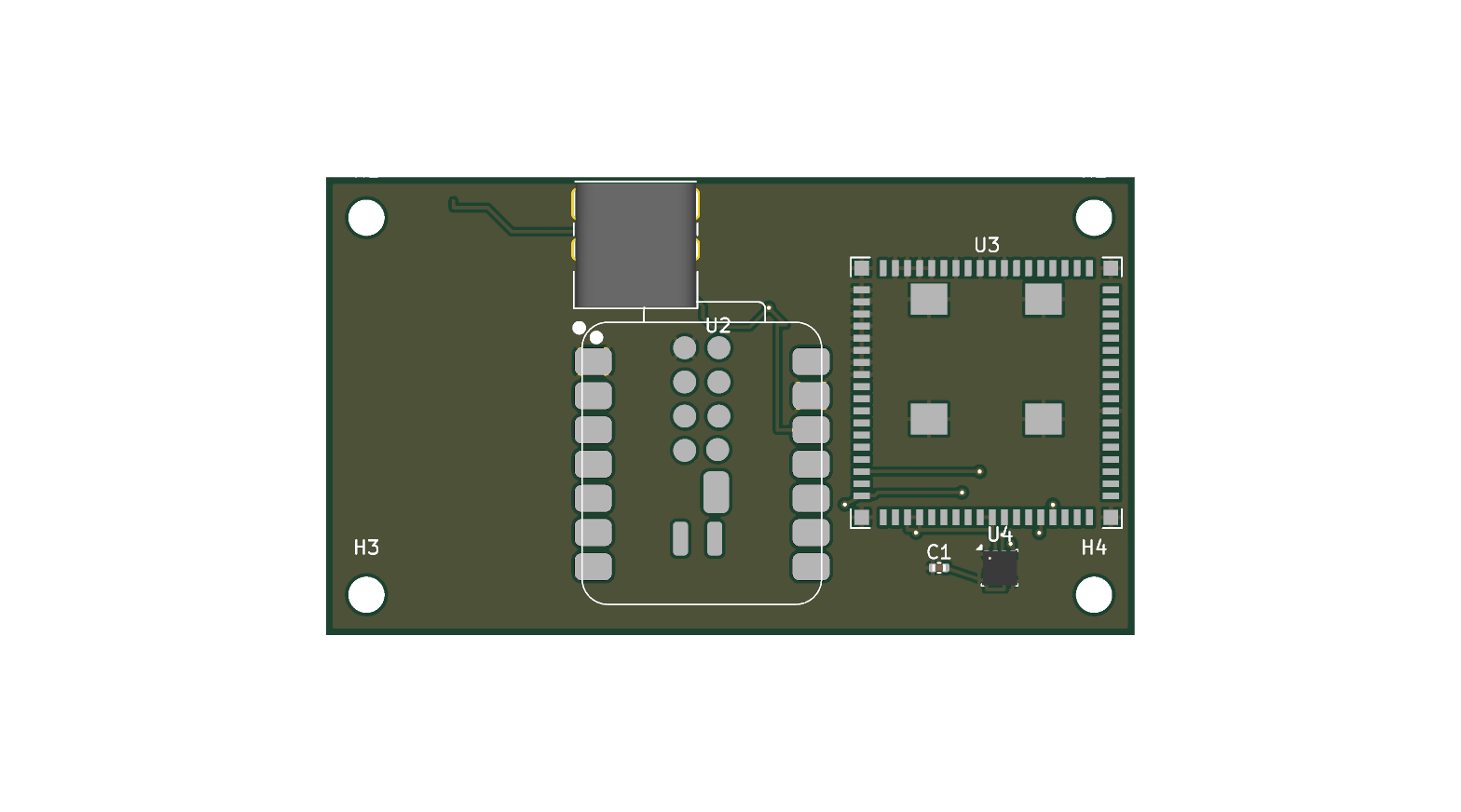

Chameleon mesh node, from the project README
From the project README

Main components on the Chameleon mesh node

XIAO-ESP32-C5-SMDWio-WM1110BME280

Chameleon mesh node bill of materials (BOM)

5 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-ESP32-C5-SMD
U2
1
Wio-WM1110
U3
1
BME280
U4
1
USB-C Power+Data
J1
1
100nF
C1

Chameleon mesh node design files

The KiCad project lives in the MetaStrawman/chameleon-mesh-node repository on GitHub; these links point at the commit this page was built from.

Chameleon mesh node: common questions

What microcontroller does the Chameleon mesh node use?

The Chameleon mesh node is built around the XIAO-ESP32-C5-SMD, from the ESP32 family.

How big is the Chameleon mesh node PCB?

The Chameleon mesh node measures 60 × 34 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Chameleon mesh node?

5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Chameleon mesh node design files?

From the MetaStrawman/chameleon-mesh-node repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Chameleon mesh node design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Chameleon mesh node without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
