About the KHEops70 PCB
KHEops70 is an open source STM32 PCB design by mgsg, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 285 × 94.6 mm, with 477 components from 35 distinct parts.
Its main chip is the STM32F303CBTX, from the STM32 family. Other key parts include the AMS1117-3.3, 74HC4067 and TPD4E05U06DQAR. By type, the board carries 229 capacitors, 88 resistors, 70 LEDs, 10 ICs, 3 transistors and 2 diodes.
It belongs with the keyboards, audio and displays & leds designs in this gallery.
From the project
Keyboard | Hall Effect | OrthoLinear | Programmable | Standard-sized

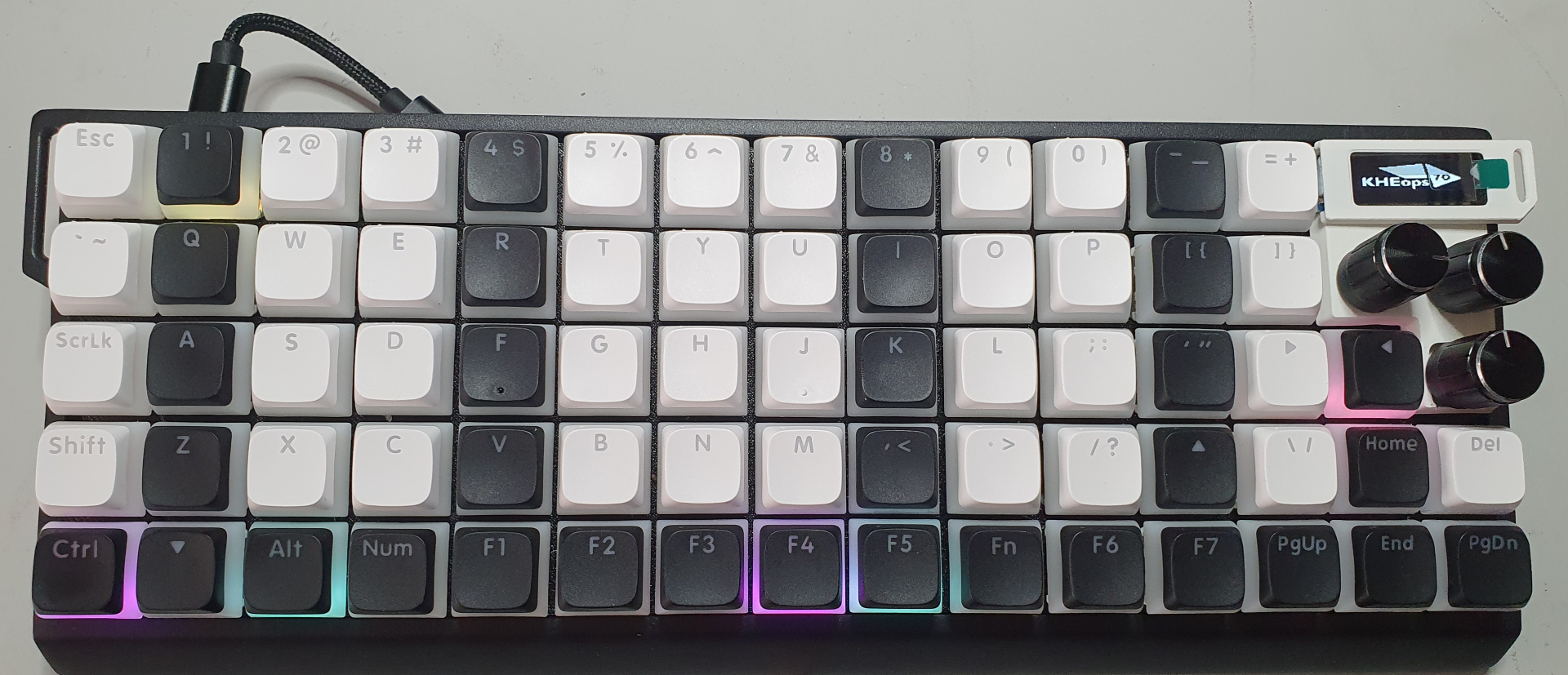

- 70 HE switches, 60% case, 13x5 + 5 keys + 1 encoder + 2 potentiometers in ortholinear arrangement. - All keys are 1u. Keycaps in uniform profile preferred (XDA, DSA...). - QMK Firmware compatibility. - QMK MIDI Support (Audio support buggy). - Compatibility with "standard" widely available 60% keyboard cases. - OLED display.
Design for PCBs can be found in the hardware folder.

Main components on the KHEops70
KHEops70 bill of materials (BOM)
477 components, 35 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | STM32F303CBTX STM32F303CBTx | LQFP-48_7x7mm_P0.5mm | U3 |
| 5 | 74HC4067 | TSSOP-24_4.4x7.8mm_P0.65mm | U4, U6, U7, U8, U9 |
| 1 | TPD4E05U06DQAR 74HC4067 Texas Instruments | TSSOP-24_4.4x7.8mm_P0.65mm | U5 |
| 2 | TPD4E05U06DQAR H5VU25U Texas Instruments | DFN2510 | U10, U11 |
| 3 | BSS138 | SOT-23 | Q1, Q2, Q3 |
| 1 | 8MHZ 8MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | R95 r95 | Buzzer_Murata_PKLCS1212E | BZ1 |
| 70 | SLSS49E-3 | SLSS49E-3 with MX holes | HL0, HL1, HL2, HL3, HL4, HL5, HL6, HL7 +62 |
| 1 | SW_SPST | SW_SPST_TL3342 | SW1 |
| 1 | SM04B-SRSS-TB JST | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | USB11 |
| 42 | MX_SK6812MINI-EA | SK 6812 MINI-EA | LED0, LED1, LED2, LED3, LED4, LED5, LED6, LED7 +34 |
| 28 | MX_SK6812MINI-EA | SK 6812 MINI-EA-ROT | LED13, LED14, LED15, LED16, LED17, LED18, LED19, LED20 +20 |
| 2 | 1N4148WS | D_SOD-323 | D1, D44 |
| 1 | 120R @ 100MHz | L_0805_2012Metric | FB2 |
| 2 | 10U 10u | C_1206_3216Metric | C3, C183 |
| 1 | 100U 100u | C_1206_3216Metric | C4 |
| 1 | 4U7 4u7 | C_0402_1005Metric | C5 |
| 4 | 100N 100n | C_0402_1005Metric | C6, C7, C8, C9 |
| 2 | 1u | C_0402_1005Metric | C10, C11 |
Show 15 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10P 10p | C_0402_1005Metric | C13, C14 |
| 217 | 100N 100n | C_0805_2012Metric | C15, C16, C17, C18, C19, C20, C21, C22 +209 |
| 1 | 1K5 1k5 | R_0805_2012Metric | R1 |
| 1 | 470R | R_0805_2012Metric | R2 |
| 2 | 1 | R_1206_3216Metric | R4, R5 |
| 72 | 10K 10k | R_0805_2012Metric | R6, R10, R11, R12, R13, R14, R15, R16 +64 |
| 1 | 1k | R_0805_2012Metric | R7 |
| 3 | 0 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R8, R99, R100 |
| 1 | 470 | R_0805_2012Metric | R9 |
| 1 | 330K 330k | R_0603_1608Metric | R91 |
| 1 | 1M | R_0603_1608Metric | R92 |
| 2 | 10K 10k | R_0603_1608Metric | R93, R98 |
| 1 | 100K 100k | R_0805_2012Metric | R95 |
| 1 | 100 | R_0805_2012Metric | R96 |
| 1 | 1k | R_0603_1608Metric | R97 |
KHEops70 design files
The KiCad project lives in the mgsg/KHEops70 repository on GitHub; these links point at the commit this page was built from.
KHEops70: common questions
What microcontroller does the KHEops70 use?
The KHEops70 is built around the STM32F303CBTX, from the STM32 family.
How big is the KHEops70 PCB?
The KHEops70 measures 285 × 94.6 mm, has 4 copper layers and is 1.61668 mm thick.
How many components are on the KHEops70?
477 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the KHEops70 design files?
From the mgsg/KHEops70 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the KHEops70 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mgsg chose for the repository.
Can I test firmware for the KHEops70 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
