Granola Summit

michaelswitzer·granola-summit·PCB/abc/granola-summit-abc.kicad_pcb

Granola Summit PCB layout, top view — open source RP2040/RP2350 board by michaelswitzer
Simulate this board

About the Granola Summit PCB

Granola Summit is an open source RP2040/RP2350 PCB design by michaelswitzer, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 211 × 125 mm, with 52 components from 19 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C5250992, C97521 and C5250994. By type, the board carries 19 switches, 17 capacitors, 6 resistors, 4 ICs, 3 connectors and 1 crystal.

It belongs with the keyboards designs in this gallery.

From the project

The Summit is a button box style arcade controller by Granola Arcade.

The Summit is a button box style arcade controller by Granola Arcade.

You can buy the Summit at https://granola.games

The .step file for the case is optimized for FDM 3D printers. I recommend PLA with at least 15% infill but you can use any material you wish. The case has designed break-away supports that you will remove after printing. It should already be aligned in the correct orientation.

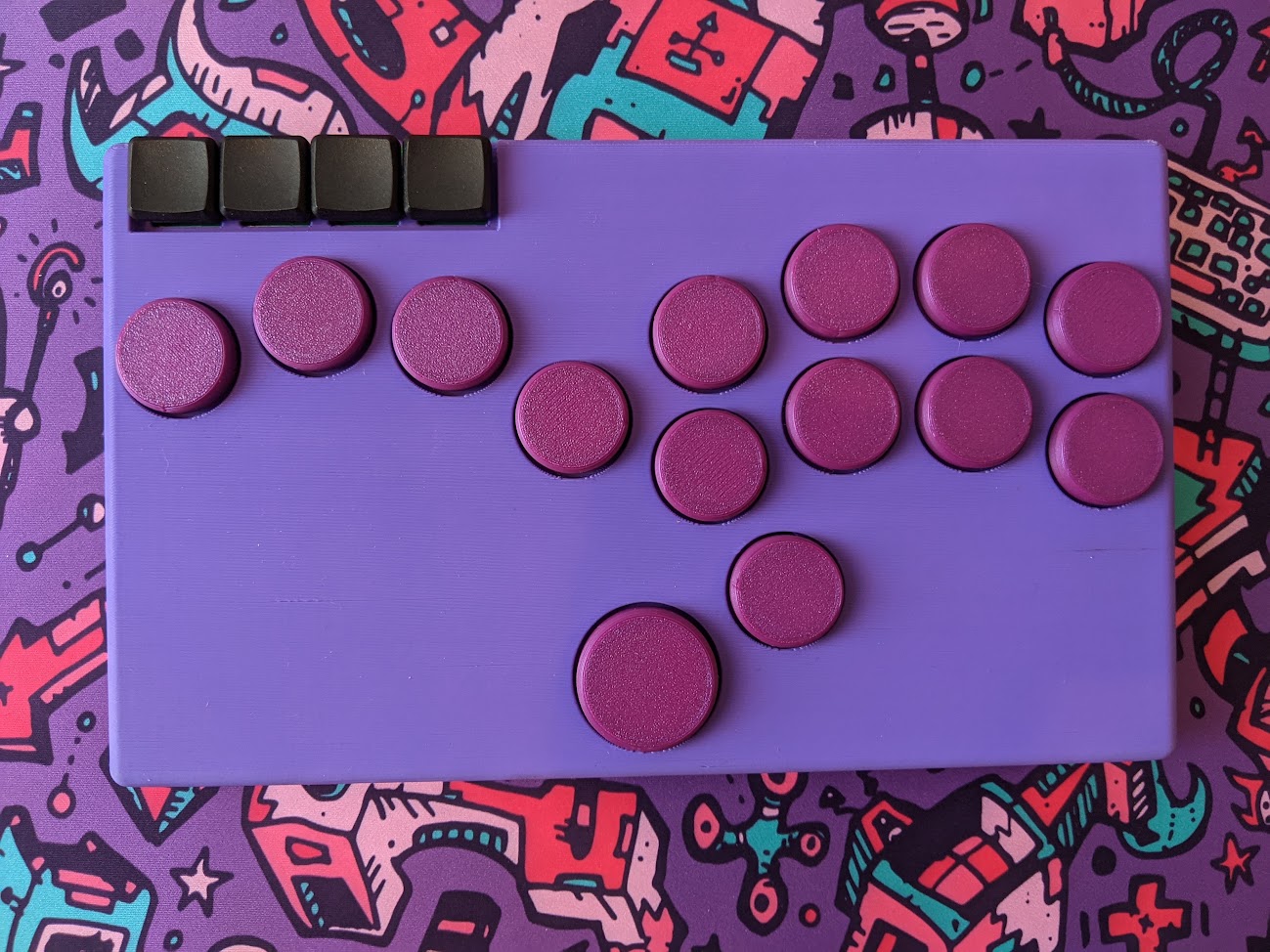

Granola Summit, from the project README
From the project README

Main components on the Granola Summit

C5250992C97521C2040C5250994

Granola Summit bill of materials (BOM)

52 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C5250992
AMS1117-3.3_SOT223
U1
1
C97521
W25Q128JVS
U2
1
C2040
RP2040
U3
1
C5250994
USBLC6-2SC6
U4
1
C9002
ABLS-12.000MHZ-B4-T
Y1
3
C431535
AudioJack3
J1, J2, J3
1
C318884
TS-1187A-B-A-B
SW1
4
C5333465
MX_Switch
SW2, SW3, SW4, SW5
13
C5333465
MX_Switch
SW6, SW7, SW8, SW10, SW11, SW12, SW13, SW14 +5
1
C5333465
MX_Switch
SW9
1
C165948
HRO-TYPE-C-31-M-12
USB1
1
C42591
USB_A
USB2
3
C83061
10u
C1, C2, C17
2
C147436
27p
C3, C4
10
C361203
100n
C5, C6, C7, C9, C11, C12, C13, C14 +2
2
C5137485
1u
C8, C10
2
C105637
1k
R1, R4
2
C2909343
27
R2, R3
2
C25905
5.1k
R5, R6

Granola Summit design files

The KiCad project lives in the michaelswitzer/granola-summit repository on GitHub; these links point at the commit this page was built from.

Granola Summit: common questions

What microcontroller does the Granola Summit use?

The Granola Summit is built around the C2040, from the RP2040/RP2350 family.

How big is the Granola Summit PCB?

The Granola Summit measures 211 × 125 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Granola Summit?

52 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Granola Summit design files?

From the michaelswitzer/granola-summit repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Granola Summit design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Granola Summit without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
