About the Candash PCB

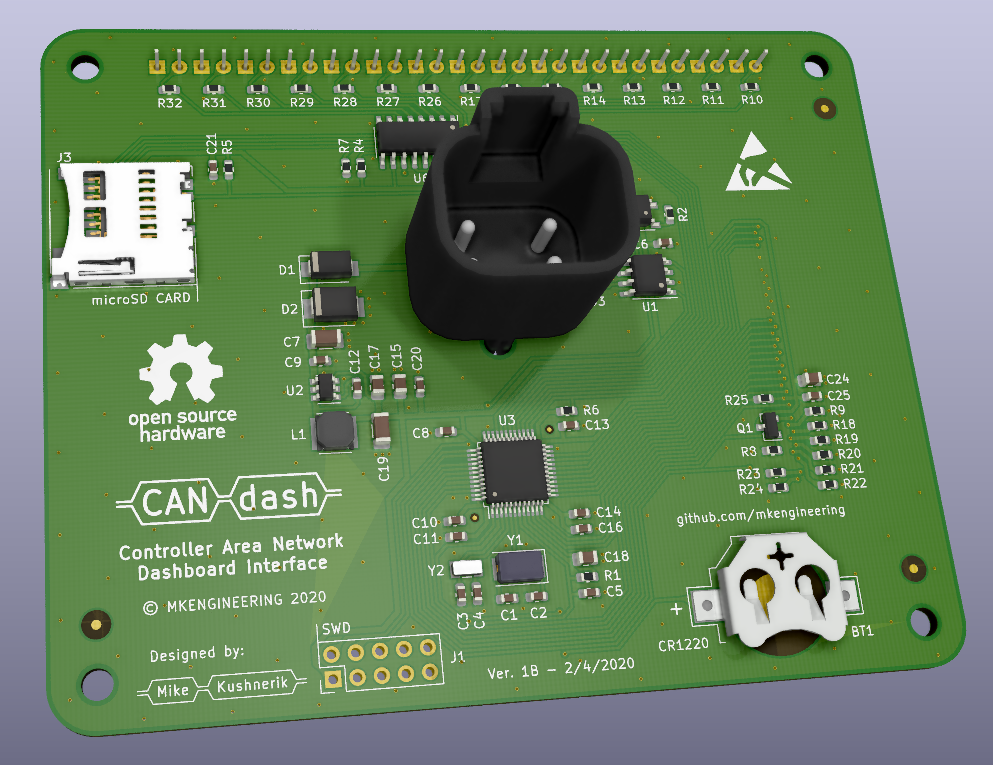

Candash is an open source STM32 PCB design by miekush, published on GitHub under the Custom license license. It is a 2-layer board measuring 100 × 80 mm, with 90 components from 27 distinct parts.
Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the SN65HVD230, LMR50410Y3F, TLP175A and 74HC595. By type, the board carries 32 resistors, 25 capacitors, 15 LEDs, 6 ICs, 3 connectors and 3 diodes.
From the project
CANDash - Arduino Compatible Controller Area Network Dashboard
Designed by Mike Kushnerik (MKE) in KiCad V5
MKE supports the open source hardware community by sharing hardware design files freely on GitHub!
Please support MKE by purchasing products on Tindie!
Designed by Mike Kushnerik for MKEngineering
All text above must be included in any redistribution!
Main components on the Candash
Candash bill of materials (BOM)
90 components, 27 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN65HVD230 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | LMR50410Y3F | SOT-23-6 | U2 |
| 1 | STM32F103C8T6 | LQFP-48_7x7mm_P0.5mm | U3 |
| 1 | TLP175A | MFSOP6-4_4.4x3.6mm_P1.27mm | U4 |
| 2 | 74HC595 | SOIC-16_3.9x9.9mm_P1.27mm | U5, U6 |
| 1 | AO3401A | SOT-23 | Q1 |
| 1 | 8 MHz | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y1 |
| 1 | 32.768 kHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y2 |
| 1 | SWD | PinHeader_2x05_P2.54mm_Vertical | J1 |
| 1 | AT04-4P | AT04-4P-BM03 | J2 |
| 1 | GCT_MEM2051-00-195-00-A_REVC | MEM2051-00-195-00-A | J3 |
| 1 | CR1220 | 3000TR | BT1 |
| 1 | Z400IT001 | Z400IT001 | DS9 |
| 15 | LED_Small | LED_D3.0mm | DS1, DS2, DS3, DS4, DS5, DS6, DS7, DS8 +7 |
| 1 | M1 | D_SMA | D1 |
| 1 | 42V | D_SMB | D2 |
| 1 | TVS | SOT-23 | D3 |
| 1 | 4.7uH | IFSC1515AHER4R7M01 | L1 |
| 4 | 22pF | C_0603_1608Metric | C1, C2, C3, C4 |
| 14 | 100nF | C_0603_1608Metric | C5, C6, C8, C9, C10, C11, C12, C13 +6 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2.2uF | C_1206_3216Metric | C7 |
| 4 | 10uF | C_0805_2012Metric | C15, C17, C18, C24 |
| 1 | 1uF | C_0603_1608Metric | C16 |
| 1 | 22uF | C_1206_3216Metric | C19 |
| 7 | 10K | R_0603_1608Metric | R1, R4, R5, R6, R7, R8, R25 |
| 17 | 100 | R_0603_1608Metric | R2, R3, R10, R11, R12, R13, R14, R15 +9 |
| 8 | 10 | R_0603_1608Metric | R9, R18, R19, R20, R21, R22, R23, R24 |
Candash design files
The KiCad project lives in the miekush/candash repository on GitHub; these links point at the commit this page was built from.
- LayoutCANDash 2.kicad_pcb
Candash: common questions
What microcontroller does the Candash use?
The Candash is built around the STM32F103C8T6, from the STM32 family.
How big is the Candash PCB?
The Candash measures 100 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Candash?
90 components, from 27 distinct parts. The full bill of materials is listed on this page.
Where can I download the Candash design files?
From the miekush/candash repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Candash design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Candash without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
