Kunji patol

mihranrazaa·Kunji-patol·KICAD/kunji-patol-kicad.kicad_pcb

About the Kunji patol PCB

Kunji patol is an open source RP2040/RP2350 PCB design by mihranrazaa, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 330.1 × 165 mm, with 174 components from 12 distinct parts.

Its main chip is the Raspberry_Pi_Pico, from the RP2040/RP2350 family. Other key parts include the KY-040. By type, the board carries 88 switches, 84 diodes and 2 ICs.

It belongs with the keyboards designs in this gallery.

From the project

I can't add the video on readme as it the file is big.. i have added it in the assets folder.. But here is the GDrive link Link

The files for the PCB and Schematics are available in the Kicad folder and gerber files are added in the Production folder..

The files for case and plate cover are available in CAD folder and in production folder, you can also but acrylic sheet for the transparent plate.

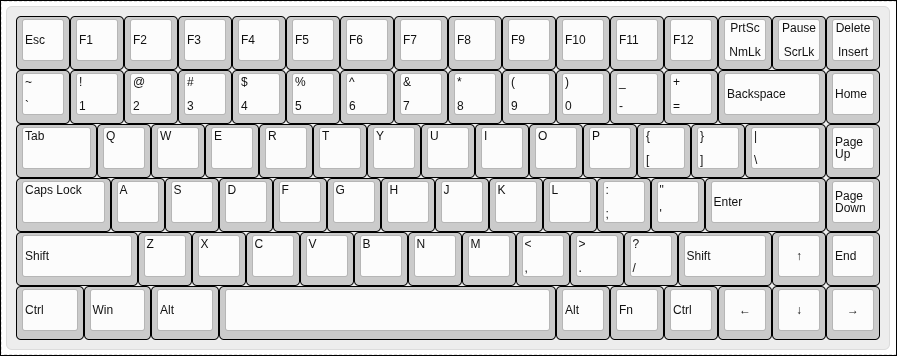

Kunji patol, from the project README — From the project README

Main components on the Kunji patol

KY-040 Raspberry_Pi_Pico

Kunji patol bill of materials (BOM)

174 components, 12 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	KY-040	KY-040-PORT	U1
1	Raspberry_Pi_Pico	Raspberry_Pi_Pico	U2
73	~	MX_PCB_1.00u	S1, S2, S3, S4, S5, S6, S7, S8 +65
1	~	MX_PCB_2.00u	S30
2	~	MX_PCB_1.50u	S32, S45
2	~	MX_PCB_1.75u	S47, S72
2	~	MX_PCB_2.25u	S59, S61
3	~	MX_PCB_1.25u	S75, S76, S77
1	~	MX_PCB_6.25u	S78
1	MX_stab	STAB_MX_P_6.25u	S85
3	MX_stab	STAB_MX_P_2u	S86, S87, S88
84	~	Diode_DO-35	D1, D2, D3, D4, D5, D6, D7, D8 +76

Kunji patol design files

The KiCad project lives in the mihranrazaa/Kunji-patol repository on GitHub; these links point at the commit this page was built from.

LayoutKICAD/kunji-patol-kicad.kicad_pcb
SchematicKICAD/kunji-patol-kicad.kicad_sch
BOMKICAD/production/bom.csv

Kunji patol: common questions

What microcontroller does the Kunji patol use?

The Kunji patol is built around the Raspberry_Pi_Pico, from the RP2040/RP2350 family.

How big is the Kunji patol PCB?

The Kunji patol measures 330.1 × 165 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kunji patol?

174 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kunji patol design files?

From the mihranrazaa/Kunji-patol repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Kunji patol design in my own project?

Yes, under the terms of its GPL-3.0 license, which mihranrazaa chose for the repository.

Can I test firmware for the Kunji patol without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
