Esphome rgbcct led controller expansion

mikelawrence·esphome-rgbcct-led-controller·pcb-expansion-rev-a/esphome-rgbcct-led-controller-expansion.kicad_pcb

Esphome rgbcct led controller expansion PCB layout, top view — open source board by mikelawrence
Simulate this board

About the Esphome rgbcct led controller expansion PCB

Esphome rgbcct led controller expansion is an open source PCB design by mikelawrence, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 41.5 × 20.5 mm, with 19 components from 8 distinct parts.

Other key parts include the ADS1015IDGSR and REF35300QDBVR. By type, the board carries 6 connectors, 5 capacitors, 4 resistors and 2 ICs.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

ESPHome RGBCCT LED Controller is a PCB design that support a 5-Channel LED arrangement with Red, Green, Blue, Warm White and Cool White LEDs.

This is a simple expansion board used to add both thermistor measurement and i2c expansion, mainly for off-board temperature and humidity sensors like SHTxxx devices. Rev A has a JST ZR connector for the off-board i2c temperature/humidity sensor. This PCB is also designed in KiCad. Fabrication and is again tuned toward JCLPCB. 100% hand-soldered.

Rev A**: Has has fabricated, assembled and tested. No issues.

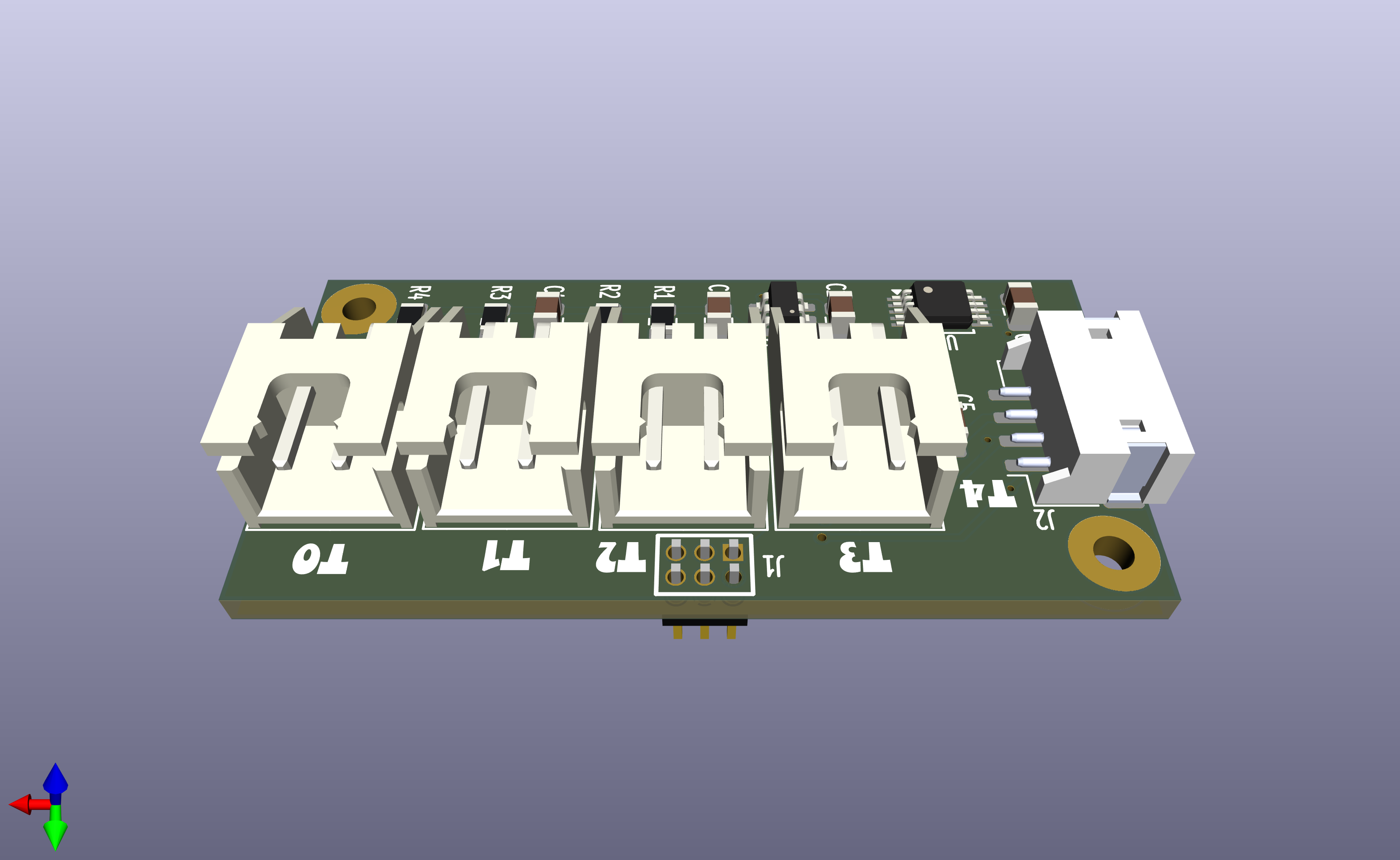

Esphome rgbcct led controller expansion, from the project README
From the project README

Main components on the Esphome rgbcct led controller expansion

ADS1015IDGSRREF35300QDBVR

Esphome rgbcct led controller expansion bill of materials (BOM)

19 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ADS1015IDGSR
ADS1015
Texas Instruments
U1
1
REF35300QDBVR
Texas Instruments
U2
1
FTS-103-01-L-D
~
Samtec
J1
1
S4B-ZR-SM4A-TF
Conn_01x04
JST
J2
4
S2B-XH-A(LF)(SN)
Conn_01x02
JST
J3, J4, J5, J6
2
~
MH1, MH2
5
CL21B474KAFNNNG
0.47uF
Samsung
C1, C2, C3, C4, C5
4
RT0805BRD0761K9L
61.9KΩ
YAGEO
R1, R2, R3, R4

Esphome rgbcct led controller expansion design files

The KiCad project lives in the mikelawrence/esphome-rgbcct-led-controller repository on GitHub; these links point at the commit this page was built from.

Esphome rgbcct led controller expansion: common questions

How big is the Esphome rgbcct led controller expansion PCB?

The Esphome rgbcct led controller expansion measures 41.5 × 20.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esphome rgbcct led controller expansion?

19 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esphome rgbcct led controller expansion design files?

From the mikelawrence/esphome-rgbcct-led-controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esphome rgbcct led controller expansion design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which mikelawrence chose for the repository.
