About the RPi-HAT-RGBW-LED-Controller

RPi-HAT-RGBW-LED-Controller is an open source PCB design by mikelawrence, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 56 mm, with 54 components from 24 distinct parts.

Other key parts include the AT24CS32-SSHM, PCA9685PW, OKI-78SR-5/1.5-W36H-C, LM3414MRX/NOPB and DS18B20U+. By type, the board carries 14 capacitors, 14 resistors, 8 ICs, 6 connectors, 5 diodes and 4 inductors.

It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.

From the project

This is a Raspberry Pi B+ HAT that supports four high power LEDs. Main application is an RGB Floodlight.

This PCB is designed using KiCad 5.0.0. This HAT is based on RPiHatTemplate by XESS Corp.

Note: The LM3414 parts have an exposed pad on the bottom which requires either a reflow oven or hot air to solder properly.

Note: This HAT does not have the camera flex slot or the display flex cutout so technically cannot be called a HAT.

The Raspberry Pi can be safely back-powered by this HAT because the Ideal Diode circuit provides protection to both the Raspberry Pi and this HAT when the Raspberry Pi is powered by another source. Maximum Raspberry Pi power is 1.5A. Usually the Raspberry Pi will…

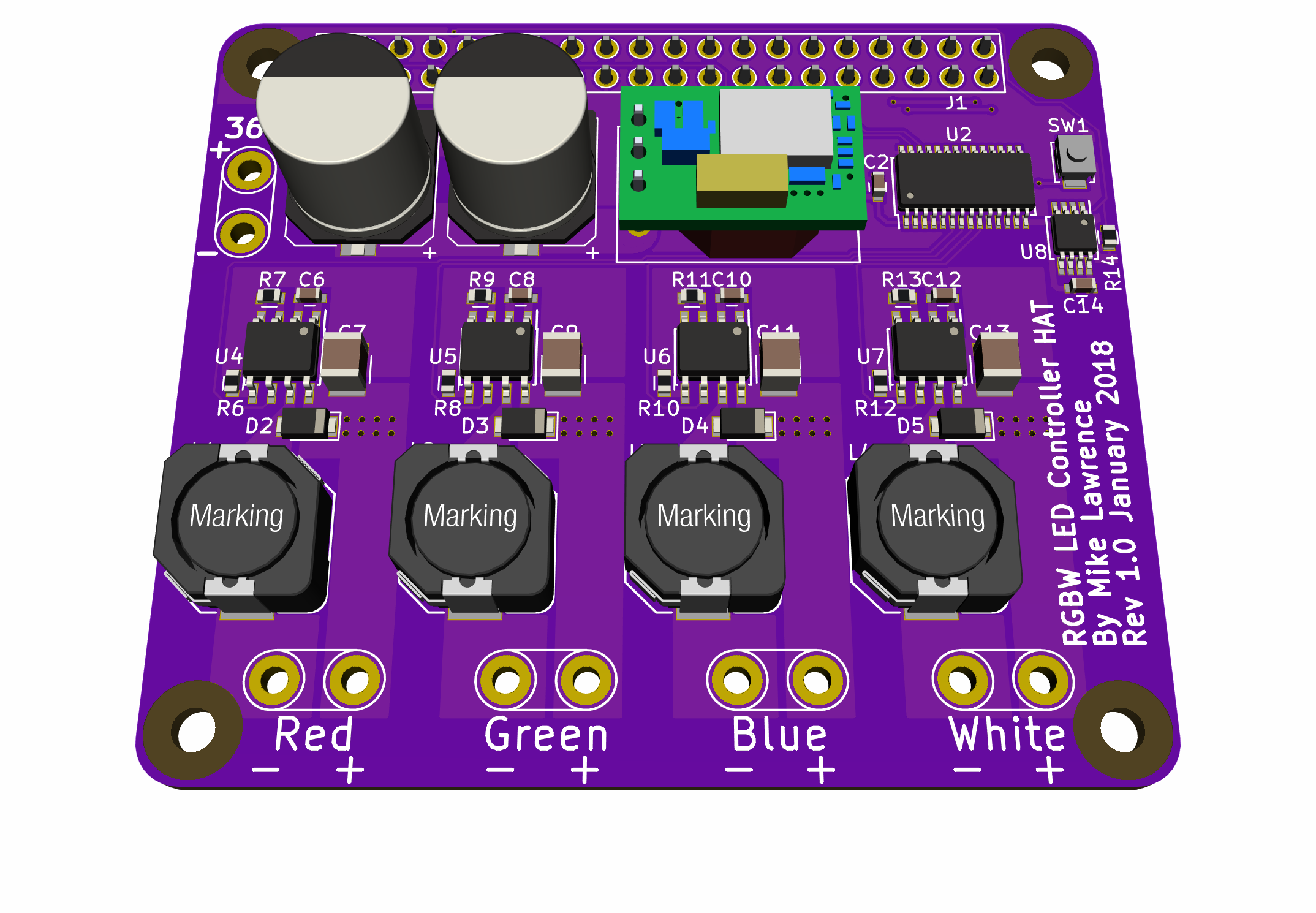

RPi-HAT-RGBW-LED-Controller, from the project README
From the project README

Main components on the RPi-HAT-RGBW-LED-Controller

AT24CS32-SSHMPCA9685PWOKI-78SR-5/1.5-W36H-CLM3414MRX/NOPBDS18B20U+

RPi-HAT-RGBW-LED-Controller bill of materials (BOM)

54 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AT24CS32-SSHM
AT24CS32
Atmel
U1
1
PCA9685PW
PCA9685
NXP
U2
1
OKI-78SR-5/1.5-W36H-C
OKI-78SR-5
Murata
U3
4
LM3414MRX/NOPB
LM3414
TI
U4, U5, U6, U7
1
DS18B20U+
DS18B20U
Maxim
U8
1
DMG2305UX-7
DMG2305UX
Diodes Inc
Q1
1
BCM857BS-7-F
BCM857BS
Diodes Inc
Q2
1
2222
RPi_GPIO
Adafruit
J1
5
CONN_01X02_FEMALE
Conn_01x02_Female
J2, J3, J4, J5, J6
1
B3U-1000P
Write
Omron
SW1
1
DF206ST-G
D_Bridge_+-AA
Comchip Tech
D1
4
DFLS2100-7
DFLS2100
Diodes Inc
D2, D3, D4, D5
4
7447714101
100uH
Wurth
L1, L2, L3, L4
3
GCJ188R71E104KA2D
0.1uF
Murata
C1, C2, C14
2
EEE-FT1H331GP
330uF
Panasonic
C3, C4
5
GCJ188R71E105KA01D
1uF
Murata
C5, C6, C8, C10, C12
4
GCJ32DR72A225KA01L
2.2uF
Murata
C7, C9, C11, C13
1
ERJ-3EKF1001V
1k
Panasonic
R1
2
ERJ-3EKF3901V
3.9k
Panasonic
R2, R3
1
ERJ-3EKF1002V
10k
Panasonic
R4
Show 4 more
QtyPartRefs
1
ERJ-3EKF4702V
47k
Panasonic
R5
4
ERJ-3EKF4022V
40.2k
Panasonic
R6, R8, R10, R12
4
ERJ-3EKF5761V
5.76k
Panasonic
R7, R9, R11, R13
1
ERJ-3EKF4701V
4.7k
Panasonic
R14

RPi-HAT-RGBW-LED-Controller design files

The KiCad project lives in the mikelawrence/RPi-HAT-RGBW-LED-Controller repository on GitHub; these links point at the commit this page was built from.

RPi-HAT-RGBW-LED-Controller: common questions

How big is the RPi-HAT-RGBW-LED-Controller?

The RPi-HAT-RGBW-LED-Controller measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RPi-HAT-RGBW-LED-Controller?

54 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RPi-HAT-RGBW-LED-Controller design files?

From the mikelawrence/RPi-HAT-RGBW-LED-Controller repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the RPi-HAT-RGBW-LED-Controller design in my own project?

Yes, under the terms of its MIT license, which mikelawrence chose for the repository.
