Quectel-BG95-LPWA-Module
About the Quectel-BG95-LPWA-Module
Quectel-BG95-LPWA-Module is an open source PCB design by Millisman, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 54.3 × 59 mm, with 87 components from 21 distinct parts.
Other key parts include the BG95, MCP1700-3302E_SOT23 and TXB0104PW. By type, the board carries 34 capacitors, 28 resistors, 6 LEDs, 5 transistors, 4 connectors and 3 ICs.
It belongs with the rf & radio and power & battery designs in this gallery.
From the project

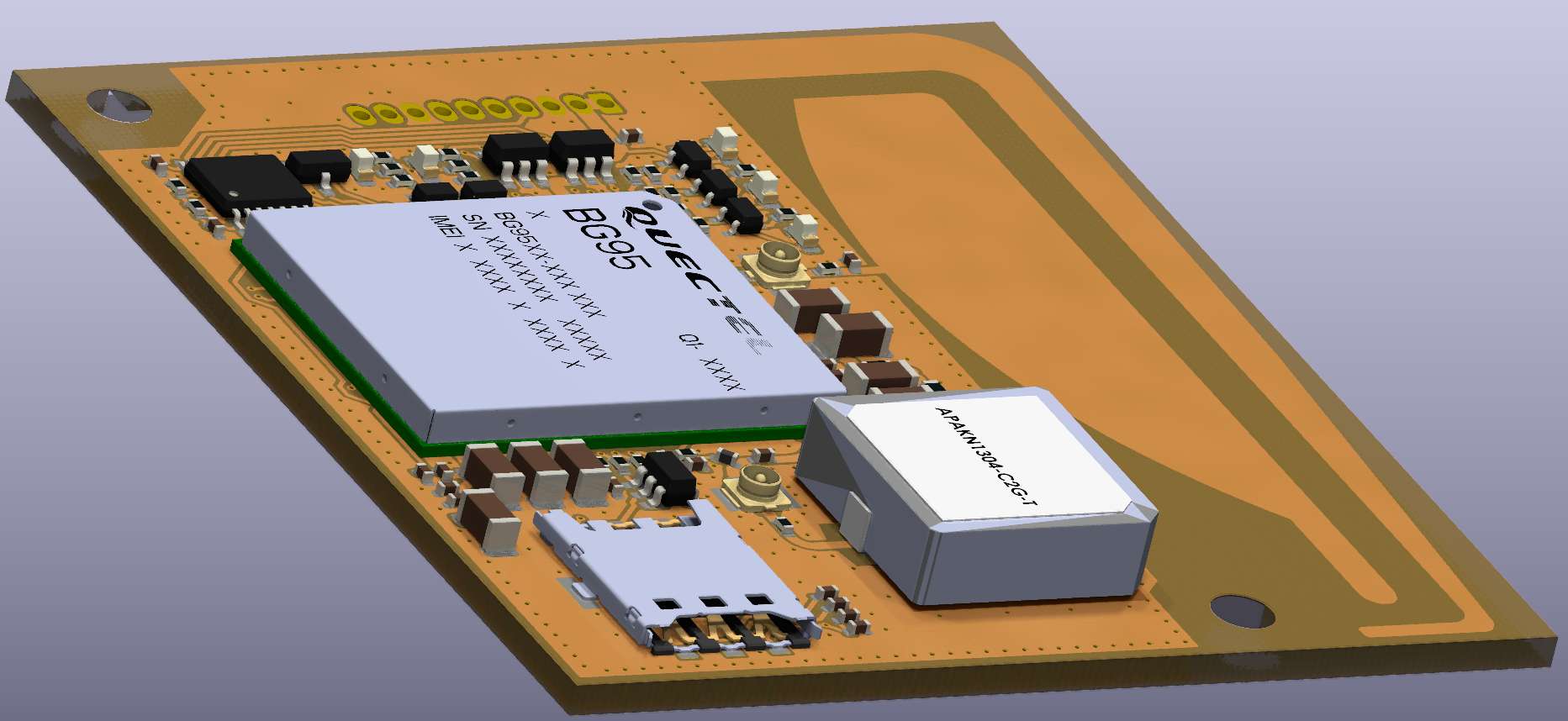

Quectel BG95 LPWA Module board with integrated GPS & GSM
Main components on the Quectel-BG95-LPWA-Module
Quectel-BG95-LPWA-Module bill of materials (BOM)
87 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BG95 | XCVR_BG95 | U1 |
| 1 | MCP1700-3302E_SOT23 | SOT-23 | U2 |
| 1 | TXB0104PW | TSSOP-14_4.4x5mm_P0.65mm | U3 |
| 2 | BSS214NW | SOT-323_SC-70 | Q1, Q2 |
| 3 | LBC817 | SOT-323_SC-70 | Q3, Q4, Q5 |
| 1 | Conn_01x10 | Wuerth_WR-WTB_64801011622_1x10_P1.50mm_Vertical | J1 |
| 1 | SIM8051-6-0-14-00-X-REVD | GCT_SIM8051-6-0-14-00-X-REVD | J2 |
| 2 | CONUFL001-SMD-T | LINX_CONUFL001-SMD-T | J3, J4 |
| 1 | APAKN1304-C2G-T | XCVR_APAKN1304-C2G-T | E1 |
| 6 | LED_Small | LED_0603_1608Metric | NETLIGHT1, POWER1, POWSAVE2, POW_KEY1, RST_KEY1, STATUS1 |
| 3 | ESDA6V1-5SC6 | SOT-23-6 | D1, D2, D3 |
| 2 | 100/100MHz | R_0603_1608Metric | FB1, FB2 |
| 1 | 47nH | L_0402_1005Metric | L1 |
| 18 | 33pF | C_0402_1005Metric | C1, C2, C9, C11, C12, C13, C19, C20 +10 |
| 7 | 100n | C_0402_1005Metric | C3, C10, C14, C26, C28, C32, C37 |
| 8 | 47uF 10V | C_1206_3216Metric | C4, C5, C6, C7, C15, C16, C17, C18 |
| 1 | DNP | C_0402_1005Metric | C8 |
| 10 | 0 | R_0402_1005Metric | R1, R2, R17, R18, R19, R20, R21, R22 +2 |
| 5 | 4.7k | R_0402_1005Metric | R3, R5, R12, R15, R27 |
| 7 | 10k | R_0402_1005Metric | R4, R6, R7, R10, R13, R24, R25 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | 120k | R_0402_1005Metric | R8, R9, R11, R14, R16, R26 |
Quectel-BG95-LPWA-Module design files
The KiCad project lives in the Millisman/Quectel-BG95-LPWA-Module repository on GitHub; these links point at the commit this page was built from.
- Layoutnet_bms_GSMM.kicad_pcb
- Schematicnet_bms_GSMM.kicad_sch
- BOMBOM/net_bms_GSMM_1.csv
Quectel-BG95-LPWA-Module: common questions
How big is the Quectel-BG95-LPWA-Module?
The Quectel-BG95-LPWA-Module measures 54.3 × 59 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Quectel-BG95-LPWA-Module?
87 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Quectel-BG95-LPWA-Module design files?
From the Millisman/Quectel-BG95-LPWA-Module repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Quectel-BG95-LPWA-Module design in my own project?
Yes, under the terms of its Apache-2.0 license, which Millisman chose for the repository.
