Basic STM32 Dev Board

MILOUDIAS·Basic_STM32_Dev_Board

Basic STM32 Dev Board layout, top view — open source STM32 board by MILOUDIAS

About the Basic STM32 Dev Board

Basic STM32 Dev Board is an open source STM32 PCB design by MILOUDIAS, published on GitHub under the LGPL-2.1 license. It is a 4-layer board measuring 59.7 × 45 mm, with 57 components from 38 distinct parts.

Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the MP2303ADN and USBLC6-2SC6. By type, the board carries 20 capacitors, 19 resistors, 5 connectors, 3 ICs, 3 diodes and 3 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

The Project is about an STM32 based development board used mainly for educative purposes and prototyping designed in Kicad 8

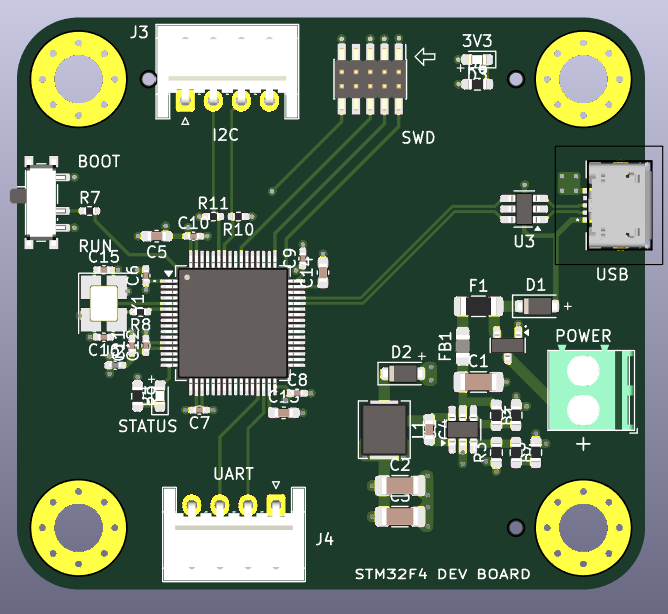

Basic STM32 Dev Board, from the project README
From the project README

Main components on the Basic STM32 Dev Board

STM32F405RGT6MP2303ADNUSBLC6-2SC6

Basic STM32 Dev Board bill of materials (BOM)

57 components, 38 distinct parts.

QtyPartRefs
1
STM32F405RGT6
U1
1
MP2303ADN
U2
1
USBLC6-2SC6
U3
1
AO3401A
Q1
1
16MHz
Y1
1
Screw_Terminal_01x02
J1
1
USB_B_Micro
J2
2
Conn_01x04
J3, J4
1
Conn_ARM_JTAG_SWD_10
J5
1
500mA
F1
1
SW_SPDT
SW1
1
D_Schottky_Small
D1
1
BLUE
D2
1
LED_Small
D3
1
600 @ 600MHz
FB1
1
39n
L1
1
15u
L2
2
2u2
C1, C3
1
4u7
C2
5
100n
C4, C5, C6, C7, C8
Show 18 more
QtyPartRefs
2
12p
C9, C11
1
1u
C10
2
10n
C12, C17
1
4n7
C13
1
0.1u
C14
2
10u
C15, C16
2
22u
C18, C20
1
5n
C19
1
1k5
R1
2
10k
R2, R14
2
4k7
R3, R7
1
100k
R4
1
68k
R5
1
47
R6
1
7k5
R8
8
22
R9, R10, R11, R12, R15, R16, R17, R18
1
31k25
R13
1
1k
R19

Basic STM32 Dev Board design files

The KiCad project lives in the MILOUDIAS/Basic_STM32_Dev_Board repository on GitHub; these links point at the commit this page was built from.

Basic STM32 Dev Board: common questions

What microcontroller does the Basic STM32 Dev Board use?

The Basic STM32 Dev Board is built around the STM32F405RGT6, from the STM32 family.

How big is the Basic STM32 Dev Board?

The Basic STM32 Dev Board measures 59.7 × 45 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Basic STM32 Dev Board?

57 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the Basic STM32 Dev Board design files?

From the MILOUDIAS/Basic_STM32_Dev_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Basic STM32 Dev Board design in my own project?

Yes, under the terms of its LGPL-2.1 license, which MILOUDIAS chose for the repository.

Can I test firmware for the Basic STM32 Dev Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
