WiFi Radio Project

Minall13·WiFi_Radio_Project·Hardware/Internet_Radio.kicad_pcb

WiFi Radio Project PCB layout, top view — open source ESP32 board by Minall13
Simulate this board

About the WiFi Radio Project PCB

WiFi Radio Project is an open source ESP32 PCB design by Minall13, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 111 × 69 mm, with 9 components from 7 distinct parts.

Its main chip is the ESP32-S3-DevKitC, from the ESP32 family. Other key parts include the MY_MAX98357A. By type, the board carries 4 connectors, 3 ICs and 2 resistors.

It belongs with the iot & wireless, audio and rf & radio designs in this gallery.

From the project

ESP32-S3 Wi-Fi internet radio with touchscreen UI, dual-mono I²S audio, custom PCB and 3D-printable enclosure.

A standalone touchscreen Internet radio built around the ESP32-S3, with a curated UK station library, live programme metadata, custom carrier PCB and a fully 3D-printed enclosure.

The Wi-Fi Radio Project was developed from an initial ESP32 prototype into a complete self-contained radio. The hardware, firmware, user interface, station catalogue, artwork pipeline, PCB and enclosure have all been developed specifically for the project.

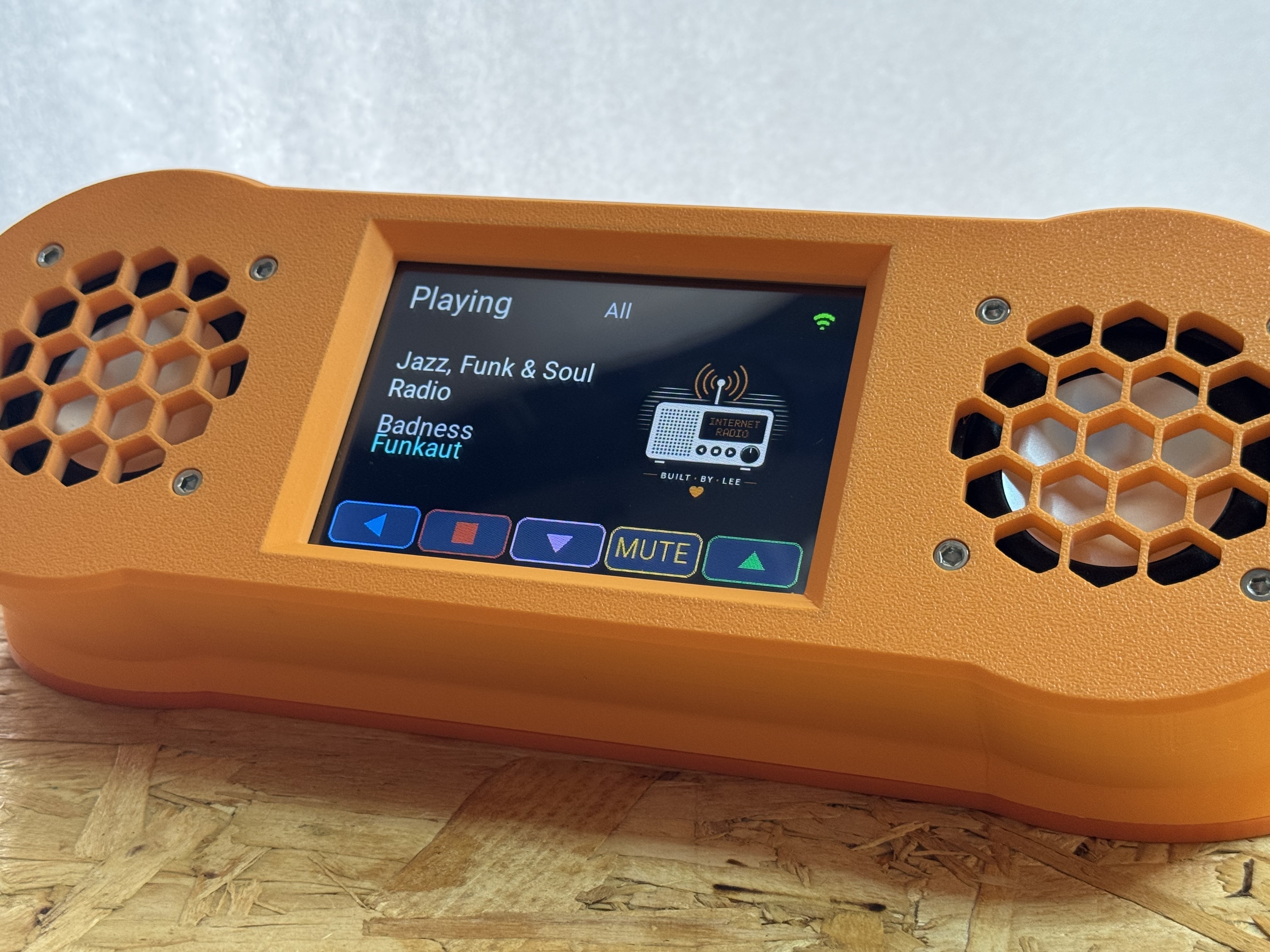

WiFi Radio Project, from the project README
From the project README

Main components on the WiFi Radio Project

ESP32-S3-DevKitCMY_MAX98357A

WiFi Radio Project bill of materials (BOM)

9 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-DevKitC
U1
2
MY_MAX98357A
U3, U4
1
TFT_4_TOUCH_SPI_480x320
J1
1
B6B-PH-K-S
USB PANEL
J2
1
B4B-XH-A
USB ESP32
J4
1
B2B-XH-A
POWER SW
J5
2
5.1K
5K1
R1, R2

WiFi Radio Project design files

The KiCad project lives in the Minall13/WiFi_Radio_Project repository on GitHub; these links point at the commit this page was built from.

WiFi Radio Project: common questions

What microcontroller does the WiFi Radio Project use?

The WiFi Radio Project is built around the ESP32-S3-DevKitC, from the ESP32 family.

How big is the WiFi Radio Project PCB?

The WiFi Radio Project measures 111 × 69 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WiFi Radio Project?

9 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the WiFi Radio Project design files?

From the Minall13/WiFi_Radio_Project repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the WiFi Radio Project design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the WiFi Radio Project without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
