Overdrive-Guitar-Pedal
About the Overdrive-Guitar-Pedal PCB
Overdrive-Guitar-Pedal is an open source PCB design by minjii1079, published on GitHub. It is a board, with 22 components from 15 distinct parts.
Other key parts include the TL072. By type, the board carries 7 capacitors, 7 resistors, 4 diodes and 1 IC.
It belongs with the audio, robotics & motion and dev boards & breakouts designs in this gallery.
From the project
Designing and building a fully functional OD pedal, using Multisim + breadboarding for creating and testing schematics and custom PCBs + CNC for the final build.
Main components on the Overdrive-Guitar-Pedal
Overdrive-Guitar-Pedal bill of materials (BOM)
22 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL072 | DIP-8_W7.62mm | U1 |
| 1 | 10kR_Potentiometer | Potentiometer_Alps_RK163_Single_Horizontal | RV1 |
| 2 | 100kR_Potentiometer | Potentiometer_Alps_RK163_Single_Horizontal | RV2, RV3 |
| 2 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2 |
| 1 | 1N4001 | D_DO-41_SOD81_P10.16mm_Horizontal | D3 |
| 1 | LED | D4 | |
| 2 | 220nC | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | C1, C2 |
| 1 | 47nC | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | C3 |
| 3 | 47uC_Polarized | C_Radial_D5.0mm_H7.0mm_P2.00mm | C4, C5, C6 |
| 1 | 100uF | C7 | |
| 3 | 10kR | R_Axial_DIN0207_L6.3mm_D2.5mm_P5.08mm_Vertical | R1, R6, R7 |
| 1 | 1MR | R_Axial_DIN0207_L6.3mm_D2.5mm_P5.08mm_Vertical | R2 |
| 1 | 1kR | R_Axial_DIN0207_L6.3mm_D2.5mm_P5.08mm_Vertical | R3 |
| 1 | 100R | R4 | |
| 1 | 4.7K | R5 |
Overdrive-Guitar-Pedal design files
The KiCad project lives in the minjii1079/Overdrive-Guitar-Pedal repository on GitHub; these links point at the commit this page was built from.

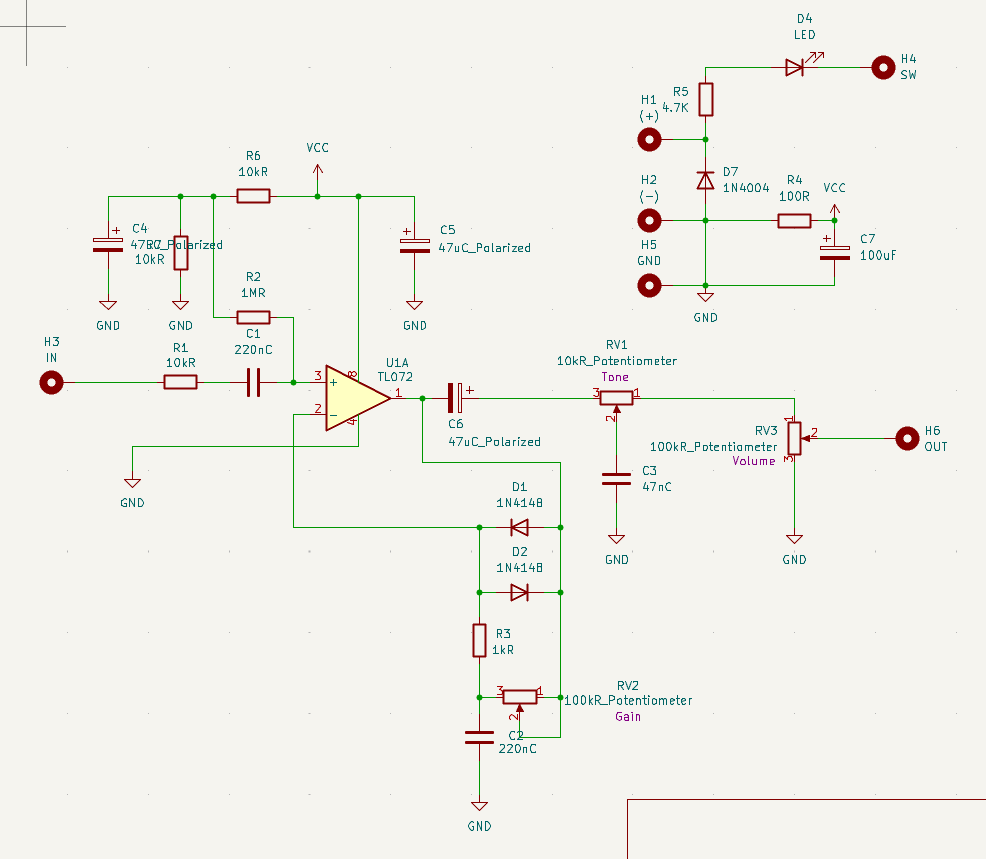

- SchematicPedal.kicad_sch
Overdrive-Guitar-Pedal: common questions
How many components are on the Overdrive-Guitar-Pedal?
22 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Overdrive-Guitar-Pedal design files?
From the minjii1079/Overdrive-Guitar-Pedal repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Overdrive-Guitar-Pedal design in my own project?
The repository has no license, so all rights stay with minjii1079. Use it as a reference, and ask the author before reusing the design.
