SmartGuard-Raspberry-Pi-Pico-W

About the SmartGuard-Raspberry-Pi-Pico-W PCB

SmartGuard-Raspberry-Pi-Pico-W is an open source RP2040/RP2350 PCB design by MirceaAndrei, published on GitHub. It is a board, with 18 components from 15 distinct parts.

Its main chip is the SC0918, from the RP2040/RP2350 family. Other key parts include the I2C MODULE. By type, the board carries 7 diodes, 4 switches, 2 resistors, 1 IC, 1 module and 1 buzzer.

It belongs with the displays & leds designs in this gallery.

From the project

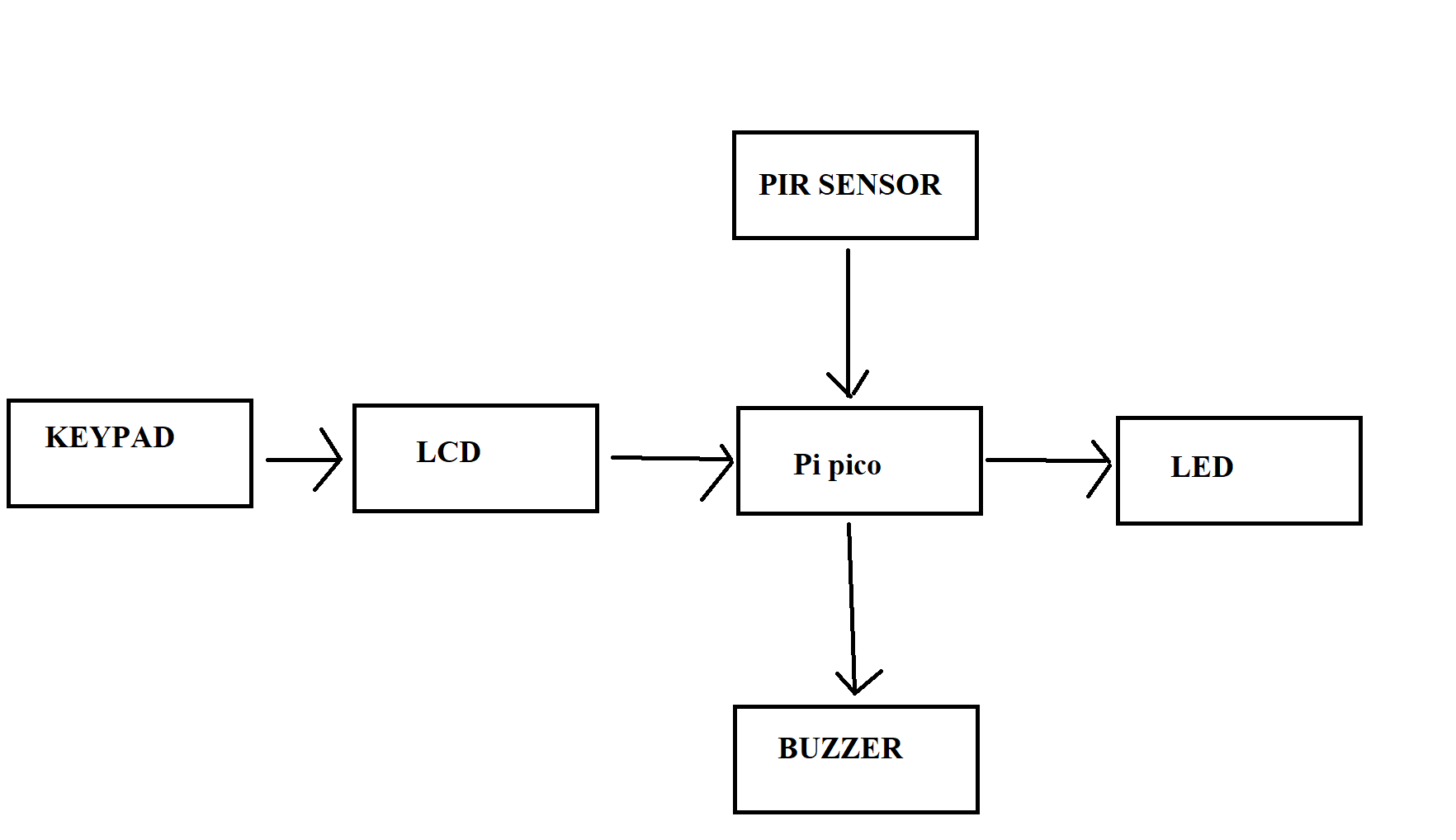

Raspberry Pi Pico W-powered Smart Burglar Alarm System with Multi-Sensor Detection.

Raspberry Pi Pico W-powered Smart Burglar Alarm System with Multi-Sensor Detection.

This project provides an opportunity to develop a smart alarm system tailored to modern security requirements. It offers a practical and efficient solution to detect intruders with advanced technology. Its compact, user-friendly design allows for seamless implementation in a wide range of environments, providing enhanced safety and peace of mind. Moreover,it has user-friendly interface where you can set custom security keys

Main components on the SmartGuard-Raspberry-Pi-Pico-W

I2C MODULESC0918

SmartGuard-Raspberry-Pi-Pico-W bill of materials (BOM)

18 components, 15 distinct parts.

QtyPartRefs
1
I2C MODULE
U1
1
SC0918
A1
1
Buzzer
BZ1
1
LCD 16X02
DS1
1
PIR_Motion_Sensor
PIR1
1
1
SW1
1
2
SW2
1
3
SW3
1
4
SW4
1
~
D1
3
1N4148WT
D2, D3, D4
1
RED LED
D5
1
BLUE LED
D6
1
GREEN LED
D7
2
REZISTOR
R1, R2

SmartGuard-Raspberry-Pi-Pico-W design files

The KiCad project lives in the MirceaAndrei/SmartGuard-Raspberry-Pi-Pico-W repository on GitHub; these links point at the commit this page was built from.

SmartGuard-Raspberry-Pi-Pico-W: common questions

What microcontroller does the SmartGuard-Raspberry-Pi-Pico-W use?

The SmartGuard-Raspberry-Pi-Pico-W is built around the SC0918, from the RP2040/RP2350 family.

How many components are on the SmartGuard-Raspberry-Pi-Pico-W?

18 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the SmartGuard-Raspberry-Pi-Pico-W design files?

From the MirceaAndrei/SmartGuard-Raspberry-Pi-Pico-W repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the SmartGuard-Raspberry-Pi-Pico-W design in my own project?

The repository has no license, so all rights stay with MirceaAndrei. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the SmartGuard-Raspberry-Pi-Pico-W without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
