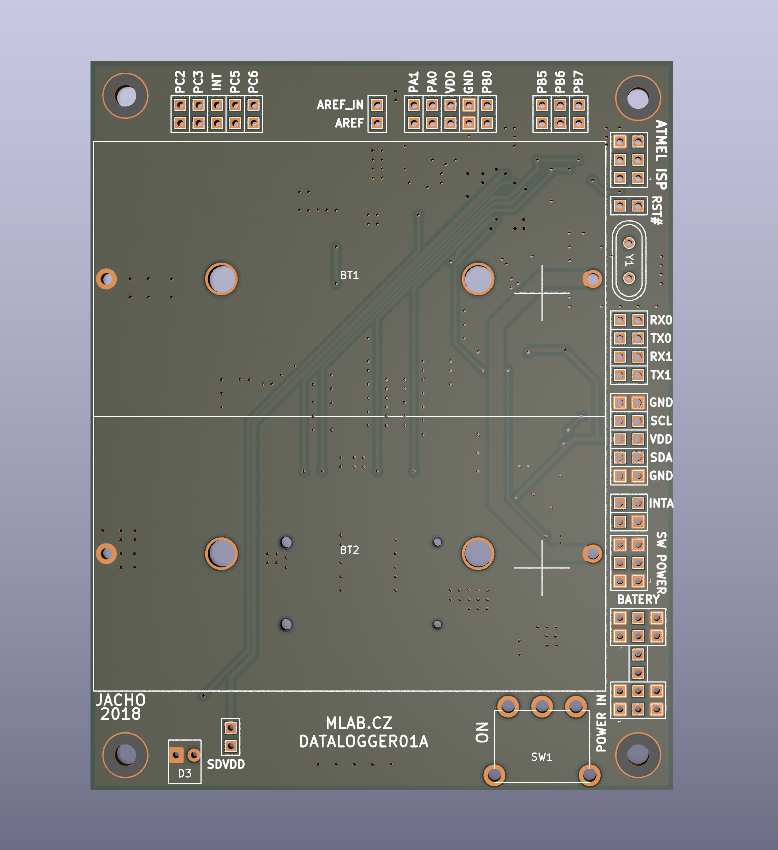

DATALOGGER01 PCB layout, top view — open source AVR/Arduino board by mlab-modules
Simulate this board

About the DATALOGGER01 PCB

DATALOGGER01 is an open source AVR/Arduino PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 80.8 × 101.1 mm, with 87 components from 34 distinct parts.

Its main chip is the ATMEGA1284P-AU, from the AVR/Arduino family. Other key parts include the ISL21080CIH320Z-TK, TPS22965-Q1, PCF85263A, LM4041CIM3-1.2(neosazovat) and AT24CS64-SSHM. By type, the board carries 34 connectors, 22 capacitors, 14 resistors, 6 ICs, 3 battery holders and 2 crystals.

It belongs with the power & battery designs in this gallery.

From the project

Universal Arduino based data logger to SDcard.

The DATALOGGER01 is a versatile electronic module designed by MLAB, containing an ATmega1284p processor. The module is programmable in the Arduino IDE and compatible with a variety of development environments and programming languages.

One of the significant features of this module is an SD card slot, a convenient provision for data logging from the processor. With a built-in battery holder, the module ensures uninterrupted operation without reliance on an external power supply.

DATALOGGER01, from the project README
