GH4PIN01

mlab-modules·GH4PIN01·hw/sch_pcb/GH4PIN01.kicad_pcb

GH4PIN01 PCB layout, top view — open source board by mlab-modules

About the GH4PIN01 PCB

GH4PIN01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 19.8 × 40.1 mm, with 5 components from 2 distinct parts.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

This 4-pin module connects JST-GH connectors, often used in Pixhawk drones, to standard pin headers, making it easier to build custom electronics and use I2C or CAN bus communication.

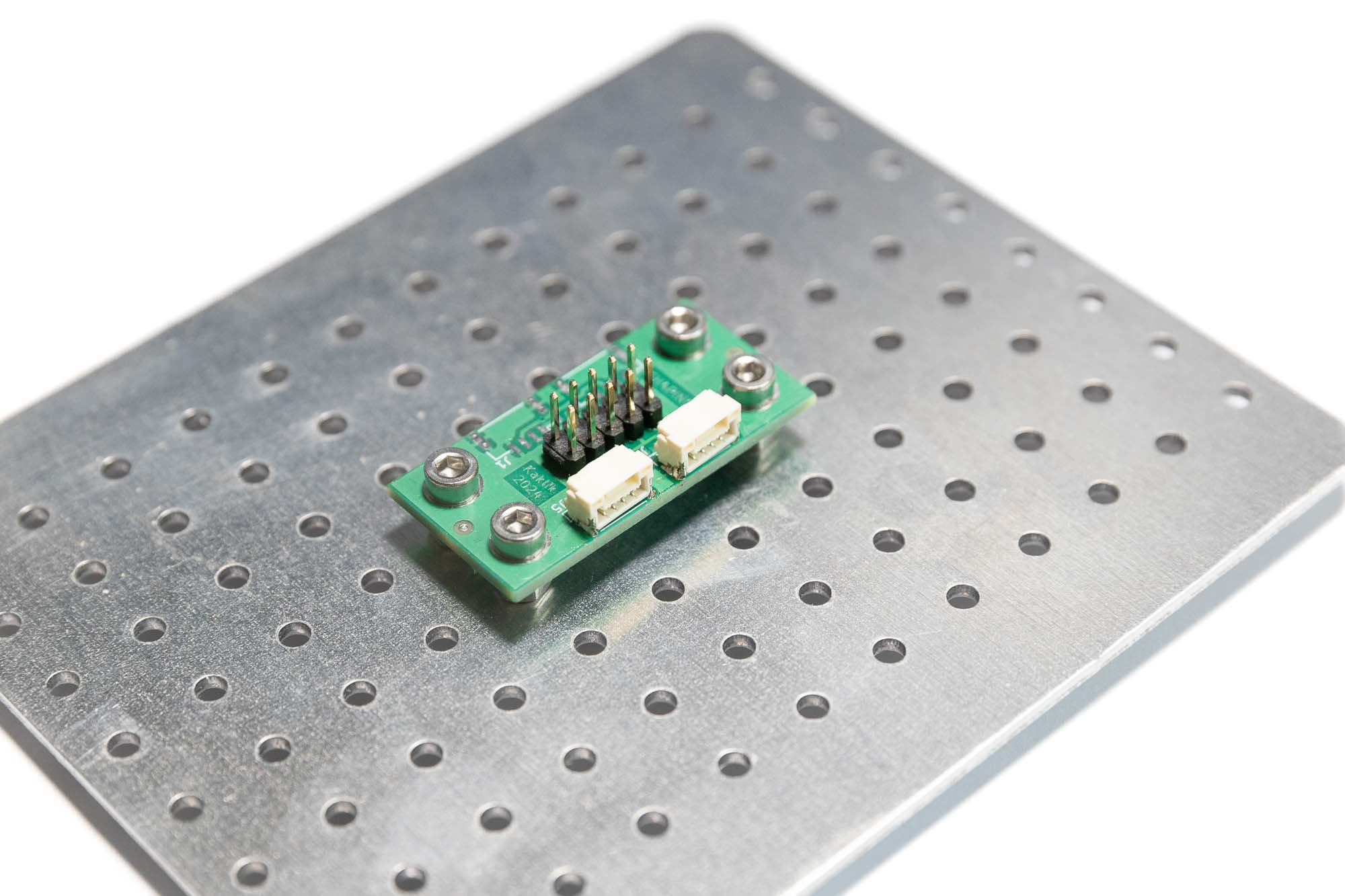

GH4PIN01, from the project README
From the project README

GH4PIN01 bill of materials (BOM)

5 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
SM04B-GHS-TB
J1, J2, J4, J5
1
HEADER_2X05_PARALLEL
HEADER_2x05_PARALLEL
J3

GH4PIN01 design files

The KiCad project lives in the mlab-modules/GH4PIN01 repository on GitHub; these links point at the commit this page was built from.

GH4PIN01: common questions

How big is the GH4PIN01 PCB?

The GH4PIN01 measures 19.8 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the GH4PIN01?

5 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the GH4PIN01 design files?

From the mlab-modules/GH4PIN01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the GH4PIN01 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
