GPS02
mlab-modules·GPS02·hw/sch_pcb/GPS02B.kicad_pcb
About the GPS02 PCB
GPS02 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60.5 × 40.1 mm, with 60 components from 30 distinct parts.
Other key parts include the USBLC6-2SC6, MIC5504-3.3YM5 and NEO-M8P. By type, the board carries 17 connectors, 16 resistors, 7 jumpers, 7 capacitors, 6 diodes and 3 ICs.
It belongs with the rf & radio designs in this gallery.
From the project
GNSS reciever ready to RTK (Real time kinematics) technology

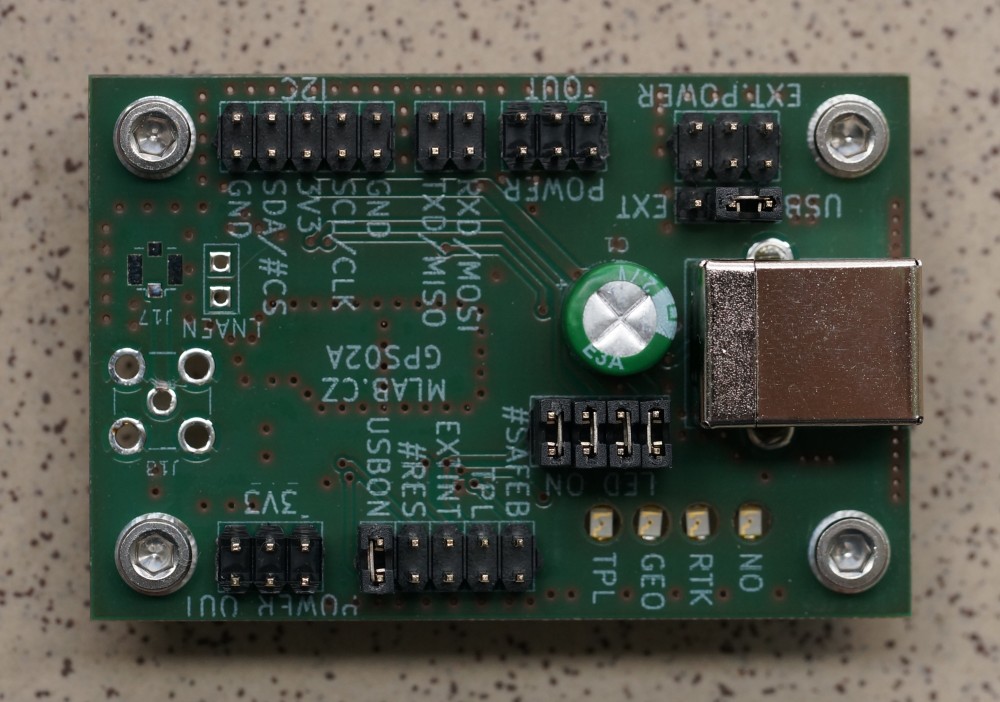

GPS02B is an accurate GNSS receiver module designed in the form of an MLAB module. This innovative design brings numerous advantages to the table, making it a choice for RTK (Real-Time Kinematics) navigation experiments. The GPS02B module is based on the uBlox receiver. There are multiple uBlox module types
u-blox NEO-M8P - With RTK functionality u-blox NEO-M9N - High navigation rate GNSS module without RTK

Main components on the GPS02
GPS02 bill of materials (BOM)
60 components, 30 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | MIC5504-3.3YM5 | SOT-23-5 | U2 |
| 1 | NEO-M8P | ublox_NEO | U3 |
| 1 | BC817-25 | SOT-23 | Q1 |
| 3 | HEADER_2x03_PARALLEL | Straight_2x03 | J1, J3, J15 |
| 1 | USB_B | USB_B_OST_USB-B1HSxx_Horizontal | J2 |
| 12 | HEADER_2x01_PARALLEL | Straight_2x01 | J4, J5, J6, J7, J8, J9, J10, J11 +4 |
| 1 | SMA | SMA6251A13G50 | J18 |
| 1 | 750mA | 1812 | F1 |
| 1 | Jumper_3_Bridged12 | Straight_1x03 | JP1 |
| 2 | Jumper_2_Bridged | Straight_1x02 | JP2, JP6 |
| 1 | Jumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP4 |
| 3 | Jumper_2_Open | Straight_1x02 | JP7, JP8, JP9 |
| 2 | M4 | D_SMA | D1, D2 |
| 1 | RED | LED_1206 | D3 |
| 2 | YELLOW | LED_1206 | D4, D5 |
| 1 | GREEN | LED_1206 | D6 |
| 1 | NL322522T-101K | L_1210_3225Metric | L1 |
| 1 | 27nH | L_0402_1005Metric | L2 |
| 1 | 1F | CP_Radial_D8.0mm_P3.50mm | C1 |
Show 10 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10uF | SMD-0805 | C2 |
| 3 | 1uF | SMD-0805 | C3, C5, C6 |
| 1 | 100nF | SMD-0805 | C4 |
| 1 | 47pF | SMD-0805 | C7 |
| 1 | 22R | SMD-0805 | R1 |
| 3 | 10k | SMD-0805 | R2, R3, R15 |
| 6 | 33R | SMD-0805 | R4, R5, R6, R7, R8, R9 |
| 3 | 620R | SMD-0805 | R10, R12, R13 |
| 1 | 10R | SMD-0805 | R11 |
| 2 | 220R | SMD-0805 | R14, R16 |
GPS02 design files
The KiCad project lives in the mlab-modules/GPS02 repository on GitHub; these links point at the commit this page was built from.
- Layouthw/sch_pcb/GPS02B.kicad_pcb
- Schematichw/sch_pcb/GPS02B.kicad_sch
GPS02: common questions
How big is the GPS02 PCB?
The GPS02 measures 60.5 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the GPS02?
60 components, from 30 distinct parts. The full bill of materials is listed on this page.
Where can I download the GPS02 design files?
From the mlab-modules/GPS02 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the GPS02 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
