PROGLOG01

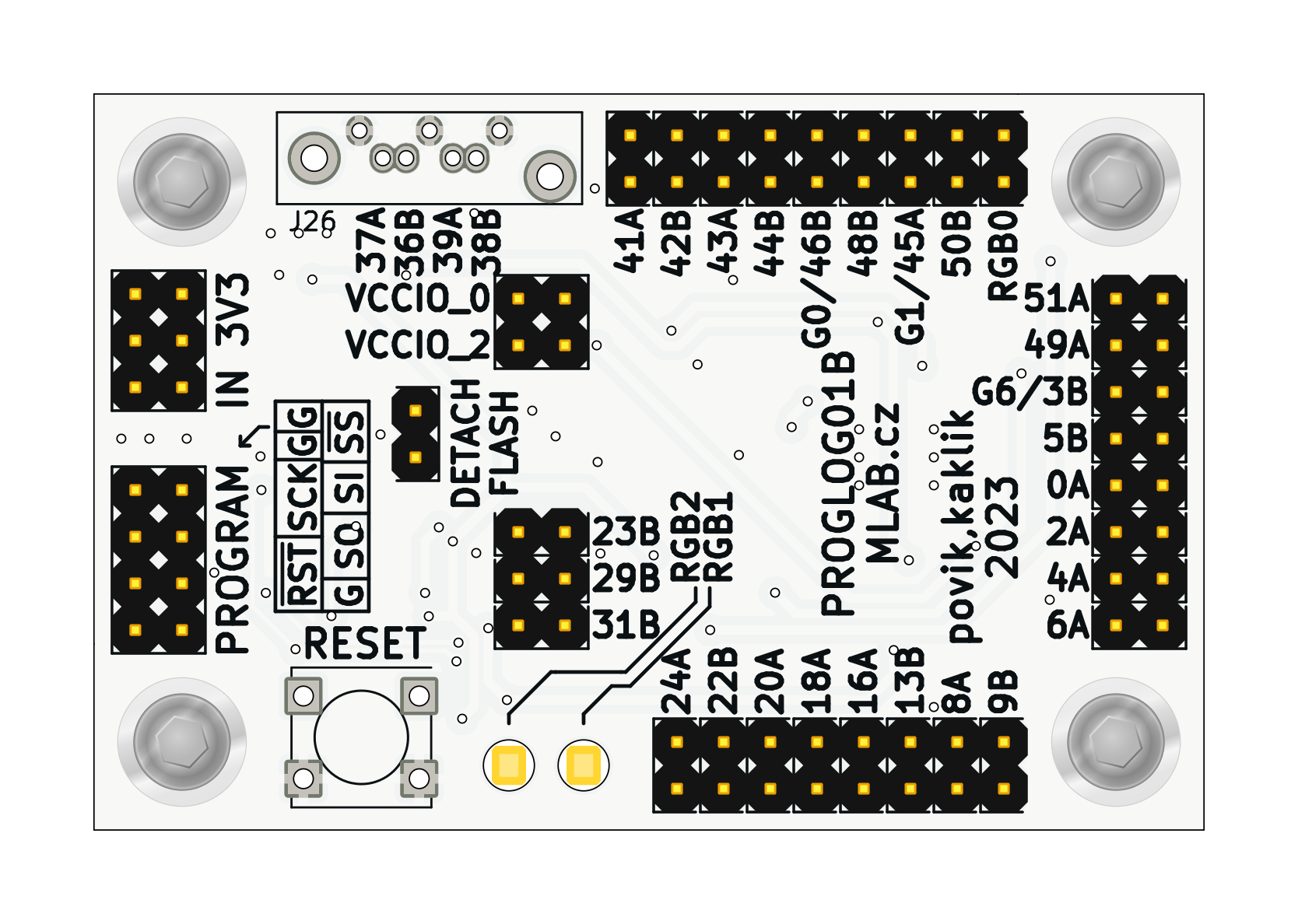

About the PROGLOG01 PCB
PROGLOG01 is an open source FPGA PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 60.5 × 40.1 mm, with 62 components from 23 distinct parts.
Its main chip is the ICE40UP5K-SG48I, from the FPGA family. Other key parts include the TPS22919DCK, MIC5504-1.2YM5 and AT25SF081-SSH. By type, the board carries 33 connectors, 10 capacitors, 10 resistors, 4 ICs, 3 diodes and 1 crystal.
From the project
Small low-power open-source toolchain compatible FPGA
Module with a small programmable gate-array ICE40UP5K.
The FPGA module compatible with fully open source toolchains like symbiflow.
Main components on the PROGLOG01
PROGLOG01 bill of materials (BOM)
62 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS22919DCK | SOT-363_SC-70-6_Handsoldering | U1 |
| 1 | MIC5504-1.2YM5 | SOT-23-5_HandSoldering | U2 |
| 1 | AT25SF081-SSH | SOIC-8_3.9x4.9mm_Pitch1.27mm | U3 |
| 1 | ICE40UP5K-SG48I | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U4 |
| 1 | ISM92-3351AH24.00 | ISM92 | X1 |
| 1 | JUMP_3X2 | Straight_2x03 | J1 |
| 1 | HEADER_2x01 | Straight_2x01 | J2 |
| 1 | HEADER_2x02_PARALLEL | Straight_2x02 | J3 |
| 1 | HEADER_2x04 | Straight_2x04 | J4 |
| 28 | HEADER_2x01_PARALLEL | Straight_2x01 | J5, J6, J7, J8, J9, J10, J11, J13 +20 |
| 1 | SATA | SATA-7_THT_VERT_2 | J26 |
| 1 | SW_Push | SW_PUSH_SMALL | SW1 |
| 1 | BZV55C-5,6V | Diode-MiniMELF_Standard | D1 |
| 1 | YELLOW | LED_1206 | D2 |
| 1 | BLUE | LED_1206 | D3 |
| 6 | 100nF | C_0805_2012Metric | C1, C2, C6, C8, C9, C10 |
| 2 | 10uF | C_0805_2012Metric | C3, C5 |
| 1 | 1uF | C_0805_2012Metric | C4 |
| 1 | 10nF | C_0805_2012Metric | C7 |
| 3 | 10k | R_0805_2012Metric | R1, R5, R6 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 0R | R_0805_2012Metric | R2, R3 |
| 3 | 100R | R_0805_2012Metric | R4, R7, R8 |
| 2 | 200R | R_0805_2012Metric | R9, R10 |
PROGLOG01 design files
The KiCad project lives in the mlab-modules/PROGLOG01 repository on GitHub; these links point at the commit this page was built from.
- Layouthw/sch_pcb/PROGLOG01.kicad_pcb
- Schematichw/sch_pcb/PROGLOG01.kicad_sch
PROGLOG01: common questions
What microcontroller does the PROGLOG01 use?
The PROGLOG01 is built around the ICE40UP5K-SG48I, from the FPGA family.
How big is the PROGLOG01 PCB?
The PROGLOG01 measures 60.5 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PROGLOG01?
62 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the PROGLOG01 design files?
From the mlab-modules/PROGLOG01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PROGLOG01 design in my own project?
The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the PROGLOG01 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
