STEPBUBODC01

mlab-modules·STEPBUBODC01·hw/sch_pcb/STEPBUBODC01.kicad_pcb

STEPBUBODC01 PCB layout, top view — open source board by mlab-modules

About the STEPBUBODC01 PCB

STEPBUBODC01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 30 × 30 mm, with 17 components from 13 distinct parts.

Other key parts include the TPS631000DRLR. By type, the board carries 5 resistors, 3 connectors, 3 jumpers, 3 capacitors, 1 IC and 1 diode.

It belongs with the power & battery designs in this gallery.

From the project

Buck-boost convertor TSP631000

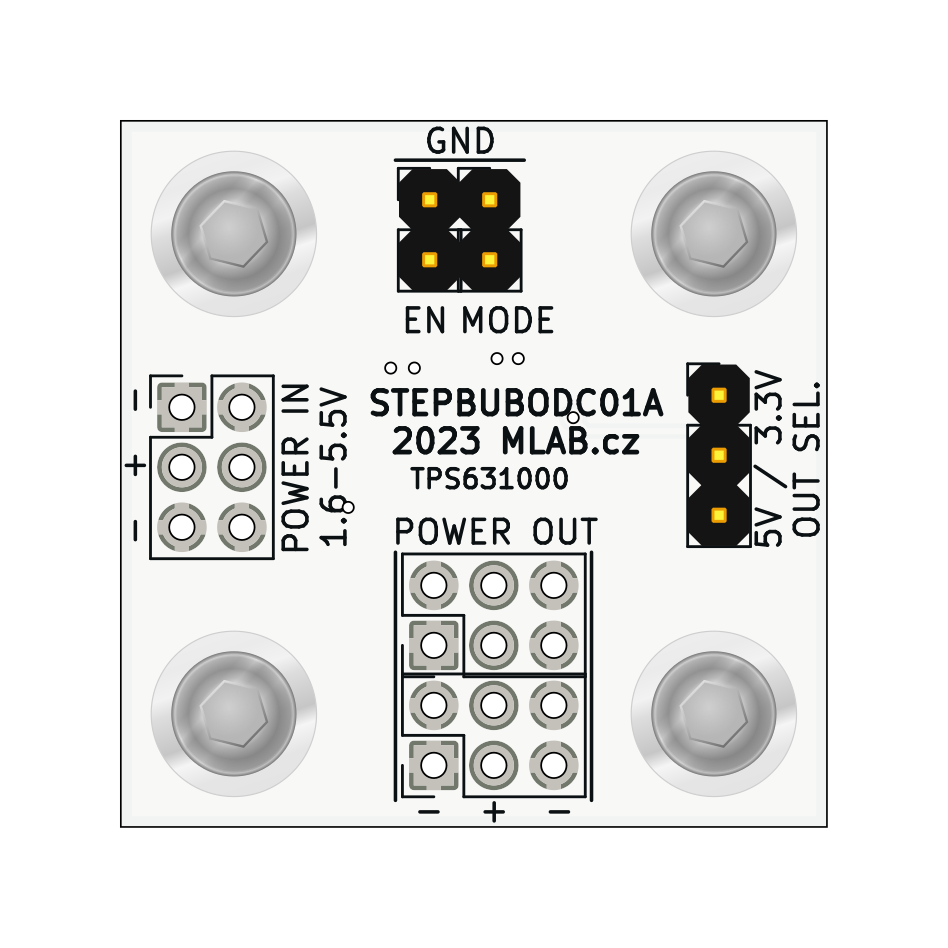

STEPBUBODC01, from the project README
From the project README

Main components on the STEPBUBODC01

TPS631000DRLR

STEPBUBODC01 bill of materials (BOM)

17 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS631000DRLR
U1
3
HEADER_2x03_PARALLEL
J2, J5, J6
2
Jumper_2_Open
JP1, JP2
1
HEADER_1X03
HEADER_1x03
JP4
1
M4
D1
1
1uH - DFE252012P-1R0M=P2
L1
1
22UF
22uF
C1
1
47UF
47uF
C2
1
10UF
10uF
C3
1
91K
91k
R1
1
511K
511k
R2
1
806K
806k
R3
2
1k
R4, R5

STEPBUBODC01 design files

The KiCad project lives in the mlab-modules/STEPBUBODC01 repository on GitHub; these links point at the commit this page was built from.

STEPBUBODC01: common questions

How big is the STEPBUBODC01 PCB?

The STEPBUBODC01 measures 30 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STEPBUBODC01?

17 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STEPBUBODC01 design files?

From the mlab-modules/STEPBUBODC01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STEPBUBODC01 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
