USB232R02

mlab-modules·USB232R02·hw/sch_pcb/USB232R02.kicad_pcb

USB232R02 PCB layout, top view — open source board by mlab-modules
Simulate this board

About the USB232R02 PCB

USB232R02 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 40.1 × 30 mm, with 21 components from 17 distinct parts.

Other key parts include the USBLC6-2SC6 and FT231XQ. By type, the board carries 5 connectors, 5 capacitors, 4 resistors, 3 diodes, 2 ICs and 1 fuse.

It belongs with the usb & debug tools designs in this gallery.

From the project

Universal USB-UART converter ideal for prototyping high-quality devices. USB Full Speed/Full Handshake support.

The module provides the ability to power your devices via 5V from USB and 3.3V from the integrated power source simultaneously. The protection of the host device for overcurrent is realized by reversible fuse (750mA). 5V header is powerd from USB bus (trought fuse). The 3.3V power source is supplied from an LDO integrated in the FTDI converter. The 3.3V current limit is 50mA.

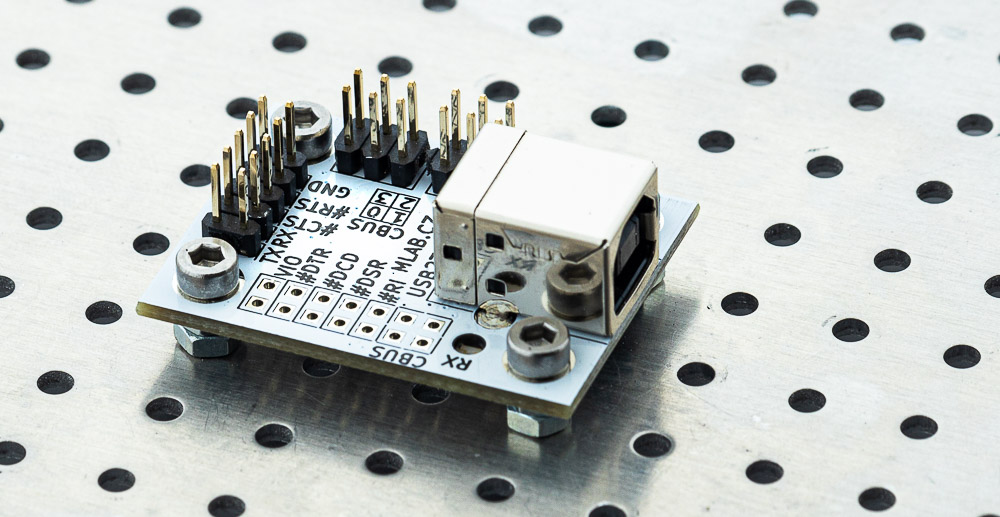

USB232R02, from the project README
From the project README

Main components on the USB232R02

USBLC6-2SC6FT231XQ

USB232R02 bill of materials (BOM)

21 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
FT231XQ
U2
1
C490687
USB_B
J1
2
HEADER_2x03
J2, J3
1
HEADER_2X07
HEADER_2x07
J18
1
HEADER_2X05
HEADER_2x05_PARALLEL
J19
1
750MA
750mA
F1
1
C466506
M4
D1
1
C598398
RED
D2
1
C598394
GREEN
D3
1
BLM21PG300SN1D
FB1
1
10NF
10nF
C1
1
10UF
10uF
C2
3
100nF
C3, C4, C5
1
4K7
4k7
R1
1
10K
10k
R2
2
270R
R3, R4

USB232R02 design files

The KiCad project lives in the mlab-modules/USB232R02 repository on GitHub; these links point at the commit this page was built from.

USB232R02: common questions

How big is the USB232R02 PCB?

The USB232R02 measures 40.1 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the USB232R02?

21 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the USB232R02 design files?

From the mlab-modules/USB232R02 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the USB232R02 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
