USBPDSINK01

mlab-modules·USBPDSINK01·hw/sch_pcb/USBPDSINK01.kicad_pcb

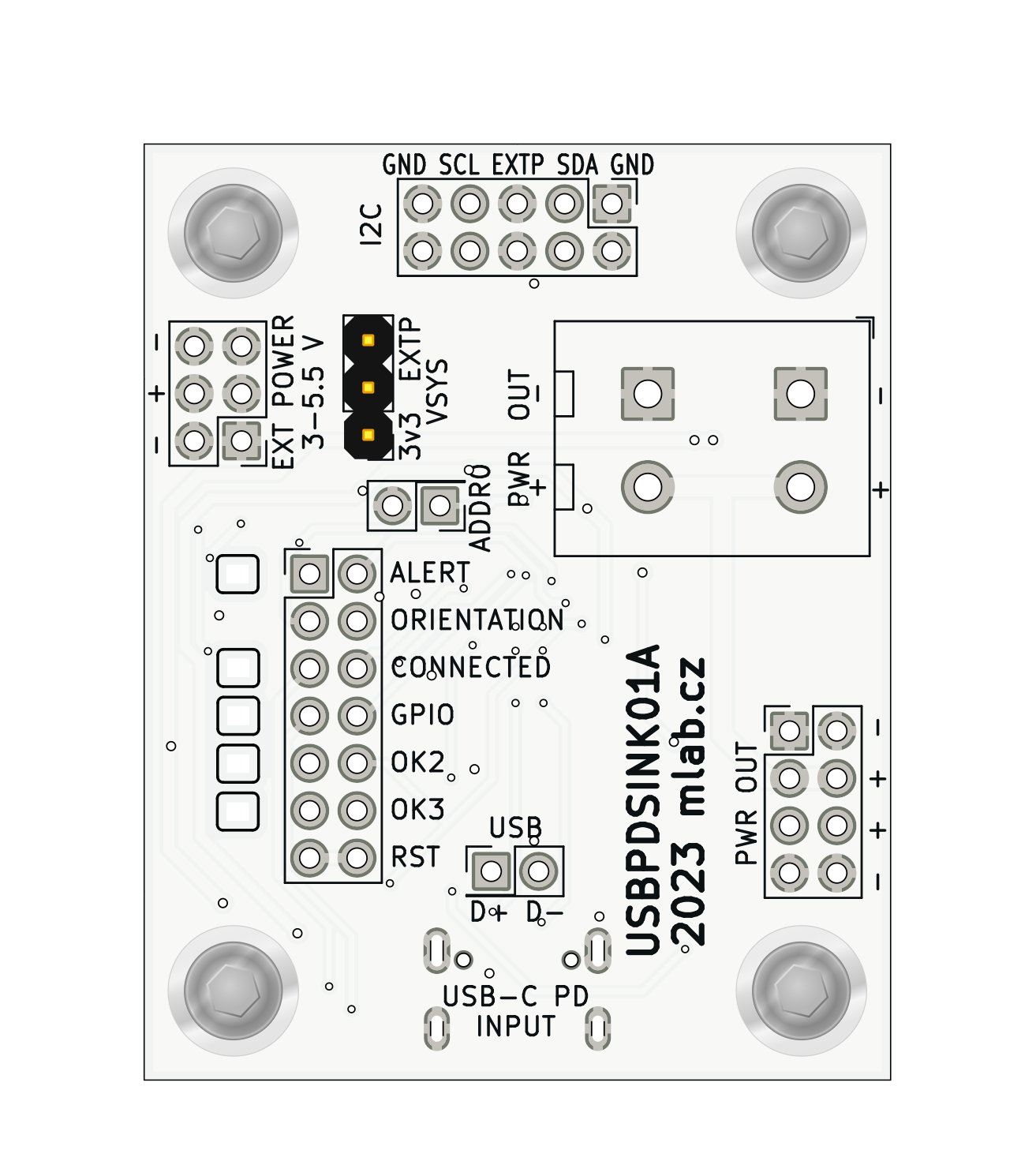

USBPDSINK01 PCB layout, top view — open source board by mlab-modules
Simulate this board

About the USBPDSINK01 PCB

USBPDSINK01 is an open source PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 40.1 × 50.3 mm, with 45 components from 26 distinct parts.

Other key parts include the STUSB4500QTR and NCV4274CST33T3G. By type, the board carries 21 resistors, 7 capacitors, 6 connectors, 5 diodes, 3 jumpers and 2 ICs.

It belongs with the power & battery designs in this gallery.

From the project

USB power delivery solution for charging, or as a universal power source.

The MLAB module USBPDSINK01 is a powerful module containing the STUSB4500 power-delivery sink controller. The module is designed to provide a flexible and reliable solution for various applications requiring USB power delivery PD2 and PD3 protocols.

STUSB4500 is a USB-C PD controller for Power Sinks / UFP (on the device side). It is certified by the USB-IF consortium for USB Type-C and USB Power Delivery applications (USB-C & USB PD).

USBPDSINK01, from the project README
From the project README

Main components on the USBPDSINK01

STUSB4500QTRNCV4274CST33T3G

USBPDSINK01 bill of materials (BOM)

45 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STUSB4500QTR
U1
1
NCV4274CST33T3G
U2
1
IRF9317TRPBF
Q2
1
USB4105-GF-A
USBC_USB4105-GF-A
J1
1
HEADER_2X05_PARALLEL
HEADER_2x05_PARALLEL
J2
1
HEADER_2X04_PARALLEL
HEADER_2x04_PARALLEL
J3
1
HEADER_2X03_PARALLEL
HEADER_2x03_PARALLEL
J4
1
HEADER_2X07_PARALLEL
HEADER_2x07_PARALLEL
J6
1
2604-3102
WAGO_2604-3102
J7
1
JUMPER_2_OPEN
Jumper_2_Open
JP1
1
JUMPER_3_BRIDGED12
Jumper_3_Bridged12
JP2
1
JUMPER_3_BRIDGED12
Jumper_3_Bridged12
JP3
2
KPTR-3216SURCK
RED
D1, D4
1
KPTR-3216SYCK
YELLOW
D2
1
KPTR-3216QBC-D
BLUE
D3
1
KPTR-3216CGCK
GREEN
D5
4
C0805 1u
1u
C1, C2, C7, C8
1
C0805 100n
100n
C4
2
C0805 10u
10u
C5, C6
3
R0805 100K 1%
100k
R1, R10, R22
Show 6 more
QtyPartRefs
4
R0805 62R 1%
62R
R3, R5, R6, R7
1
R0805 10R 1%
R10
R4
2
R0805 1k 1%
1k
R8, R9
1
R0805 100R 1%
100R
R11
1
R0805 20k 1%
20k
R12
9
R0805 4k7 1%
4k7
R13, R14, R15, R16, R17, R18, R19, R20 +1

USBPDSINK01 design files

The KiCad project lives in the mlab-modules/USBPDSINK01 repository on GitHub; these links point at the commit this page was built from.

USBPDSINK01: common questions

How big is the USBPDSINK01 PCB?

The USBPDSINK01 measures 40.1 × 50.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the USBPDSINK01?

45 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the USBPDSINK01 design files?

From the mlab-modules/USBPDSINK01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the USBPDSINK01 design in my own project?

The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
