About the RGB-Mechanical-KEEB- PCB
RGB-Mechanical-KEEB- is an open source STM32 PCB design by MohamedAlDeep, published on GitHub. It is a 4-layer board measuring 315.6 × 164.9 mm, with 278 components from 23 distinct parts.
Its main chip is the STM32F072CBT6, from the STM32 family. Other key parts include the 74LVCH2T45DC, USBLC6-2SC6 and XC6206. By type, the board carries 90 switches, 84 LEDs, 84 diodes, 11 capacitors, 4 ICs and 3 resistors.
It belongs with the keyboards designs in this gallery.
From the project

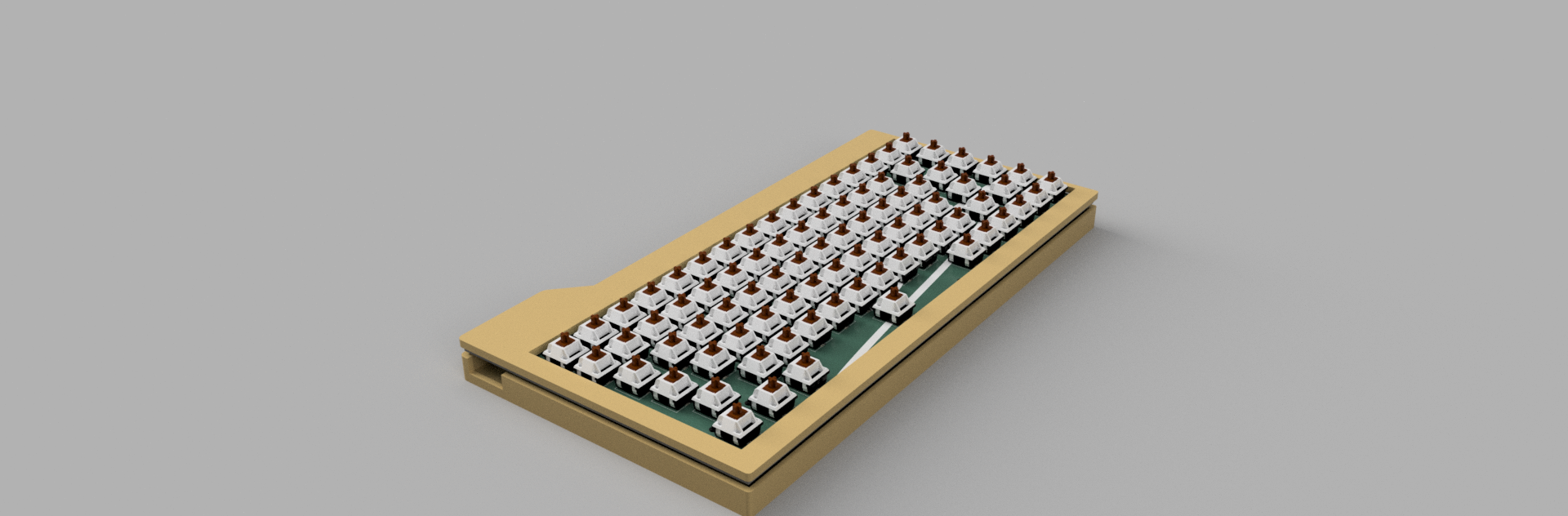

This is my custom made 75% rgb mechanical keyboard
This is my custom made 75% rgb mechanical keyboard, it has per-key lights and hot swapable key switches.
Because i have a laptop and i haven't had any actual separate keyboard experience, so i wanted to have one, and thought it would be nice for me to make my own for flexing on my fellows and solidify my PCB desiging knowledge.

Main components on the RGB-Mechanical-KEEB-
RGB-Mechanical-KEEB- bill of materials (BOM)
278 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F072CBT6 | Package_LQFP-48_7x7mm_P0.5 | U1 |
| 1 | 74LVCH2T45DC | VSSOP-8_2.3x2mm_P0.5mm | U2 |
| 1 | USBLC6-2SC6 | ESD_SOT-23-6 | U3 |
| 1 | XC6206 | Voltage_SOT-23 | U4 |
| 1 | USB_C | USB_C_HRO_TYPE-C-31-M-12 | J1 |
| 1 | 500MA 500mA | Fuse_0603 | F1 |
| 1 | MX_stab | STAB_MX_P_6.25u | S1 |
| 1 | MX_stab | STAB_MX_P_2.25u | S2 |
| 1 | MX_stab | STAB_MX_2u | S5 |
| 1 | MX_stab | STAB_MX_P_2u | S6 |
| 1 | MX_stab | STAB_MX_2.25u | S7 |
| 84 | SW_Push_45deg | SW_Cherry_MX_PCB_1.00u | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +76 |
| 1 | SW_Push | Button_TL3342 | SW343 |
| 84 | SK6812MINI-E | LED_6028R | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +76 |
| 84 | D | D_0201_0603Metric | D1, D2, D3, D4, D5, D6, D7, D8 +76 |
| 4 | CL05B104KB54PNC 100nF | Capacitor_0402 | C1, C3, C7, C10 |
| 1 | 100NF 100nF | Capacitor_0402 | C2 |
| 2 | CL05A475MP5NRNC 4.7uF | Capacitor_0402 | C6, C11 |
| 1 | CL05B103KB5NNNC 10nF | Capacitor_0402 | C8 |
| 1 | CL05A105KA5NQNC 1uF | Capacitor_0402 | C9 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1UF 1uF | Capacitor_0402 | C12, C13 |
| 1 | 10K 10k | Resistor_0402 | R5 |
| 2 | 5.1K 5.1k | Resistor_0402 | R6, R7 |
RGB-Mechanical-KEEB- design files
The KiCad project lives in the MohamedAlDeep/RGB-Mechanical-KEEB- repository on GitHub; these links point at the commit this page was built from.
RGB-Mechanical-KEEB-: common questions
What microcontroller does the RGB-Mechanical-KEEB- use?
The RGB-Mechanical-KEEB- is built around the STM32F072CBT6, from the STM32 family.
How big is the RGB-Mechanical-KEEB- PCB?
The RGB-Mechanical-KEEB- measures 315.6 × 164.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the RGB-Mechanical-KEEB-?
278 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RGB-Mechanical-KEEB- design files?
From the MohamedAlDeep/RGB-Mechanical-KEEB- repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RGB-Mechanical-KEEB- design in my own project?
The repository has no license, so all rights stay with MohamedAlDeep. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the RGB-Mechanical-KEEB- without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
