Battery-Powered-STM32-Board-With-USB layout, top view — open source STM32 board by mohamedboubaker
Simulate this board

About the Battery-Powered-STM32-Board-With-USB

Battery-Powered-STM32-Board-With-USB is an open source STM32 PCB design by mohamedboubaker, published on GitHub under the MIT license. It is a 2-layer board measuring 50 × 50 mm, with 48 components from 34 distinct parts.

Its main chip is the 8MHZ, from the STM32 family. Other key parts include the MCP73031, TPS63802DLAR, STM32F030C8TX, AT24C128C and CP2102-GMR. By type, the board carries 18 capacitors, 12 resistors, 6 ICs, 3 diodes, 2 connectors and 2 switches.

It belongs with the usb & debug tools and power & battery designs in this gallery.

From the project

A Custom STM32 board that runs on a battery with MCP73831 and is easily programmable with USB thanks to the CP2102 USB-to-UART chip.

Project Documentation: https://embeddedprojects101.com/design-a-battery-powered-stm32-board-with-usb/

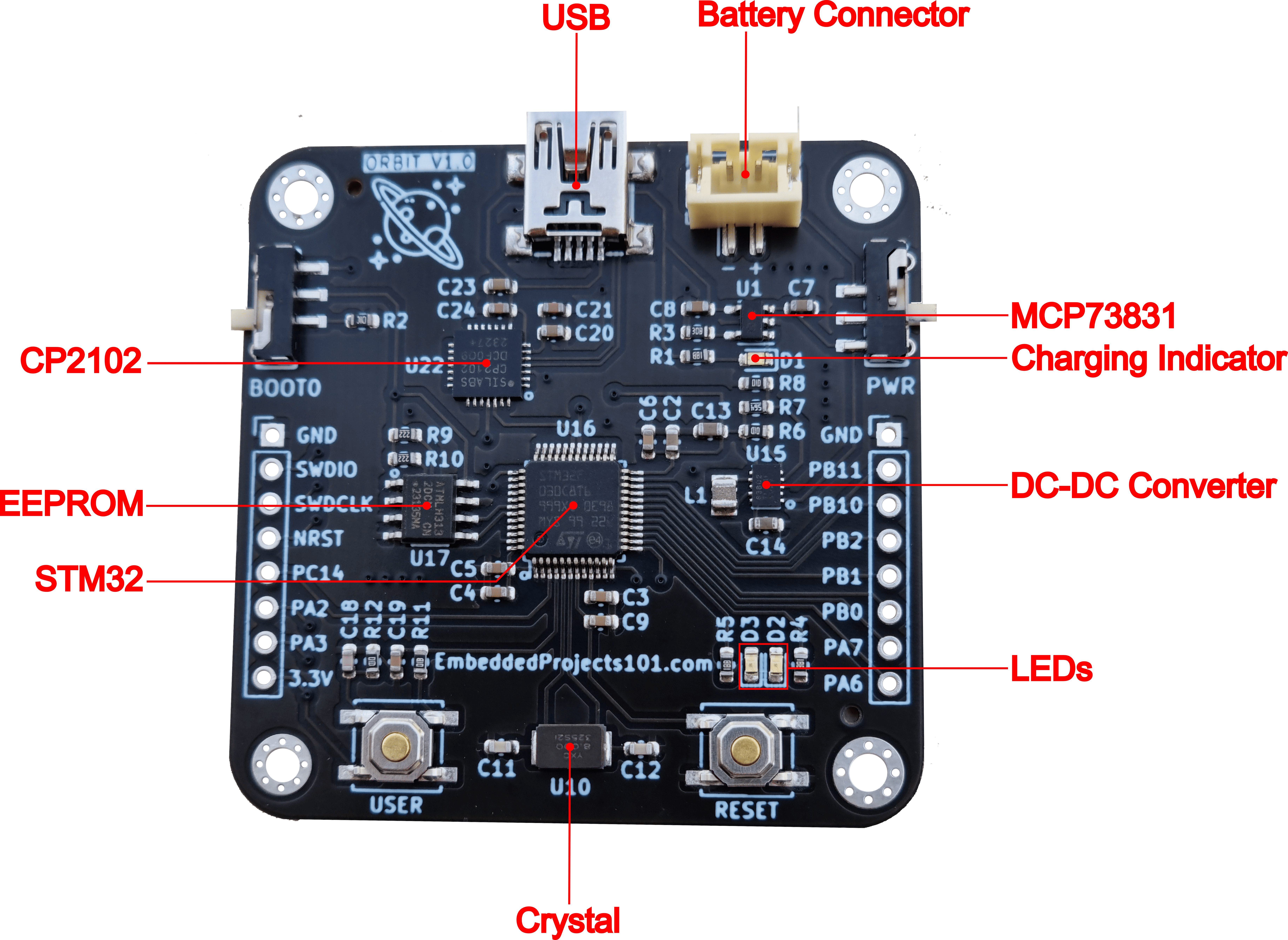

Battery-Powered-STM32-Board-With-USB, from the project README
From the project README

Main components on the Battery-Powered-STM32-Board-With-USB

MCP730318MHZTPS63802DLARSTM32F030C8TXAT24C128CCP2102-GMR

Battery-Powered-STM32-Board-With-USB bill of materials (BOM)

48 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP73031
U1
1
8MHZ
8MHz
U10
1
TPS63802DLAR
U15
1
STM32F030C8TX
STM32F030C8Tx
U16
1
AT24C128C
U17
1
CP2102-GMR
U22
1
West Connector
J1
1
East Connector
J2
1
C160352
Battery Connector
BAT1
1
BOOT0_SW
BOOT0
1
BOOT0_SW
PWR
PWR1
1
C318884
RESET
SW1
1
C318884
USER
SW2
1
C2681563
USB Connector
USB1
1
LED
D1
1
LED1
D2
1
LED2
D3
1
0.47UH
0.47uH
L1
3
4U7
4u7
C2, C7, C8
6
100N
100n
C3, C4, C5, C6, C9, C19
Show 14 more
QtyPartRefs
2
30P
30p
C11, C12
1
22UF
22uF
C13
1
10UF
10uF
C14
1
10P
10p
C18
1
4U7
4.7uF
C20
2
100N
100nF
C21, C24
1
1UF
1uF
C23
3
1K5
1k5
R1, R4, R5
1
10K
R2
1
2k
R3
3
100K
R6, R8, R12
1
560K
560k
R7
2
2K2
2k2
R9, R10
1
1K
R11

Battery-Powered-STM32-Board-With-USB design files

The KiCad project lives in the mohamedboubaker/Battery-Powered-STM32-Board-With-USB repository on GitHub; these links point at the commit this page was built from.

Battery-Powered-STM32-Board-With-USB: common questions

What microcontroller does the Battery-Powered-STM32-Board-With-USB use?

The Battery-Powered-STM32-Board-With-USB is built around the 8MHZ, from the STM32 family.

How big is the Battery-Powered-STM32-Board-With-USB?

The Battery-Powered-STM32-Board-With-USB measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Battery-Powered-STM32-Board-With-USB?

48 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Battery-Powered-STM32-Board-With-USB design files?

From the mohamedboubaker/Battery-Powered-STM32-Board-With-USB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Battery-Powered-STM32-Board-With-USB design in my own project?

Yes, under the terms of its MIT license, which mohamedboubaker chose for the repository.

Can I test firmware for the Battery-Powered-STM32-Board-With-USB without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
