Stm32-sim7600-gps-4g lte anti theft tracker

MohamedKhay154·stm32-sim7600-gps-4g-lte-anti-theft-tracker·PCB Design/SIM7600E/SIM7600E.kicad_pcb

Stm32-sim7600-gps-4g lte anti theft tracker PCB layout, top view — open source board by MohamedKhay154
Simulate this board

About the Stm32-sim7600-gps-4g lte anti theft tracker PCB

Stm32-sim7600-gps-4g lte anti theft tracker is an open source PCB design by MohamedKhay154, published on GitHub. It is a 4-layer board measuring 57.1 × 76 mm, with 56 components from 32 distinct parts.

Other key parts include the SIM7600E, LM2596S-ADJ and TXB0108RGY. By type, the board carries 17 capacitors, 11 diodes, 11 resistors, 4 transistors, 4 connectors and 3 ICs.

It belongs with the rf & radio and power & battery designs in this gallery.

From the project

A hobby project ;)

This hobby project is designed to be a practical gadget that can be used in daily life, whether you own an expensive bike or car and want to detect theft once it is parked, or simply want to track anything using GPS and cloud connectivity. In this project, I will explain how I developed and built the system.

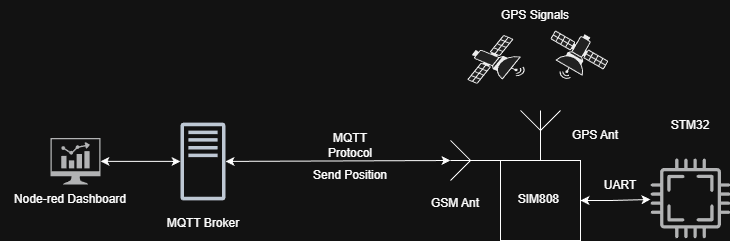

The STM32 communicates with the SIM7600E module via UART. GPS data is parsed on the MCU and sent either via SMS or published to an MQTT broker. Node-RED processes incoming data and provides visualization and control.

Stm32-sim7600-gps-4g lte anti theft tracker, from the project README
From the project README

Main components on the Stm32-sim7600-gps-4g lte anti theft tracker

SIM7600ELM2596S-ADJTXB0108RGY

Stm32-sim7600-gps-4g lte anti theft tracker bill of materials (BOM)

56 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SIM7600E
U1
1
LM2596S-ADJ
U2
1
TXB0108RGY
U3
4
DTC143Z
Q1, Q2, Q3, Q4
1
USB_B_Micro
J1
1
CONN_01X07_PIN
Conn_01x07_Pin
J2
1
CONN_01X06_PIN
Conn_01x06_Pin
J3
1
G85D1160022HHR
J4
1
Fuse
F1
3
SMA-KE
cntitle(中戈泰斗)
RF1, RF2, RF3
2
ESD9B5.0ST5G
D1, D3
1
SS36
D2
2
MMSZ5231
onsemi(安森美)
D4, D6
1
ESDA6V1-5SC6
D5
2
ESD9L5
onsemi(安森美)
D7, D8
2
RED
D10, D11
1
GREEN
D13
1
100U
100u
L1
1
47N
47n
L2
7
100N
100n
C1, C3, C6, C7, C8, C11, C12
Show 12 more
QtyPartRefs
1
330U
330u
C2
1
1u
C4
3
100U
100u
C5, C9, C10
4
22P
22p
C13, C14, C15, C21
1
33P
33p
C20
1
2K2
2k2
R2
1
1k
R3
1
820
R4
3
22
R5, R6, R7
2
47K
47k
R8, R9
2
470
R12, R13
1
10
R16

Stm32-sim7600-gps-4g lte anti theft tracker design files

The KiCad project lives in the MohamedKhay154/stm32-sim7600-gps-4g-lte-anti-theft-tracker repository on GitHub; these links point at the commit this page was built from.

Stm32-sim7600-gps-4g lte anti theft tracker: common questions

How big is the Stm32-sim7600-gps-4g lte anti theft tracker PCB?

The Stm32-sim7600-gps-4g lte anti theft tracker measures 57.1 × 76 mm, has 4 copper layers and is 1.591 mm thick.

How many components are on the Stm32-sim7600-gps-4g lte anti theft tracker?

56 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stm32-sim7600-gps-4g lte anti theft tracker design files?

From the MohamedKhay154/stm32-sim7600-gps-4g-lte-anti-theft-tracker repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stm32-sim7600-gps-4g lte anti theft tracker design in my own project?

The repository has no license, so all rights stay with MohamedKhay154. Use it as a reference, and ask the author before reusing the design.
