TS65AVR PCB layout, top view — open source AVR/Arduino board by mohitg11
Simulate this board

About the TS65AVR PCB

TS65AVR is an open source AVR/Arduino PCB design by mohitg11, published on GitHub. It is a board measuring 299.5 × 105.8 mm, with 428 components from 42 distinct parts.

Its main chip is the Atmega32u4, from the AVR/Arduino family. Other key parts include the MCP23018, IP4234CZ6, 74HC138 and PAM2804. By type, the board carries 117 LEDs, 112 switches, 73 diodes, 18 capacitors, 18 resistors and 11 connectors.

It belongs with the keyboards designs in this gallery.

From the project

The Split 65% Keyboard - AVR Based

This is a custom 65% style keyboard that is split in the middle to provide a more ergonomic option whilst not being drastically different from the standard stagger used on keyboards

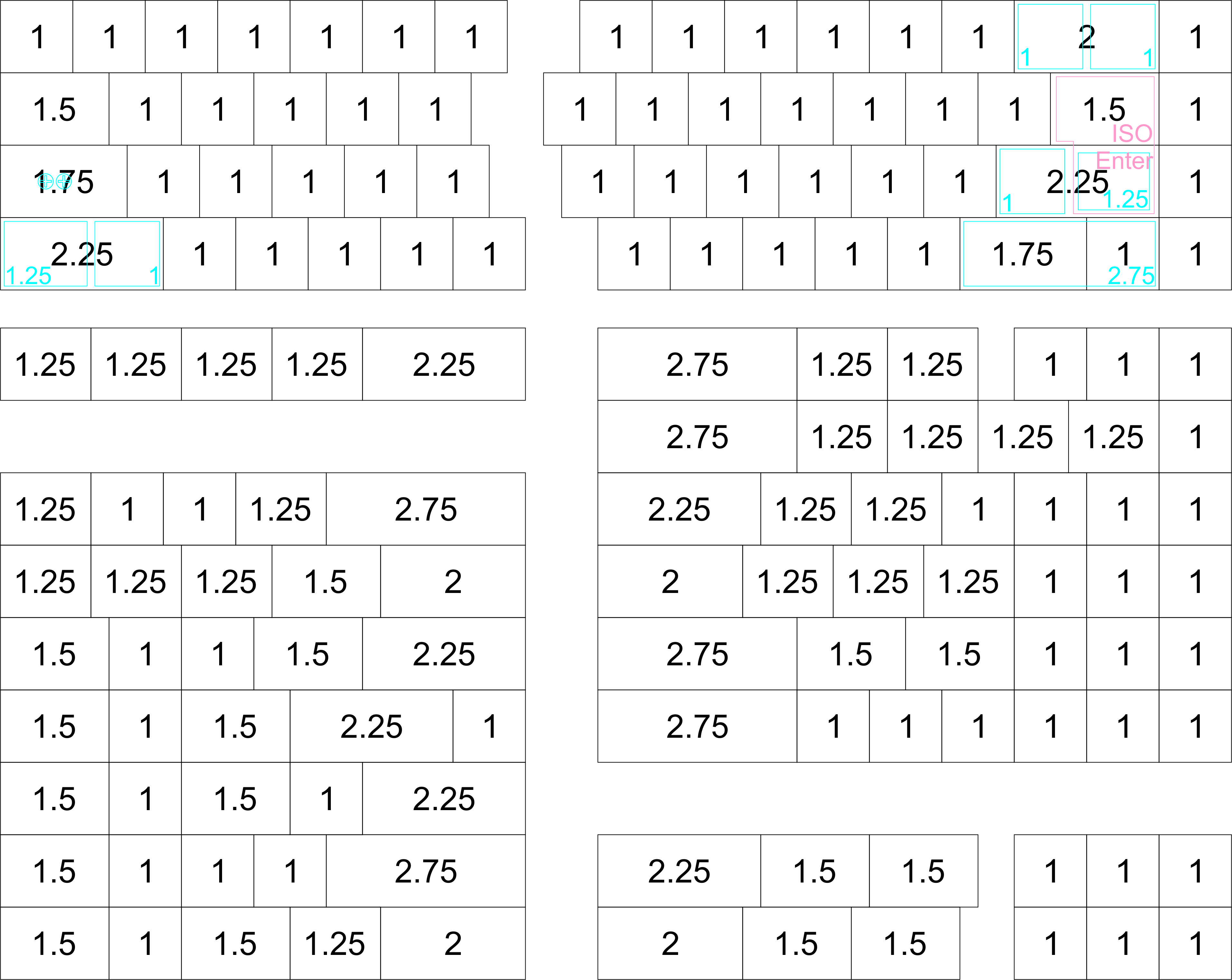

In the below image you can see the different options available, the top four rows represent the four rows of th keyboard and the options for the final keyboard row is represented by the remaining rows in the image.

TS65AVR, from the project README
From the project README

Main components on the TS65AVR

Atmega32u4MCP23018IP4234CZ674HC138PAM2804

TS65AVR bill of materials (BOM)

428 components, 42 distinct parts.

QtyPartRefs
1
Atmega32u4
U1
1
MCP23018
U2
1
IP4234CZ6
U3
1
74HC138
U4
1
PAM2804
U5
1
CRYSTAL
X1
1
USB_CONN
P1
1
USB3
P2
1
USB3_MICRO
P3
2
6PIN
P4, P5
2
5PIN
P7_1, P7_2
4
2PIN
P11, P12, P13, P15
6
MISC
BREAKHOLES1, BREAKHOLES2, BREAKHOLES3, BREAKHOLES4, BREAKHOLES5, BREAKHOLES6
1
BUZZER
BZ1
18
0.1 uF
CLED2, CLED3, CLED4, CLED5, CLED6, CLED7, CLED8, CLED9 +10
1
PTC FUSE
F1
10
MISC
FID1, FID2, FID3, FID4, FID5, FID6, FID7, FID8 +2
1
JUMPER
JP1
18
WS2812B
LEDG2, LEDG3, LEDG4, LEDG5, LEDG6, LEDG7, LEDG8, LEDG9 +10
5
470
RCL1, RI1, RI2, RI3, RI4
Show 22 more
QtyPartRefs
1
TAC_SWITCH
S1
110
SW
S1:1, S1:2, S1:3, S1:4, S1:5, S1:6, S1:7, S1:8 +102
1
ENCODER
S2
12
MISC
STAB1, STAB2, STAB3, STAB4, STAB5, STAB6, STAB7, STAB8 +4
110
LED
LED1:1, LED1:2, LED1:3, LED1:4, LED1:5, LED1:6, LED1:7, LED1:8 +102
6
LED
LEDI1, LEDI1_2, LEDI2, LEDI2_2, LEDI3, LEDI3_2
1
LED
LEDI4
73
DIODE
D1:1, D1:2, D1:3, D1:4, D1:5, D1:6, D1:7, D1:8 +65
1
4.7uH
L2
4
1uF
C1, C2, C10, C11
7
0.1uF
C3, C4, C5, C6, C7, C8, C9
3
10uF
C12, C17, C18
2
8pF
C13, C14
2
2.2uF
C20_1, C20_2
2
22
R3, R4
2
2.2k
R5, R6
3
10k
R9, R71, R72
3
100k
R13_1, R13_2, R14
2
330
R23, R24
1
RLED
R25
4
4.7k
R28_1, R28_2, R31_1, R31_2
1
100
R33

TS65AVR design files

The KiCad project lives in the mohitg11/TS65AVR repository on GitHub; these links point at the commit this page was built from.

TS65AVR: common questions

What microcontroller does the TS65AVR use?

The TS65AVR is built around the Atmega32u4, from the AVR/Arduino family.

How big is the TS65AVR PCB?

The TS65AVR measures 299.5 × 105.8 mm and is 1.6002 mm thick.

How many components are on the TS65AVR?

428 components, from 42 distinct parts. The full bill of materials is listed on this page.

Where can I download the TS65AVR design files?

From the mohitg11/TS65AVR repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the TS65AVR design in my own project?

The repository has no license, so all rights stay with mohitg11. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the TS65AVR without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
