SV-Profiler PCB layout, top view — open source ESP32 board by mostapha73-rgb

About the SV-Profiler PCB

SV-Profiler is an open source ESP32 PCB design by mostapha73-rgb, published on GitHub. It is a 4-layer board measuring 85 × 27 mm, with 53 components from 40 distinct parts.

Its main chip is the XIAO-ESP32-S3 (SKU 113991054), from the ESP32 family. Other key parts include the AP2112K-3.3TRG1, MCP1653S-E/UN and MAX3232CDR. By type, the board carries 14 capacitors, 14 resistors, 11 diodes, 5 connectors, 4 ICs and 3 fuses.

It belongs with the iot & wireless and power & battery designs in this gallery.

From the project

Autonomous underwater sound velocity profiler — ESP32-S3, Valeport miniSVS, Bar30, 4-layer PCB

Projet #4018 — Sound Velocity Reel · Iter Systems · La Motte-Servolex, France

- Overview - Hardware - Firmware v3.4 - Hardware Debugging - Repository Structure - Documentation - Author

SV-Profiler builds depth-indexed sound velocity profiles in underwater environments. Unlike point measurement tools that give a single reading, the system continuously pairs sound velocity samples from a Valeport miniSVS sensor with depth readings from a Bar30 pressure sensor as the device descends or ascends through the water column.

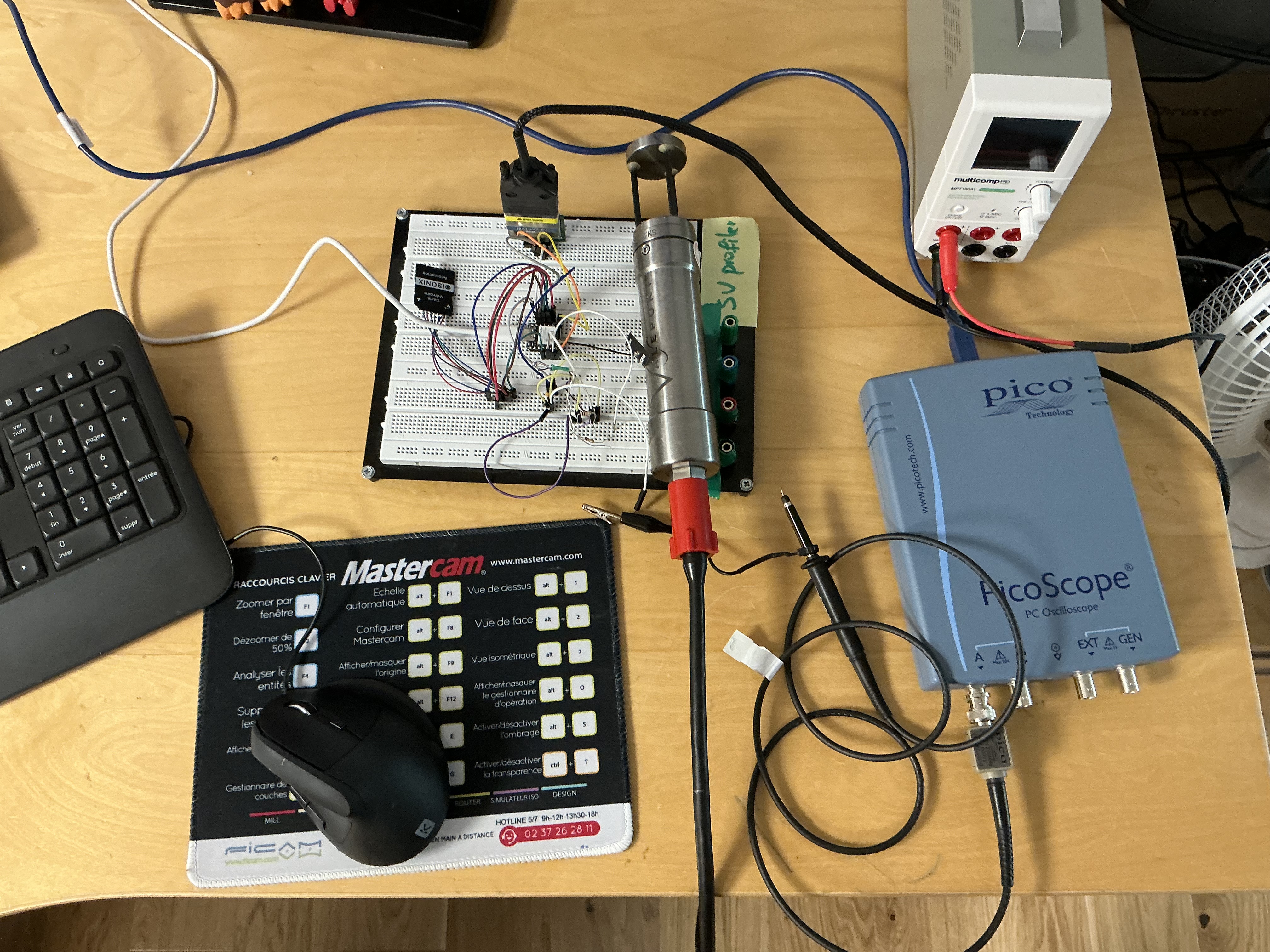

SV-Profiler, from the project README
From the project README

Main components on the SV-Profiler

AP2112K-3.3TRG1MCP1653S-E/UNXIAO-ESP32-S3 (SKU 113991054)MAX3232CDR

SV-Profiler bill of materials (BOM)

53 components, 40 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2112K-3.3TRG1
AP2112K-3.3
Diodes Incorporated
U1
1
MCP1653S-E/UN
MCP1653x-xUN
Microchip
U2
1
XIAO-ESP32-S3 (SKU 113991054)
XIAO-ESP32-S3-DIP
U3
1
MAX3232CDR
MAX3232
Texas Instruments
U4
1
AO3402
Q_NMOS_GSD
Alpha & Omega Semiconductor
Q1
1
2023960207
Molex
J1
1
IPL1-104-01-L-D-K
IPL1-104-01-X-S-K
Samtec
J2
1
IPL1-104-01-L-D-K
IPL1-104
Samtec
J3
1
DM3AT-SF-PEJM5
Micro_SD_Card_Det_Hirose_DM3AT
Hirose (HRS)
J4
1
TYPE-C-31-M-12
USB_C_Receptacle_USB2.0_16P
Korean Hroparts Elec
J5
1
MF-NSMF100-2
1A
Bourns
F1
1
MF-NSMF100-2
Polyfuse
Bourns
F2
1
MDRR-DT-10-15-F
Littelfuse
F3
1
SS54
MDD
D1
1
SMAJ5.0A
D_TVS
Littelfuse
D2
1
LED 0402 Vert
LED_ACQUI
Everlight
D3
1
SMF5.0CA
D_TVS
Littelfuse
D4
2
SMAJ15CA
D_TVS
Littelfuse
D5, D8
1
LED 0402 orange
LED_orange
Everlight
D6
1
LED 0402 jaune
LED_jaune
Everlight
D7
Show 20 more
QtyPartRefs
1
SMAJ12CA
D_TVS
Littelfuse
D9
1
SS14
D_Schottky
MDD
D10
1
LED 0402 rouge
LED rouge
Everlight
D11
1
SRR6038-3R3Y
3.3uH
Bourns
L1
1
4.7µF
Generic
C1
8
100nF
Generic
C2, C5, C8, C10, C11, C12, C13, C14
2
1uf
Generic
C3, C4
1
10uF
Generic
C6
1
10uF
Generic
C7
1
10uF
Generic
C9
2
5.1k
Generic
R1, R9
1
1k
Generic
R2
1
90.9k
Generic
R3
1
120k
Generic
R4
1
200k
Generic
R5
2
10k
Generic
R6, R7
2
2.2k
Generic
R8, R13
1
0.05
Generic
R10
2
4.7k
Generic
R11, R12
1
130
Generic
R14

SV-Profiler design files

The KiCad project lives in the mostapha73-rgb/SV-Profiler repository on GitHub; these links point at the commit this page was built from.

SV-Profiler: common questions

What microcontroller does the SV-Profiler use?

The SV-Profiler is built around the XIAO-ESP32-S3 (SKU 113991054), from the ESP32 family.

How big is the SV-Profiler PCB?

The SV-Profiler measures 85 × 27 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the SV-Profiler?

53 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SV-Profiler design files?

From the mostapha73-rgb/SV-Profiler repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SV-Profiler design in my own project?

The repository has no license, so all rights stay with mostapha73-rgb. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the SV-Profiler without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
