Klask PCB layout, top view — open source AVR/Arduino board by motty-mio2

About the Klask PCB

Klask is an open source AVR/Arduino PCB design by motty-mio2, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 69.1 × 53.8 mm, with 18 components from 11 distinct parts.

Its main chip is the Arduino_UNO_R3, from the AVR/Arduino family. Other key parts include the Breakout_TMC2209 and Pololu_Breakout_DRV8825. By type, the board carries 5 connectors, 4 capacitors, 3 modules, 3 resistors, 2 switches and 1 diode.

It belongs with the robotics & motion, power & battery and dev boards & breakouts designs in this gallery.

From the project

This repository contains the KiCad project files for Klask PCB, a custom Arduino Uno R3 shield designed to control stepper motors and limit switches for manipulating a Klask board game.

This repository contains the KiCad project files for Klask PCB, a custom Arduino Uno R3 shield designed to control stepper motors and limit switches for manipulating a Klask board game.

Klask PCB is a hardware interface designed to automate or robotize the board game "Klask". It uses stepper motors to move the game magnets under the board.

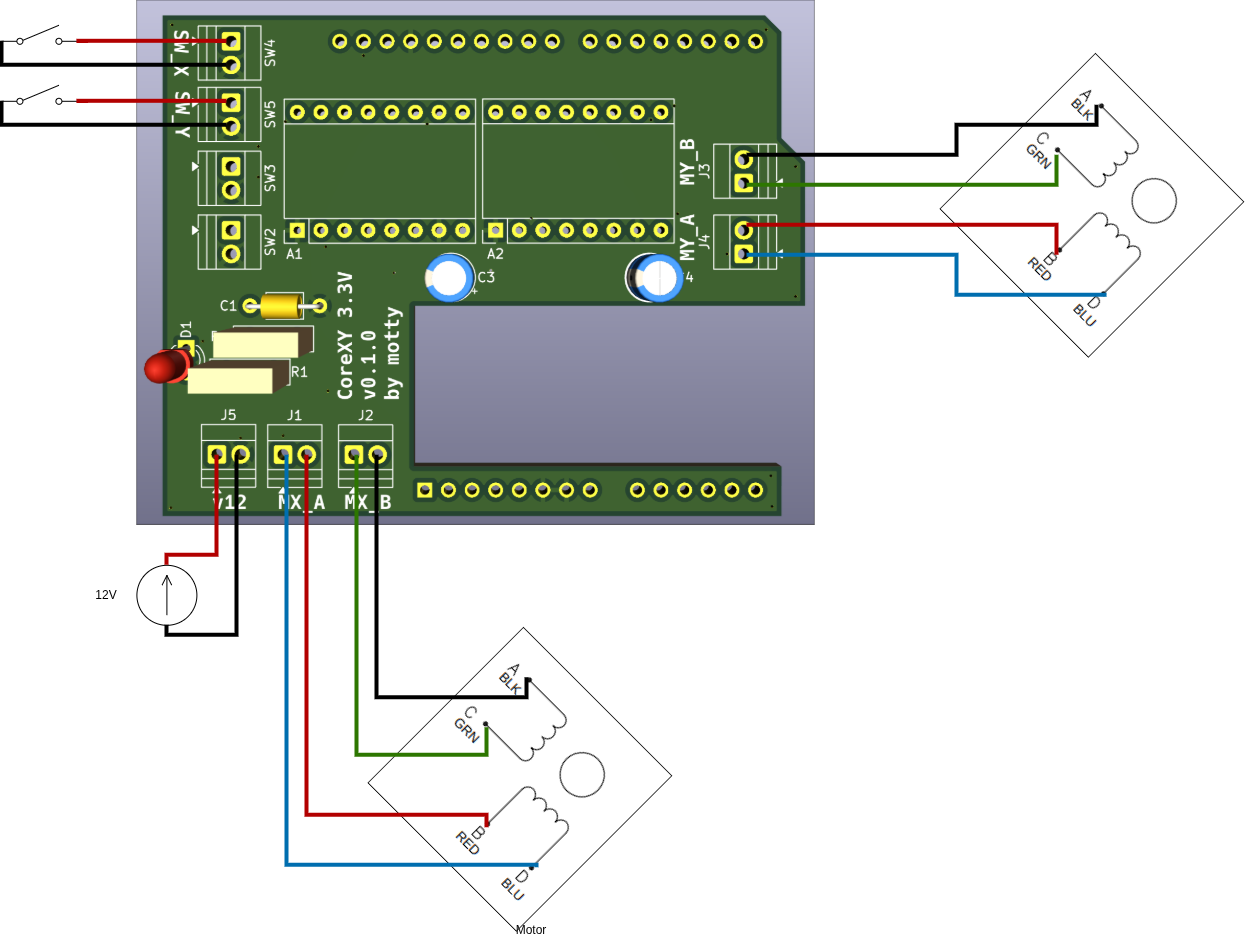

The shield drives two stepper motors (X and Y axes) using Pololu-style DRV8825 stepper driver modules and processes signals from homing limit switches to align the axes. Additionally, it integrates a power sense circuit to detect external 12V supply and…

Klask, from the project README
