About the LoRa mPCIe PCB
LoRa mPCIe is an open source PCB design by NebraLtd, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 51 × 30 mm, with 171 components from 68 distinct parts.
Other key parts include the SX1303IMLTRT, NCP114AMX330TCG, TPS62260DRV, EVA-M8M-0 and SX1250IMLTRT. By type, the board carries 69 capacitors, 57 resistors, 22 inductors, 10 ICs, 4 LEDs and 4 diodes.
It belongs with the rf & radio designs in this gallery.
From the project

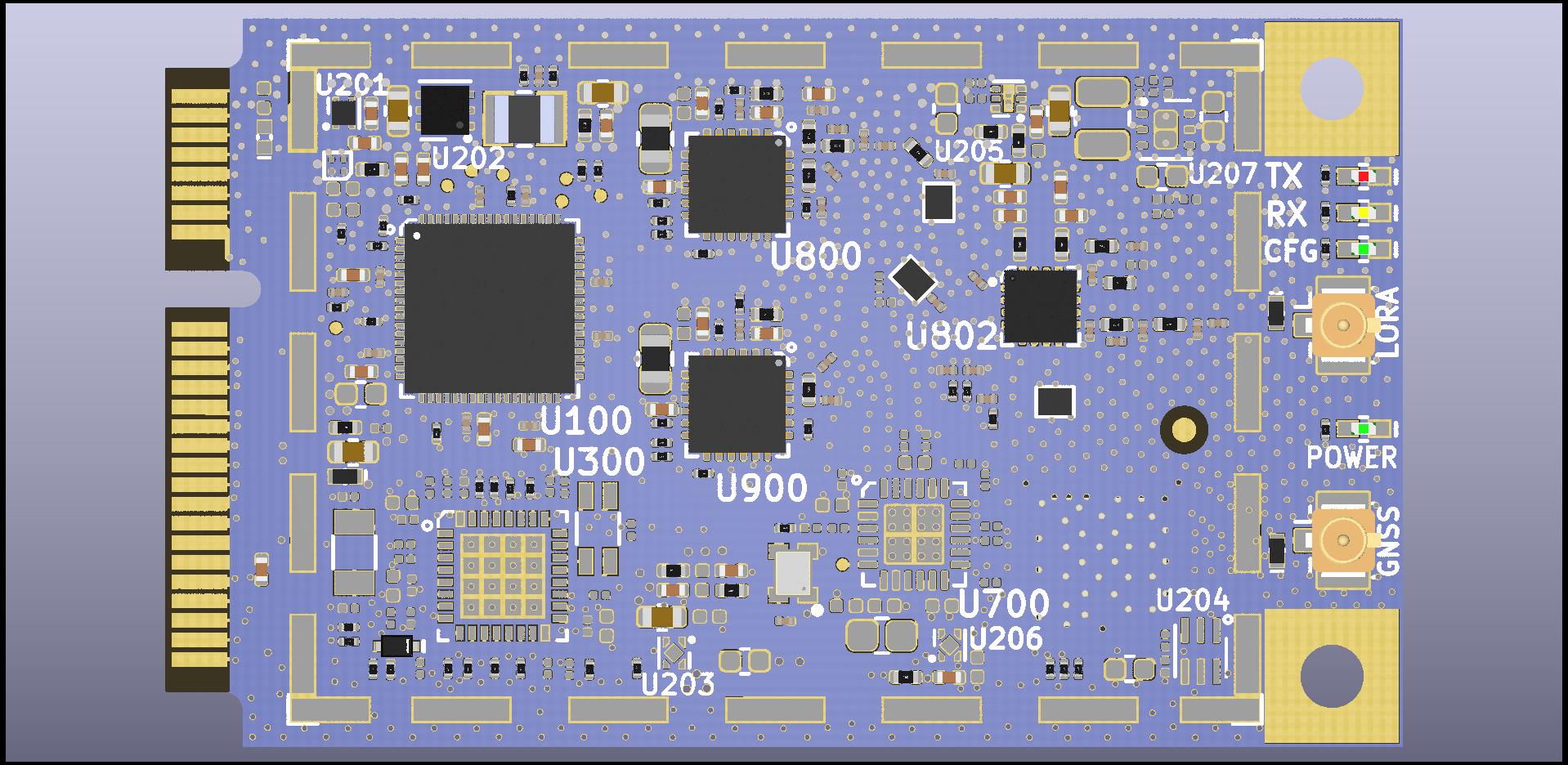

Open source mPCIe LoRa® concentrators from Nebra

Main components on the LoRa mPCIe
LoRa mPCIe bill of materials (BOM)
171 components, 68 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SX1303IMLTRT SX1303 Semtech Corporation | vqfn68_7x7mm | U100 |
| 1 | NCP114AMX330TCG 3V3 ON Semiconductor | UDFN4_1x1mm | U201 |
| 1 | TPS62260DRV Texas Instruments | DRV0006A_V | U202 |
| 1 | EVA-M8M-0 U-Blox | LGA43R65P9X9_700X700X116 | U600 |
| 2 | SX1250IMLTRT SX1250 Semtech | vqfn24_4x4mm | U800, U900 |
| 2 | B39921B4344P810 SAW Filter Qualcomm & TDK | QCS5P_1.4x1.1mm | U801, U805 |
| 1 | SKY66423-11 Skyworks | SKY66420_16P_3x3mm | U802 |
| 1 | B39921B2625P810 SAW Filter Qualcomm & TDK | QCS5P_1.4x1.1mm | U803 |
| 2 | U.FL Hirose | U.FL-R-SMT_Hirose | A1, A2 |
| 1 | TCXO NDK | TCXO_2x1_6mm | Y800 |
| 1 | SMS-458F Shield Frame Leader Tech | SMS-458F_Shield | RF1 |
| 1 | SMS-458C Shield Cover Leader Tech | SMS-458C_Shield_cover | RF2 |
| 1 | APHHS1005SURCK RED Kingbright | CD1005-0402-RED | LED1 |
| 2 | APHHS1005LCGCK GREEN Kingbright | CD1005-0402 | LED2, LED4 |
| 1 | APHHS1005LSYCK/J3-PF YELLOW Kingbright | CD1005-0402-YELLOW | LED3 |
| 1 | BAT54XV2T1G BAT54 ON Semiconductor | SOD523 | D101 |
| 1 | RCLAMP0531T.TCT 20V Semtech | SLP1006P2T | D302 |
| 2 | LXES15AAA1-153 ~ Murata | SLP1006P2T | D600, D801 |
| 7 | BLM15PG100SN1D Ferrite beads Murata | rlc_402_smd_small | FB203, FB207, FB208, FB211, FB212, FB302, FB801 |
| 1 | LQM2HPN2R2MJ0L 2.2uH Murata | LQM2HPN2R2MJ0L | L200 |
Show 48 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LQW15AN47NJ00D 47nH Murata | rlc_402_smd_small | L601, L801 |
| 1 | LQW15AN2N5C00D 2.5nH Murata | rlc_402_smd_small | L803 |
| 1 | LQW15AN4N7C00D 4.7nH Murata | rlc_402_smd_small | L804 |
| 2 | LQW15AN12NH00D 12nH Murata | rlc_402_smd_small | L806, L906 |
| 2 | MLZ2012M150WTD25 15uH TDK | rlc_805_smd_small | L807, L907 |
| 1 | LQW15AN6N8G80D 6.8nH Murata | rlc_402_smd_small | L809 |
| 1 | LQG15WZ2N7C02D 3.0nH Murata | rlc_402_smd_small | L810 |
| 1 | LQW15AN7N5J00D 7.5nH Murata | rlc_402_smd_small | L811 |
| 1 | LQP15MN1N2B02 1.2nH Murata | rlc_402_smd_small | L812 |
| 1 | LQG15HN3N3S02 5.6nH Murata | rlc_402_smd_small | L813 |
| 1 | LQW15AN4N7C00D 5.6nH Murata | rlc_402_smd_small | L814 |
| 12 | GRM033C71C104KE14D 100nF Murata | ccer_201_smd_small | C100, C102, C103, C105, C106, C107, C108, C109 +4 |
| 10 | GRM153R61A105ME95D 1uF Murata | ccer_402_smd_small | C101, C104, C111, C112, C200, C201, C202, C226 +2 |
| 1 | GRM188R61C106KAAL 10uF Murata | ccer_603_smd_small | C203 |
| 2 | GRM188R61C475KAAJD 4.7uF Murata | ccer_603_smd_small | C204, C822 |
| 3 | GRM188R60J476ME15D 47uF Murata | ccer_603_smd_small | C206, C215, C308 |
| 8 | GMD155R71C104KA11 100nF Murata | ccer_402_smd_small | C208, C210, C216, C220, C221, C312, C818, C918 |
| 1 | GRM155R60J475ME47D 4.7uF Murata | ccer_402_smd_small | C224 |
| 1 | GRM0335C1H220FA01D 22pF Murata | ccer_201_smd_small | C231 |
| 2 | GRM0335C1H470JA01D 47pF Murata | ccer_201_smd_small | C601, C802 |
| 1 | GRM155R71C473KA01J 47nF Murata | ccer_402_smd_small | C801 |
| 2 | 3.3pF | ccer_201_smd_small | C804, C831 |
| 1 | GRM0335C1H100FA01 5.6pF Murata | ccer_201_smd_small | C805 |
| 1 | GRM0335C1H390FA01D 39pF Murata | ccer_201_smd_small | C806 |
| 1 | GJM0335C1H2R7BB01D 2.2pF Murata | ccer_201_smd_small | C807 |
| 3 | GRM0335C1H100FA01 10pF Murata | ccer_201_smd_small | C808, C828, C908 |
| 6 | GRM0335C1H560FA01D 56pF Murata | ccer_201_smd_small | C809, C815, C819, C820, C821, C834 |
| 4 | GJM0335C1E3R6WB01J 3.6pF Murata | ccer_201_smd_small | C811, C812, C911, C912 |
| 2 | GRM155R61A474KE15D 470nF Murata | ccer_402_smd_small | C817, C917 |
| 1 | GRM155R61A103KA01D 10nF Murata | ccer_402_smd_small | C823 |
| 1 | GRM155R71C102KA01D 1nF Murata | ccer_402_smd_small | C824 |
| 1 | GJM1555C1H330GB01D 100pF Murata | ccer_402_smd_small | C825 |
| 1 | C0402C121J1GAC7867 100pF KEMET | ccer_402_smd_small | C826 |
| 1 | GRM0335C1H2R4BA01D 1.3pF Murata | ccer_201_smd_small | C829 |
| 1 | GJM0335C1H2R1BB01D 1.5pF Murata | ccer_201_smd_small | C830 |
| 1 | GRM0335C1H1R8WA01D 3.3pF Murata | ccer_201_smd_small | C832 |
| 1 | 2.7pF | ccer_201_smd_small | C833 |
| 4 | CRCW020147K0 47K Vishay Dale | rlc_201_smd_small | R101, R103, R107, R201 |
| 14 | CRCW0201100R 100R Vishay Dale | rlc_201_smd_small | R102, R301, R302, R308, R309, R316, R317, R318 +6 |
| 2 | CRCW0201680R 680R Vishay Dale | rlc_201_smd_small | R104, R105 |
| 1 | CRCW0201820R 820R Vishay Dale | rlc_201_smd_small | R106 |
| 2 | CRCW020110R0JNED 10R Vishay Dale | rlc_201_smd_small | R108, R600 |
| 16 | CRCW02010000Z0ED 0R Vishay Dale | rlc_201_smd_small | R109, R110, R111, R112, R113, R114, R115, R120 +8 |
| 5 | CRCW02014K70FNED 4.7k Vishay Dale | rlc_201_smd_small | R116, R117, R203, R206, R601 |
| 5 | CRCW02011K00JNED 1k Vishay Dale | rlc_201_smd_small | R208, R330, R805, R807, R809 |
| 4 | CRCW04020000ZSTD 0R Vishay Dale | rlc_402_smd_small | R221, R222, R813, R913 |
| 2 | CRCW0201182KFKED 182K Vishay Dale | rlc_201_smd_small | R231, R232 |
| 2 | CRCW0201220RJNED 220R Vishay Dale | rlc_201_smd_small | R801, R901 |
LoRa mPCIe design files
The KiCad project lives in the NebraLtd/LoRa-mPCIe repository on GitHub; these links point at the commit this page was built from.
LoRa mPCIe: common questions
How big is the LoRa mPCIe PCB?
The LoRa mPCIe measures 51 × 30 mm, has 6 copper layers and is 1 mm thick.
How many components are on the LoRa mPCIe?
171 components, from 68 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LoRa mPCIe design files?
From the NebraLtd/LoRa-mPCIe repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the LoRa mPCIe design in my own project?
Yes, under the terms of its Apache-2.0 license, which NebraLtd chose for the repository.
