HardLabs

ControllerToJamma

NEO-JAMMA·Neo-Geo_MVS_Projects·ControllerAdapter/Kicad/ControllerToJamma.kicad_pcb

ControllerToJamma PCB layout, top view — open source AVR/Arduino board by NEO-JAMMA

About the ControllerToJamma PCB

ControllerToJamma is an open source AVR/Arduino PCB design by NEO-JAMMA, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 47.9 × 46.4 mm, with 3 components from 3 distinct parts.

Its main chip is the Arduino_Nano_Socket, from the AVR/Arduino family. By type, the board carries 1 connector and 1 switch.

It belongs with the retro computing designs in this gallery.

From the project

Neo-Geo MVS Projects

THIS PROJECT IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL I BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THIS PROJECT.

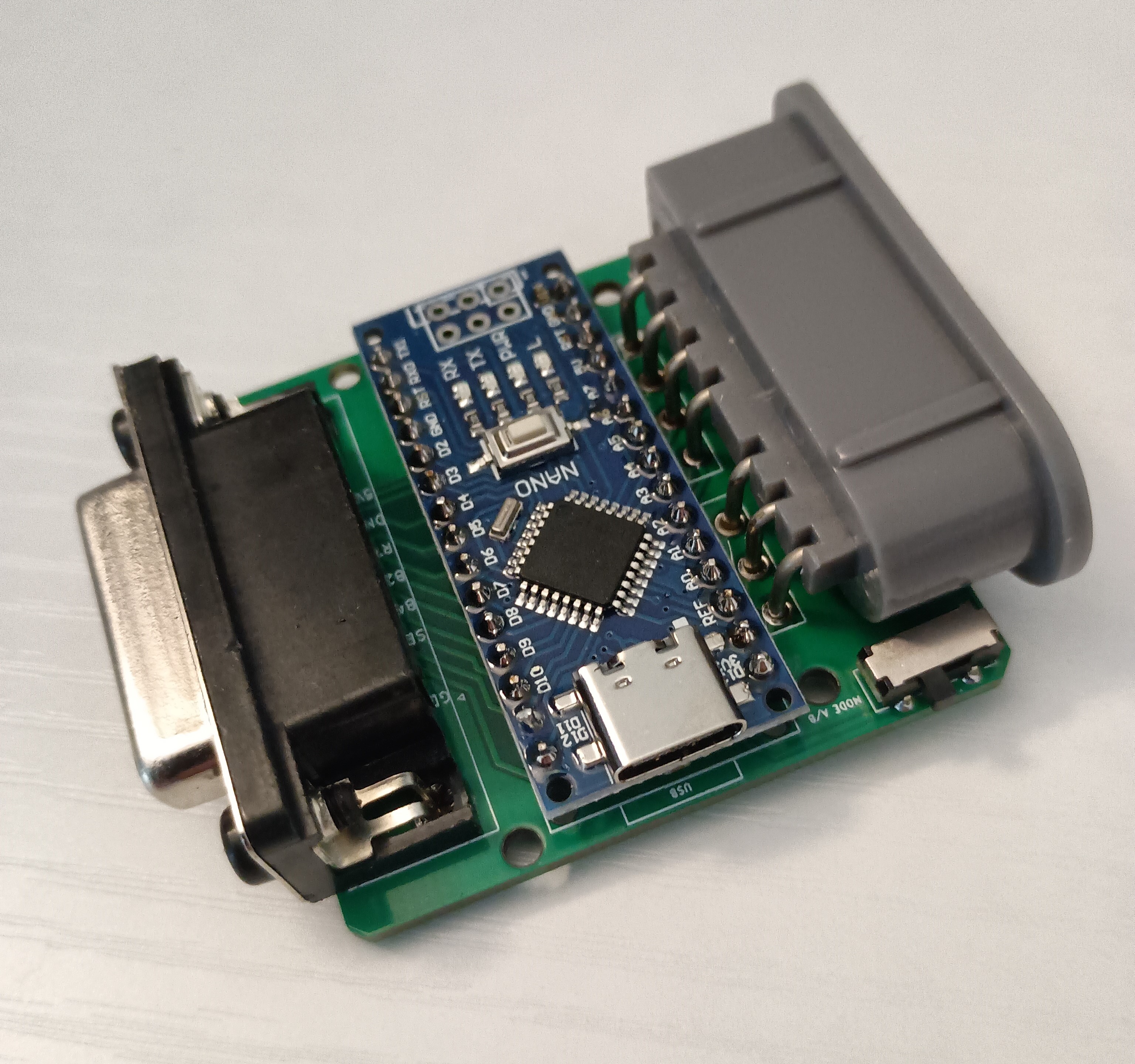

ControllerToJamma, from the project README
From the project README

ControllerToJamma bill of materials (BOM)

3 components, 3 distinct parts.

QtyPartRefs
1
Conn_01x07
J2
1
SW_SPDT
SW1
1
Arduino_Nano_Socket
XA1

ControllerToJamma design files

The KiCad project lives in the NEO-JAMMA/Neo-Geo_MVS_Projects repository on GitHub; these links point at the commit this page was built from.

ControllerToJamma: common questions

What microcontroller does the ControllerToJamma use?

The ControllerToJamma is built around the Arduino_Nano_Socket, from the AVR/Arduino family.

How big is the ControllerToJamma PCB?

The ControllerToJamma measures 47.9 × 46.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ControllerToJamma?

3 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the ControllerToJamma design files?

From the NEO-JAMMA/Neo-Geo_MVS_Projects repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ControllerToJamma design in my own project?

Yes, under the terms of its GPL-3.0 license, which NEO-JAMMA chose for the repository.

Can I test firmware for the ControllerToJamma without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
