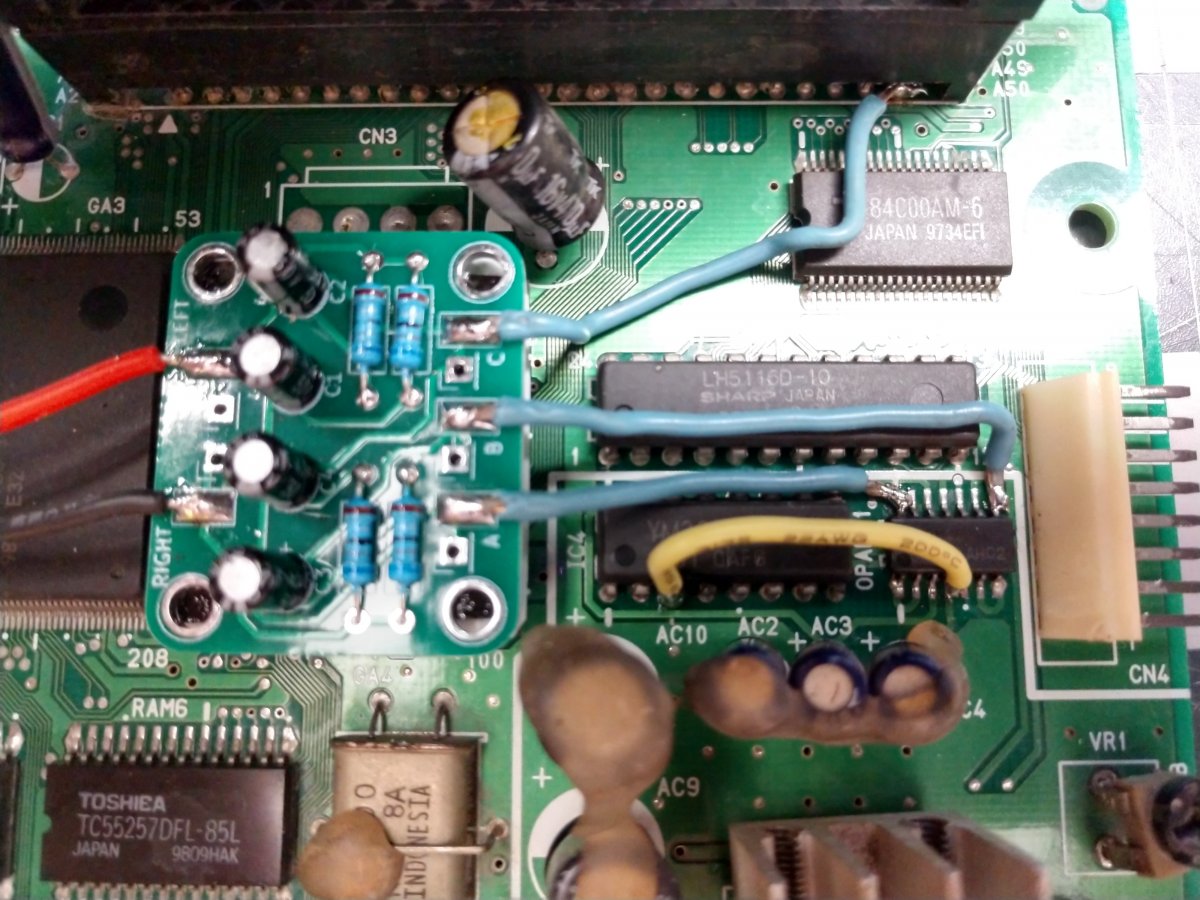

About the StereoMod PCB
StereoMod is an open source PCB design by NEO-JAMMA, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 30.6 × 26.1 mm, with 17 components from 8 distinct parts.
By type, the board carries 5 connectors, 4 capacitors and 4 resistors.
It belongs with the retro computing designs in this gallery.
From the project
Neo-Geo MVS Projects
THIS PROJECT IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL I BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THIS PROJECT.

StereoMod bill of materials (BOM)
17 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | A | Pin_Header_Straight_1x01_Pitch2.54mm | J1 |
| 1 | B | Pin_Header_Straight_1x01_Pitch2.54mm | J2 |
| 1 | C | Pin_Header_Straight_1x01_Pitch2.54mm | J3 |
| 1 | LEFT | Pin_Header_Straight_1x01_Pitch2.54mm | J4 |
| 1 | RIGHT | Pin_Header_Straight_1x01_Pitch2.54mm | J5 |
| 4 | Conn_01x01 | 1pin | H1, H2, H3, H4 |
| 4 | 4.7u | CP_Radial_D4.0mm_P2.00mm | C1, C2, C3, C4 |
| 4 | 6.8k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4 |
StereoMod design files
The KiCad project lives in the NEO-JAMMA/Neo-Geo_MVS_Projects repository on GitHub; these links point at the commit this page was built from.
StereoMod: common questions
How big is the StereoMod PCB?
The StereoMod measures 30.6 × 26.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the StereoMod?
17 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the StereoMod design files?
From the NEO-JAMMA/Neo-Geo_MVS_Projects repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the StereoMod design in my own project?
Yes, under the terms of its GPL-3.0 license, which NEO-JAMMA chose for the repository.
