EspToGbs

NEO-JAMMA·Neo-Geo_MVS_Projects·Esp8266ToGbs8200/Kicad/EspToGbs.kicad_pcb

EspToGbs PCB layout, top view — open source board by NEO-JAMMA
Simulate this board

About the EspToGbs PCB

EspToGbs is an open source PCB design by NEO-JAMMA, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 48.8 × 31.3 mm, with 4 components from 4 distinct parts.

Other key parts include the WeMos_mini. By type, the board carries 3 connectors and 1 IC.

It belongs with the retro computing designs in this gallery.

From the project

Neo-Geo MVS Projects

THIS PROJECT IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL I BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THIS PROJECT.

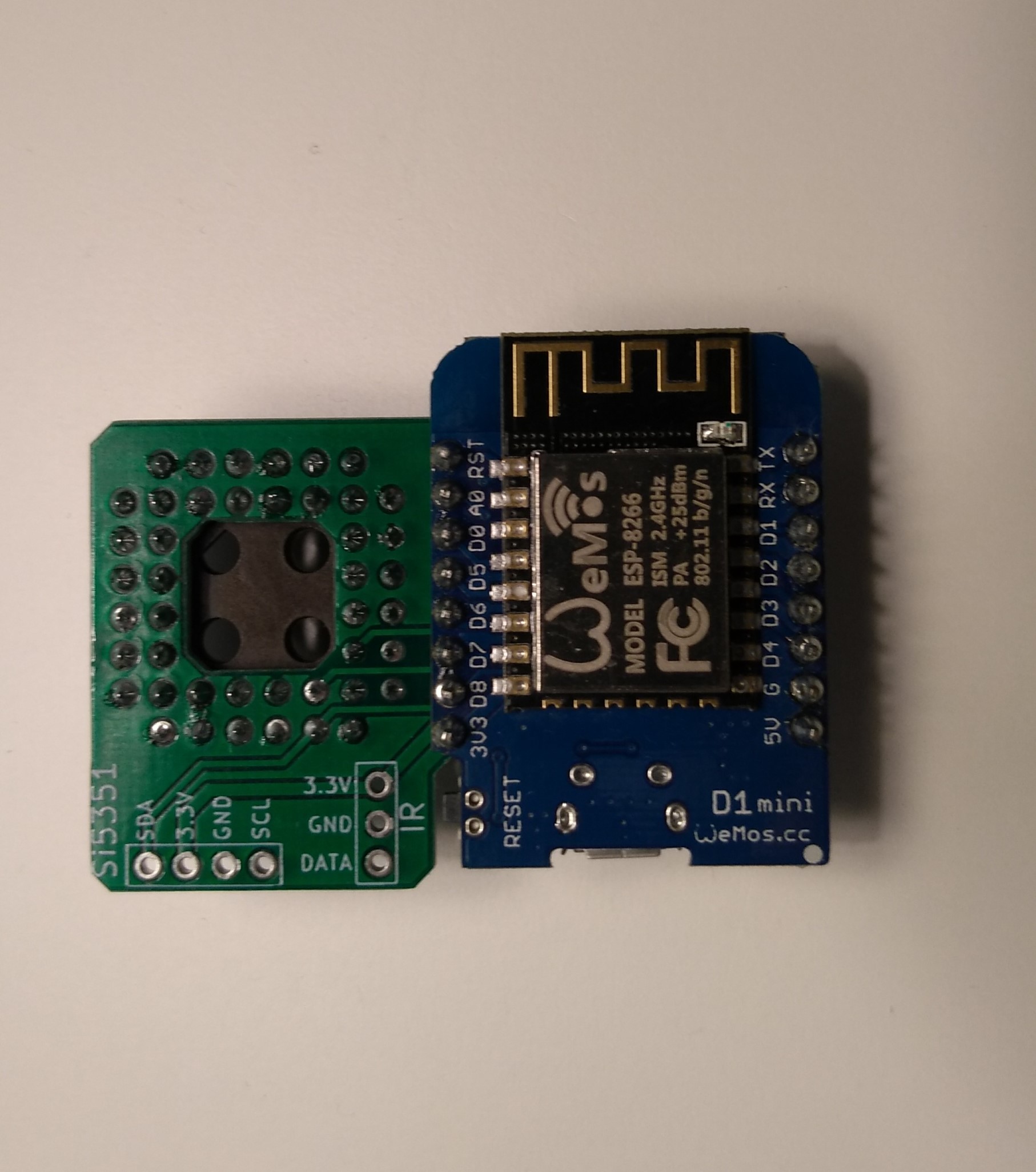

EspToGbs, from the project README
From the project README

Main components on the EspToGbs

EspToGbs bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
WeMos_mini
U1
1
PLCC-44
J1
1
Conn_01x04
J2
1
Conn_01x03
J4
