USB-C-Portable-PSU PCB layout, top view — open source STM32 board by Ng-Chen-Xuan

About the USB-C-Portable-PSU PCB

USB-C-Portable-PSU is an open source STM32 PCB design by Ng-Chen-Xuan, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 58 × 58 mm, with 151 components from 34 distinct parts.

Its main chip is the STM32G030K8T6, from the STM32 family. Other key parts include the HUSB238A-XXXXX-QN16R, SY8303AIC, TPS55289RYQR and IS31FL3731-QF. By type, the board carries 65 diodes, 41 resistors, 24 capacitors, 6 switches, 5 ICs and 5 connectors.

It belongs with the power & battery and displays & leds designs in this gallery.

From the project

USB-C PD powered variable power supply

The USB-C-Portable-PSU Project is a portable variable power supply designed using KiCad v10.

The PCB was designed with a 4 layer stackup of SIG + PWR / GND / GND / PWR + SIG.

This PCB design serves as both an introduction to power electronics design, as well as a practical tool for hobbyist. Theoretical design practices learnt such as minimising trace inductance, buck-boost converter topology and USB-PD design can be tested in real-life conditions; Practice in programming an LED matrix display and experimentation of the STM32 ecosystem can be gained too.

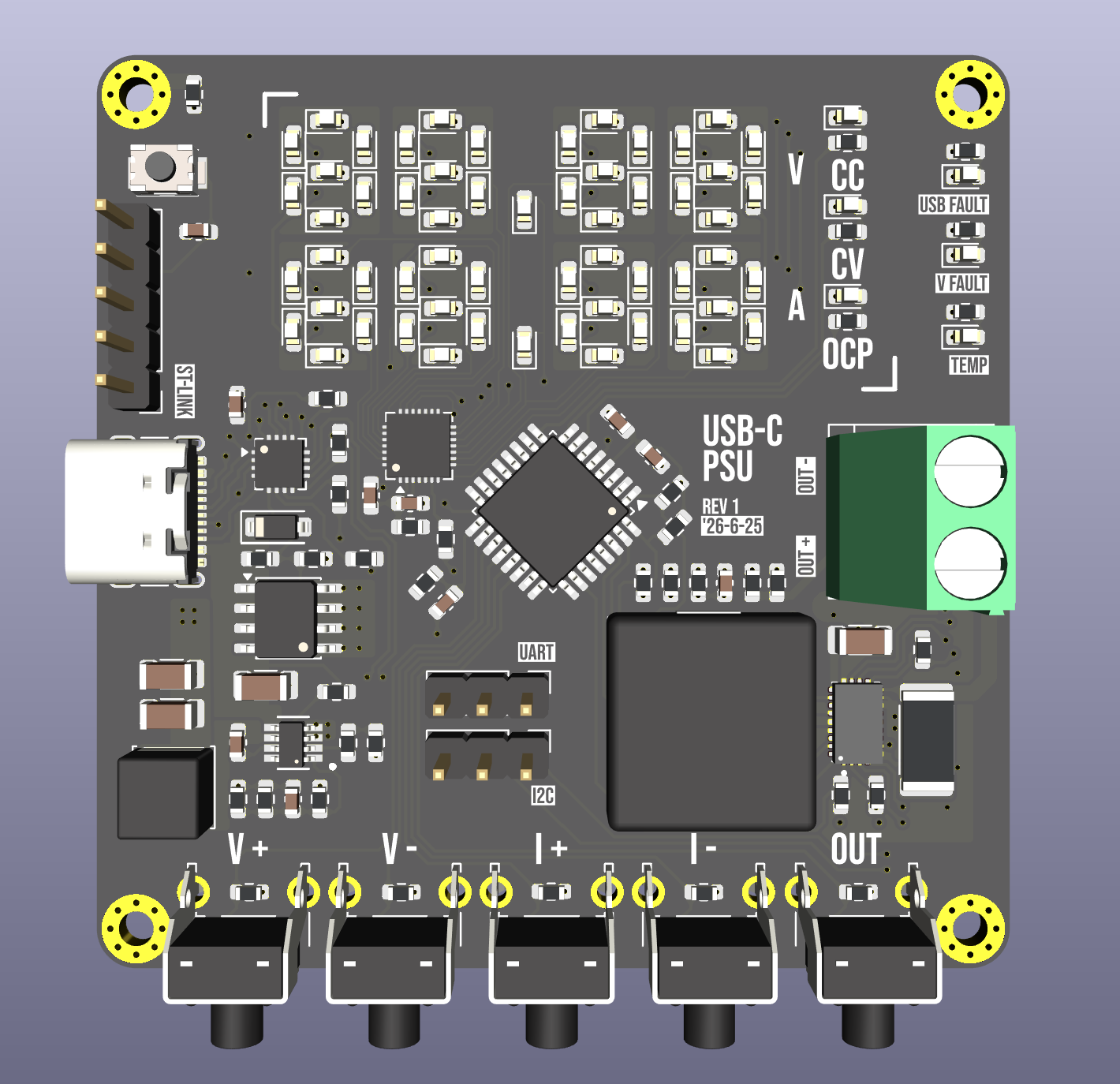

USB-C-Portable-PSU, from the project README
