StarTrckr PCB layout, top view — open source RP2040/RP2350 board by NikodemBartnik

About the StarTrckr PCB

StarTrckr is an open source RP2040/RP2350 PCB design by NikodemBartnik, published on GitHub. It is a 2-layer board measuring 76.2 × 69.9 mm, with 57 components from 36 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the LM1117-3.3, W25Q32JVSS and TMC2209. By type, the board carries 17 capacitors, 10 connectors, 10 jumpers, 9 resistors, 3 ICs and 3 modules.

It belongs with the robotics & motion designs in this gallery.

From the project

Open source star tracker for deep sky astrophotography

Project is still in development and it may change! Welcome to the StarTrckr project, an innovative solution to the problem of tracking in astrophotography. The goal of this project is to get over the limits of conventional tracking techniques so that hobbyists and enthusiasts can more easily take beautiful pictures of the night sky. Additionaly this construction enables for easier tracking of other objects (for example satellites) but the feature is not implemented yet.

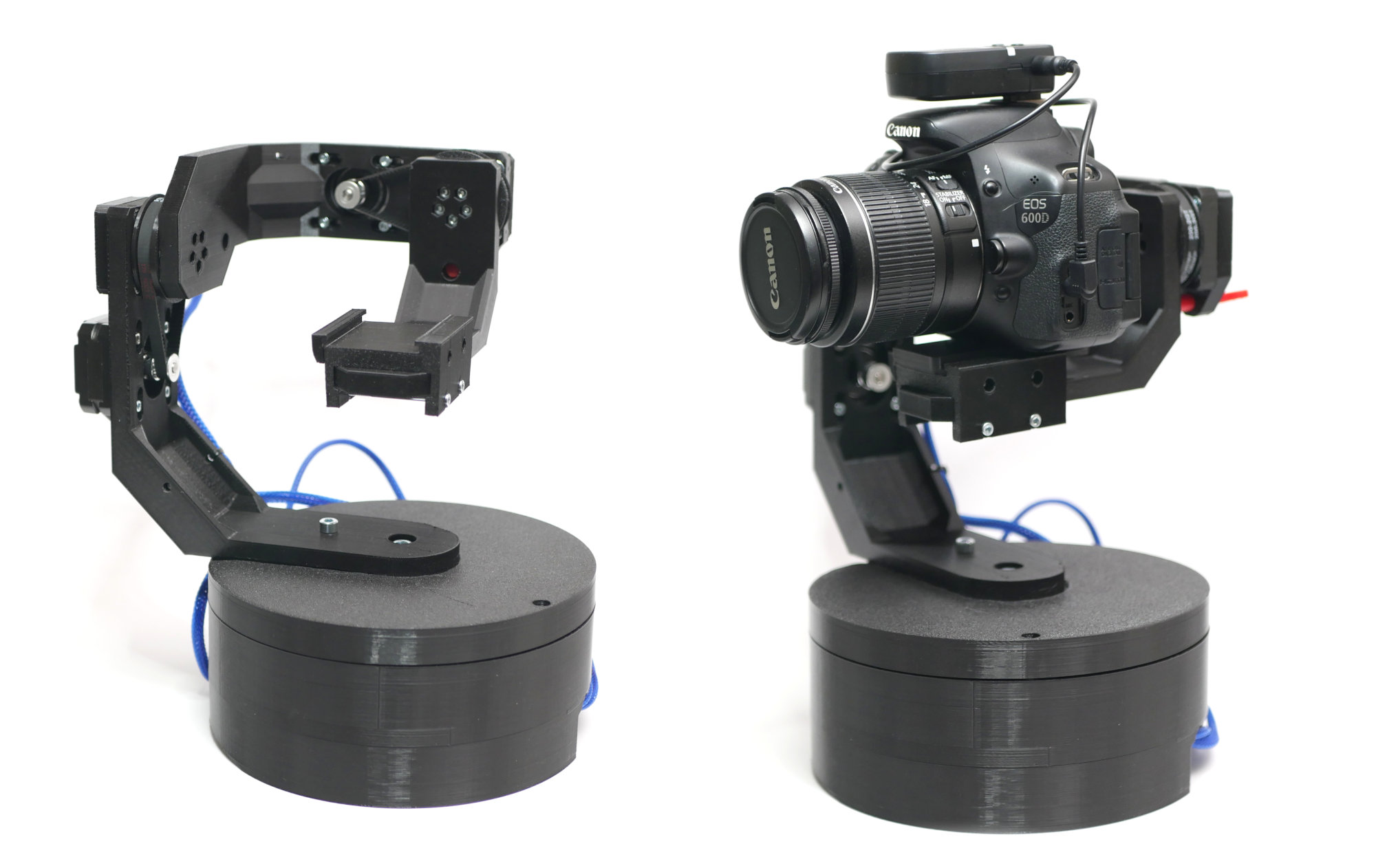

StarTrckr, from the project README
From the project README

Main components on the StarTrckr

RP2040LM1117-3.3W25Q32JVSSTMC2209

StarTrckr bill of materials (BOM)

57 components, 36 distinct parts.

QtyPartRefs
1
RP2040
U1
1
LM1117-3.3
U2
1
W25Q32JVSS
U3
3
TMC2209
A1, A2, A3
1
12MHz
Y1
1
USB_B
J1
1
M1
J2
1
Micro_SD_Card
J3
1
12V
J4
1
USB_BOOT
J5
1
LS1
J6
1
LS2
J7
1
LS3
J8
1
M2
J9
1
M3
J10
1
Buzzer
BZ1
1
M1_MS1
JP1
1
M1_MS2
JP2
1
M1_MS3
JP3
1
J_BUZZ
JP4
Show 16 more
QtyPartRefs
1
M2_MS1
JP5
1
M2_MS2
JP6
1
M2_MS3
JP7
1
M3_MS1
JP8
1
M3_MS2
JP9
1
M3_MS3
JP10
3
LED
D1, D2, D3
3
10u
C1, C2, C3
2
27p
C4, C5
10
100n
C6, C7, C9, C10, C12, C13, C14, C15 +2
2
1u
C8, C11
3
100
R4, R5, R6
1
10k
R7
2
27
R8, R9
1
1k
R10
2
R
R11, R12

StarTrckr design files

The KiCad project lives in the NikodemBartnik/StarTrckr repository on GitHub; these links point at the commit this page was built from.

StarTrckr: common questions

What microcontroller does the StarTrckr use?

The StarTrckr is built around the RP2040, from the RP2040/RP2350 family.

How big is the StarTrckr PCB?

The StarTrckr measures 76.2 × 69.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the StarTrckr?

57 components, from 36 distinct parts. The full bill of materials is listed on this page.

Where can I download the StarTrckr design files?

From the NikodemBartnik/StarTrckr repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the StarTrckr design in my own project?

The repository has no license, so all rights stay with NikodemBartnik. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the StarTrckr without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
