Voyager pad PCB layout, top view — open source RP2040/RP2350 board by NishthaSharma-22

About the Voyager pad PCB

Voyager pad is an open source RP2040/RP2350 PCB design by NishthaSharma-22, published on GitHub. It is a 2-layer board measuring 66.7 × 81 mm, with 9 components from 3 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 7 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

7 key mechanical macropad powered by SEEED XIAO RP2040

Voyagerpad is a 7 key macropad with an OLED Display.

Silkscreen image credit: Martin Melin – Voyager (via macpaint.org) ## CAD Model: The case was made in Autodesk Fusion.

Here is everything needed to make this macropad: - 1x XIAO RP2040 - 1x 0.91" 128x32 OLED Display - 7x Cherry MX Switches - 7x DSA Keycaps - 1x Case

The gerbers, case STEP files and firmware are all in /production for anyone who wants to make voyagerpad! :)

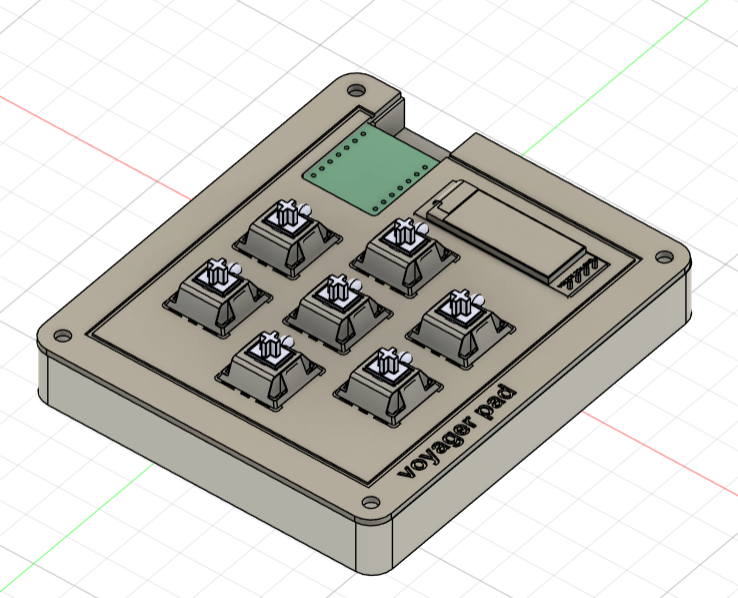

Voyager pad, from the project README
From the project README

Main components on the Voyager pad

XIAO-RP2040-DIP

Voyager pad bill of materials (BOM)

9 components, 3 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
Conn_01x04_Pin
J1
7
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7

Voyager pad design files

The KiCad project lives in the NishthaSharma-22/voyager-pad repository on GitHub; these links point at the commit this page was built from.

Voyager pad: common questions

What microcontroller does the Voyager pad use?

The Voyager pad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Voyager pad PCB?

The Voyager pad measures 66.7 × 81 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Voyager pad?

9 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Voyager pad design files?

From the NishthaSharma-22/voyager-pad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Voyager pad design in my own project?

The repository has no license, so all rights stay with NishthaSharma-22. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Voyager pad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
