Die carrier
About the Die carrier PCB
Die carrier is an open source PCB design by njcoburn, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 40 × 40 mm, with 34 components from 11 distinct parts.
Other key parts include the OIS_3X3_BARE_DIE_PROVISIONAL. By type, the board carries 24 connectors, 2 resistors, 1 IC and 1 capacitor.
It belongs with the sensors designs in this gallery.
From the project
OPENIMAGESENSOR - An open source image sensor.

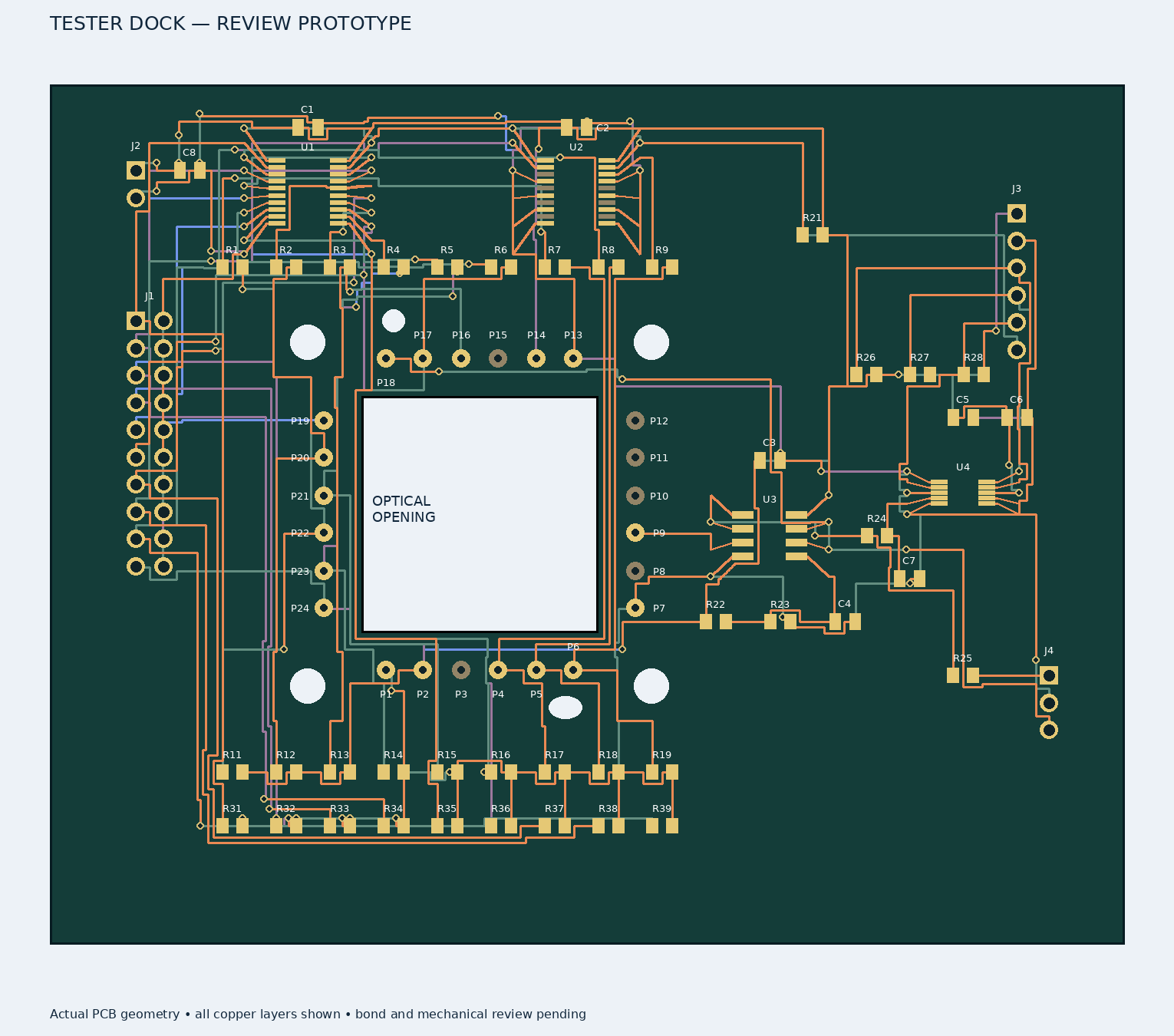

Prepared 19 September 2026. Two editable KiCad 7 projects implement the provisional 40 × 40 mm carrier and a tester with an optical aperture. Engineering review prototype; not released for fabrication.
Your existing KiCad installation is sufficient (KiCad 7 or newer). Copy the entire hardware/carrier folder to Windows, or extract the accompanying openimagesensor-kicad-review.zip. Open these project files from KiCad's File → Open Existing Project:
Main components on the Die carrier
Die carrier bill of materials (BOM)
34 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OIS_3X3_BARE_DIE_PROVISIONAL OIS_3x3_BARE_DIE_PROVISIONAL | Bond_3x3_PROVISIONAL | U1 |
| 24 | POGO_TARGET | Target_2p4 | P1, P2, P3, P4, P5, P6, P7, P8 +16 |
| 1 | M3 clearance | Mechanical_1 | H1 |
| 1 | M3 clearance | Mechanical_2 | H2 |
| 1 | M3 clearance | Mechanical_3 | H3 |
| 1 | M3 clearance | Mechanical_4 | H4 |
| 1 | Alignment round | Mechanical_5 | H5 |
| 1 | Alignment slot | Mechanical_6 | H6 |
| 1 | 100N 100n | Capacitor_SMD_C_0805_2012Metric | C1 |
| 1 | 5.1M 1% | Resistor_SMD_R_0805_2012Metric | R1 |
| 1 | 49.9k 1% | Resistor_SMD_R_0805_2012Metric | R2 |
