Valvedrivers
About the Valvedrivers PCB
Valvedrivers is an open source STM32 PCB design by npgo22, published on GitHub. It is a 4-layer board measuring 85 × 76 mm, with 148 components from 37 distinct parts.
Its main chip is the STM32H563RIV6, from the STM32 family. Other key parts include the LTV-816S-TA1-C, AP2112K-3.3TRG1, TJA1462ATK/0Z, LAN8742AI-CZ-TR and IPS4140HQ. By type, the board carries 57 resistors, 31 capacitors, 21 connectors, 19 diodes, 14 ICs and 3 fuses.
From the project
PCBs for APRL electrical

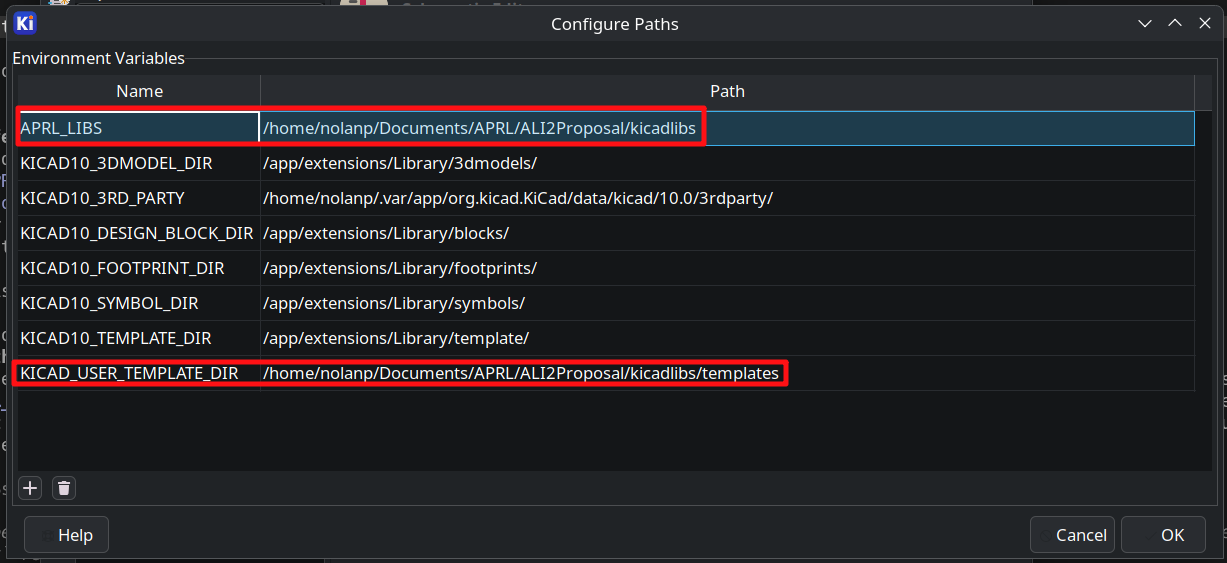

The projects here rely on APRLLIBS and KICADUSERTEMPLATEDIR being set. You can do this by:
1. Going to Preferences > Configure Paths... 2. Setting APRLLIBS to wherever you cloned this repo + /kicadlibs. 3. Setting KICADUSERTEMPLATEDIR to whatever you set in (2) + /templates
The ALI itself can continue to be used for years to come and this reworking of the electronics will not impact it at all. This is going to be its own separate electrical box altogether. The ALI has the following additional limitations, too: 1. Limited I/O 2. Bonded grounds between +24/12/5V power supplies 3. Unknown…
Main components on the Valvedrivers
Valvedrivers bill of materials (BOM)
148 components, 37 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32H563RIV6 | QFN-68-1EP_8x8mm_P0.4mm_EP6.4x6.4mm | U1 |
| 1 | LTV-816S-TA1-C LTV-816S | 4-SMD | U2 |
| 1 | AP2112K-3.3TRG1 AP2112K-3.3 | SOT-23-5 | U3 |
| 1 | TJA1462ATK/0Z TJA1462ATK | HVSON-8-1EP_3x3mm_P0.65mm_EP1.6x2.4mm_ThermalVias | U4 |
| 1 | LAN8742AI-CZ-TR LAN8742AI | VQFN-24-1EP_4x4mm_P0.5mm_EP2.5x2.5mm_ThermalVias | U5 |
| 3 | IPS4140HQ | QFN-48_EP_9.01x7.01_Pitch0.5mm | U6, U9, U12 |
| 6 | PS2841-4B-F3-AX PS2841-4B | SOIC-12 | U7, U8, U10, U11, U13, U14 |
| 2 | X1E0000210139 25 MHz | 3225-4P-L | Y1, Y2 |
| 1 | Conn_02x01 | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 2 | 503159-0501 Conn_01x05 | Molex_CLIK-Mate_503159-0501_1x05-1MP_P1.50mm_Vertical | J2, J7 |
| 1 | GT-USB-7051A USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_G-Switch_GT-USB-7051x | J3 |
| 3 | MSTBV 2,5/ 2-GF-5,08 Screw_Terminal_01x02 | PhoenixContact_MSTBV_2,5_2-GF-5,08_1x02_P5.08mm_Vertical_ThreadedFlange_MountHole | J4, J5, J6 |
| 1 | 503159-0301 Conn_01x03 | Molex_CLIK-Mate_503159-0301_1x03-1MP_P1.50mm_Vertical | J8 |
| 1 | HY951180A Vertical Ethernet | RJ45_Hanrun_HY951180A_Vertical | J9 |
| 12 | 503159-0201 Conn_01x02 | Molex_CLIK-Mate_503159-0201_1x02-1MP_P1.50mm_Vertical | J10, J11, J12, J13, J14, J15, J16, J17 +4 |
| 2 | 0805L050WR 500mA | Fuse_0805_2012Metric | F1, F3 |
| 1 | 178.6165.0001 10A hold | FuseHolder_Blade_ATO_Littelfuse_FLR_178.6165 | F2 |
| 1 | SKRPANE010 | SKRPANE010 | SW1 |
| 7 | LED | LED_0603 | D1, D2, D3, D4, D5, D6, D7 |
| 12 | SMF4L33CA | D_SOD-123F | D8, D9, D10, D11, D12, D13, D14, D15 +4 |
Show 17 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | GRM188D72A105KE01 1uF | C_0603 | C1, C18, C23 |
| 11 | GRM188R72A104KA35 100nF | C_0603 | C2, C3, C4, C5, C6, C7, C19, C20 +3 |
| 4 | GRM1885C2E150FW07 15pF | C_0603 | C8, C9, C27, C28 |
| 2 | GRM188R71A225KE15 2.2uF | C_0603 | C10, C11 |
| 6 | GRM21BZ71A226ME15 22uF | C_0805 | C12, C13, C14, C15, C16, C17 |
| 1 | GRM1885C1H471JA01 470pF | C_0603 | C24 |
| 1 | GRM188R71H224KAC4 220nF | C_0603 | C26 |
| 3 | A767KS476M1JLAE036 47uF | KEMET MU VIB | C29, C30, C31 |
| 2 | RC0603FR-074K7L 4.7k | R_0603 | R1, R2 |
| 2 | RC0603FR-07150KL 150k | R_0603 | R3, R4 |
| 32 | RC0603FR-0710KL 10k | R_0603 | R5, R6, R7, R8, R9, R10, R17, R19 +24 |
| 1 | AC0603FR-07120RL 120R | R_0603 | R11 |
| 1 | RC0603FR-071K5L 1.5k | R_0603 | R12 |
| 4 | RC0603FR-0747RL 47R | R_0603 | R13, R14, R15, R16 |
| 1 | RT0603BRD0712K1L 12.1k | R_0603 | R18 |
| 2 | RC0603FR-07330RL 330R | R_0603 | R20, R21 |
| 12 | RT0603BRD071KL 1k | R_0603 | R22, R23, R28, R29, R34, R35, R40, R41 +4 |
Valvedrivers design files
The KiCad project lives in the npgo22/APRL-Electrical repository on GitHub; these links point at the commit this page was built from.
Valvedrivers: common questions
What microcontroller does the Valvedrivers use?
The Valvedrivers is built around the STM32H563RIV6, from the STM32 family.
How big is the Valvedrivers PCB?
The Valvedrivers measures 85 × 76 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Valvedrivers?
148 components, from 37 distinct parts. The full bill of materials is listed on this page.
Where can I download the Valvedrivers design files?
From the npgo22/APRL-Electrical repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Valvedrivers design in my own project?
The repository has no license, so all rights stay with npgo22. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Valvedrivers without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
