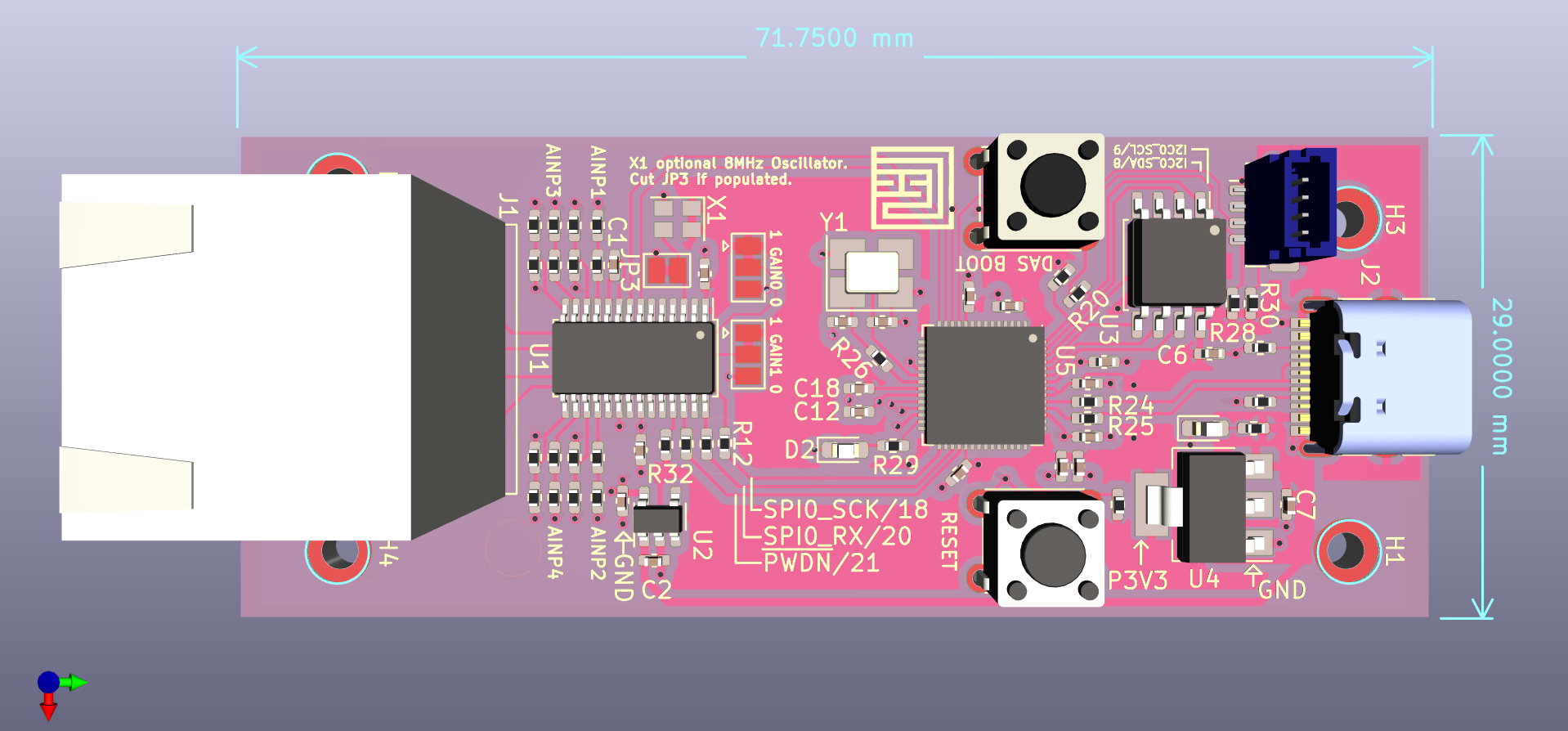

EMI-Hardened-Force-Sensor PCB layout, top view — open source RP2040/RP2350 board by nriaziat

About the EMI-Hardened-Force-Sensor PCB

EMI-Hardened-Force-Sensor is an open source RP2040/RP2350 PCB design by nriaziat, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 29 × 71.8 mm, with 68 components from 28 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the ADS1234IPW, TLV70245_SOT23-5, W25Q128JVS and NCP1117-3.3_SOT223. By type, the board carries 32 resistors, 19 capacitors, 5 ICs, 3 connectors, 3 jumpers and 2 crystals.

It belongs with the sensors designs in this gallery.

From the project

An Open Source PCB for force sensing with EMI-resistant strain gauges.

For more information about this project, please refer to our publication: Riaziat, Naveed D., et al. "Investigating Haptic Feedback in Vision-Deficient Millirobot Telemanipulation." IEEE Robotics and Automation Letters (2024). Designed for use with the Texas Measurment QMFLA-5-350-11-1LJAY-F and the RP2040. For maximum EMI resistance, we reccommend using twisted and shielded cabling as well as the included 3D printed housing with copper tape lining.

EMI-Hardened-Force-Sensor, from the project README
From the project README

Main components on the EMI-Hardened-Force-Sensor

ADS1234IPWTLV70245_SOT23-5W25Q128JVSNCP1117-3.3_SOT223RP2040

EMI-Hardened-Force-Sensor bill of materials (BOM)

68 components, 28 distinct parts.

QtyPartRefs
1
ADS1234IPW
U1
1
TLV70245_SOT23-5
U2
1
W25Q128JVS
U3
1
NCP1117-3.3_SOT223
U4
1
RP2040
U5
1
ECS-2520MV-080-BN-TR
X1
1
Crystal_GND24
Y1
1
MTJ-88TX1-FSD-LH
J1
1
USB_C_Receptacle_USB2.0
J2
1
Conn_01x04_MountingPin
J3
2
SolderJumper_3_Bridged12
JP1, JP2
1
SolderJumper_2_Bridged
JP3
2
SW_MEC_5E
SW1, SW2
2
LED
D1, D2
11
100N
C1, C3, C4, C6, C11, C12, C14, C16 +3
2
10U0
C2, C5
2
10uF
C7, C10
2
27P0
C8, C9
1
1U00
C13
1
1u
C15
Show 8 more
QtyPartRefs
14
330R
R1, R2, R4, R5, R6, R8, R9, R10 +6
4
20R0
R3, R7, R14, R18
3
47R0
R11, R12, R13
2
1K00
R20, R26
1
DNP
R21
2
5.1k
R22, R23
2
27R4
R24, R25
4
10K0
R27, R28, R30, R32

EMI-Hardened-Force-Sensor design files

The KiCad project lives in the nriaziat/EMI-Hardened-Force-Sensor-PCB repository on GitHub; these links point at the commit this page was built from.

EMI-Hardened-Force-Sensor: common questions

What microcontroller does the EMI-Hardened-Force-Sensor use?

The EMI-Hardened-Force-Sensor is built around the RP2040, from the RP2040/RP2350 family.

How big is the EMI-Hardened-Force-Sensor PCB?

The EMI-Hardened-Force-Sensor measures 29 × 71.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EMI-Hardened-Force-Sensor?

68 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the EMI-Hardened-Force-Sensor design files?

From the nriaziat/EMI-Hardened-Force-Sensor-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the EMI-Hardened-Force-Sensor design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which nriaziat chose for the repository.
