Internet of-Things-Power-Meter
About the Internet of-Things-Power-Meter PCB
Internet of-Things-Power-Meter is an open source ESP8266 PCB design by Nurgak, published on GitHub. It is a 2-layer board measuring 33 × 61 mm, with 9 components from 9 distinct parts.
Its main chip is the ESP-12, from the ESP8266 family. Other key parts include the AP1117T33 and FTDI. By type, the board carries 3 ICs, 2 switches, 1 diode, 1 capacitor and 1 resistor.
It belongs with the iot & wireless designs in this gallery.
From the project
Device to view household power consumption

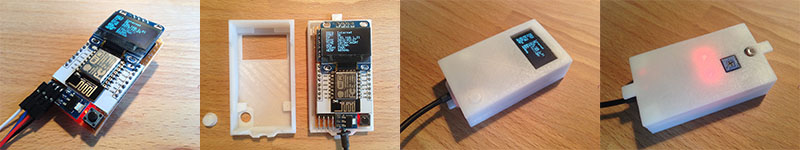

The Internet-of-Things Power Meter (IPM) is a device fixed on top of the regular household power meter and provides detailed information about the electricity usage. Modern power meters have a LED blinking every time a Watt is used, the IPM detects these flashes using a light sensor, counts them and saves the values to an SD card. Later the data is stored on the cloud.
Main components on the Internet of-Things-Power-Meter
Internet of-Things-Power-Meter bill of materials (BOM)
9 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP-12 | ESP8266-12E_breakout | U1 |
| 1 | AP1117T33 | 5-3V3_LDO | U2 |
| 1 | FTDI | FTDI | U3 |
| 1 | LightSensor | LightSensor | S1 |
| 1 | MicroSD | uSD_card_reader | SD1 |
| 1 | SW_PUSH | Button | SW1 |
| 1 | OLED | OLED | D1 |
| 1 | Power_connector | Power_connector | C1 |
| 1 | R | Resistor_Horizontal_RM10mm | 10K2 |
Internet of-Things-Power-Meter design files
The KiCad project lives in the Nurgak/Internet-of-Things-Power-Meter repository on GitHub; these links point at the commit this page was built from.
Internet of-Things-Power-Meter: common questions
What microcontroller does the Internet of-Things-Power-Meter use?
The Internet of-Things-Power-Meter is built around the ESP-12, from the ESP8266 family.
How big is the Internet of-Things-Power-Meter PCB?
The Internet of-Things-Power-Meter measures 33 × 61 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Internet of-Things-Power-Meter?
9 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Internet of-Things-Power-Meter design files?
From the Nurgak/Internet-of-Things-Power-Meter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Internet of-Things-Power-Meter design in my own project?
The repository has no license, so all rights stay with Nurgak. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Internet of-Things-Power-Meter without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
