nyarurato·RRFExtRP2040Board

RRFExtRP2040Board PCB layout, top view — open source RP2040/RP2350 board by nyarurato

About the RRFExtRP2040Board PCB

RRFExtRP2040Board is an open source RP2040/RP2350 PCB design by nyarurato, published on GitHub. It is a 2-layer board measuring 100 × 95 mm, with 86 components from 40 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the MCP2518FD-E/SL, MCP2542FD-E/SN, AMS1117-3.3, LTV-217 and XL1509-5.0. By type, the board carries 30 resistors, 18 capacitors, 14 diodes, 9 connectors, 6 ICs and 2 transistors.

From the project

DIY Duet3 Extension Board

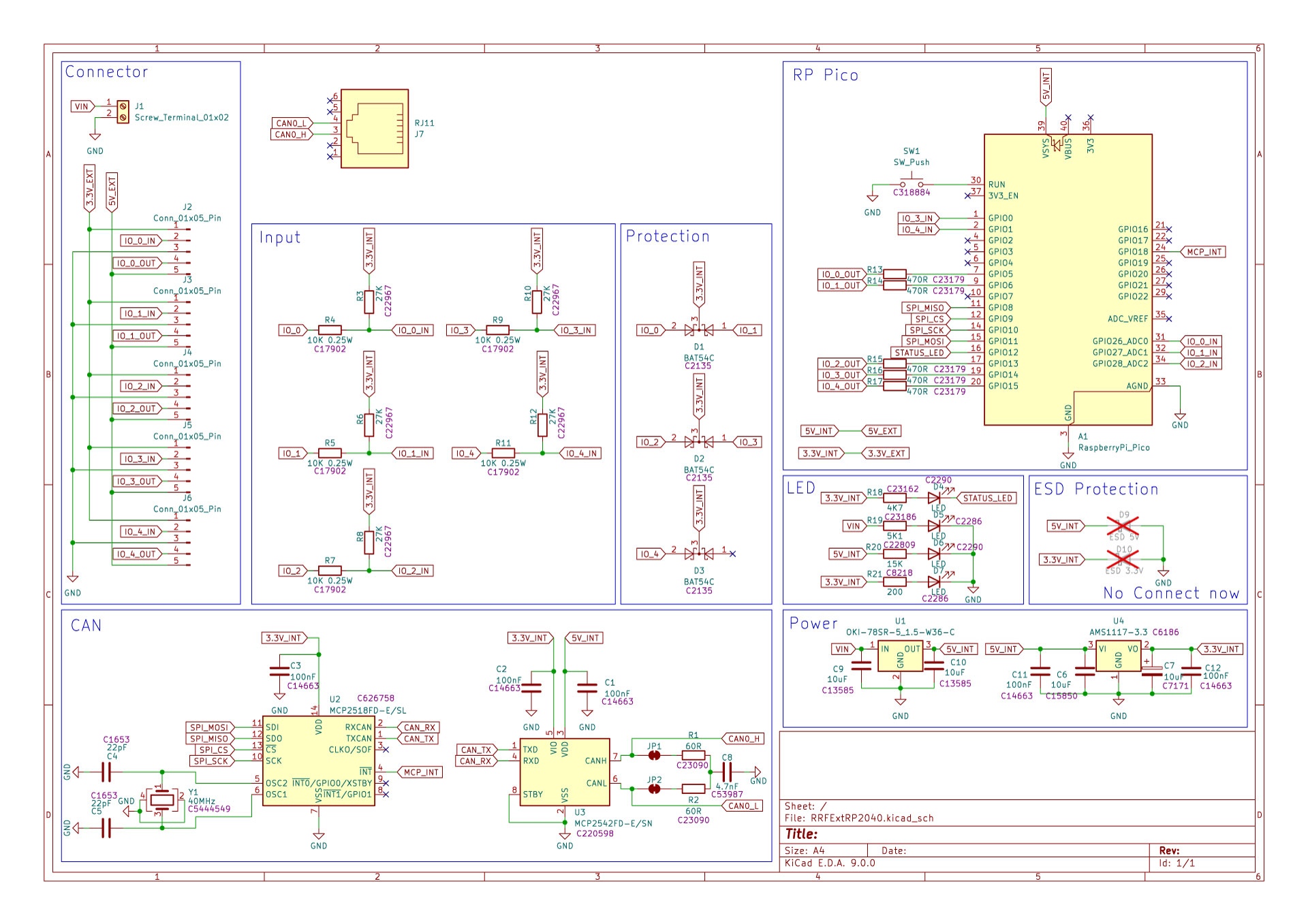

RRFExtRP2040Board, from the project README
From the project README

Main components on the RRFExtRP2040Board

MCP2518FD-E/SLMCP2542FD-E/SNAMS1117-3.3LTV-217XL1509-5.0RaspberryPi_Pico

RRFExtRP2040Board bill of materials (BOM)

86 components, 40 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP2518FD-E/SL
U2
1
MCP2542FD-E/SN
U3
1
AMS1117-3.3
U4
2
LTV-217
U5, U6
1
XL1509-5.0
U7
1
RaspberryPi_Pico
A1
2
AO3400A
Q1, Q2
1
YSO110TR
Y2
1
CONN_01X02_PIN
Conn_01x02_Pin
J1
5
CONN_01X05_PIN
Conn_01x05_Pin
J2, J3, J4, J5, J6
1
RJ11
J7
1
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
J8
1
CONN_01X02_PIN
Conn_01x02_Pin
J9
1
Fuse 1A
F1
2
G5Q-EL3-DC24V
K1, K2
1
SW_Push
SW1
3
BAT54C
D1, D2, D3
2
LED
D4, D6
3
LED
D5, D7, D9
2
SS34
D8, D10
Show 20 more
QtyPartRefs
1
B5819W
D11
1
ESD2CAN24DBZRQ1
D12
2
SM4007
D13, D14
1
68UH
68uh
L1
7
100NF
100nF
C1, C2, C3, C4, C9, C11, C12
6
10UF
10uF
C6, C10, C13, C14, C15, C18
2
10UF
10uF
C7, C19
1
4.7NF
4.7nF
C8
2
100UF
100uF
C16, C17
2
60R
R1, R2
5
27K
R3, R6, R8, R10, R12
5
C17936
4K7 0.25W
R4, R5, R7, R9, R11
5
470R
R13, R14, R15, R16, R17
3
4K7
R18, R22, R30
1
10K
R19
1
15K
R20
3
390R
R21, R24, R27
1
47K
R23
2
10K
R25, R29
2
2.2K
R26, R28

RRFExtRP2040Board design files

The KiCad project lives in the nyarurato/RRFExtRP2040Board repository on GitHub; these links point at the commit this page was built from.

RRFExtRP2040Board: common questions

What microcontroller does the RRFExtRP2040Board use?

The RRFExtRP2040Board is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the RRFExtRP2040Board PCB?

The RRFExtRP2040Board measures 100 × 95 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RRFExtRP2040Board?

86 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RRFExtRP2040Board design files?

From the nyarurato/RRFExtRP2040Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RRFExtRP2040Board design in my own project?

The repository has no license, so all rights stay with nyarurato. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RRFExtRP2040Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
