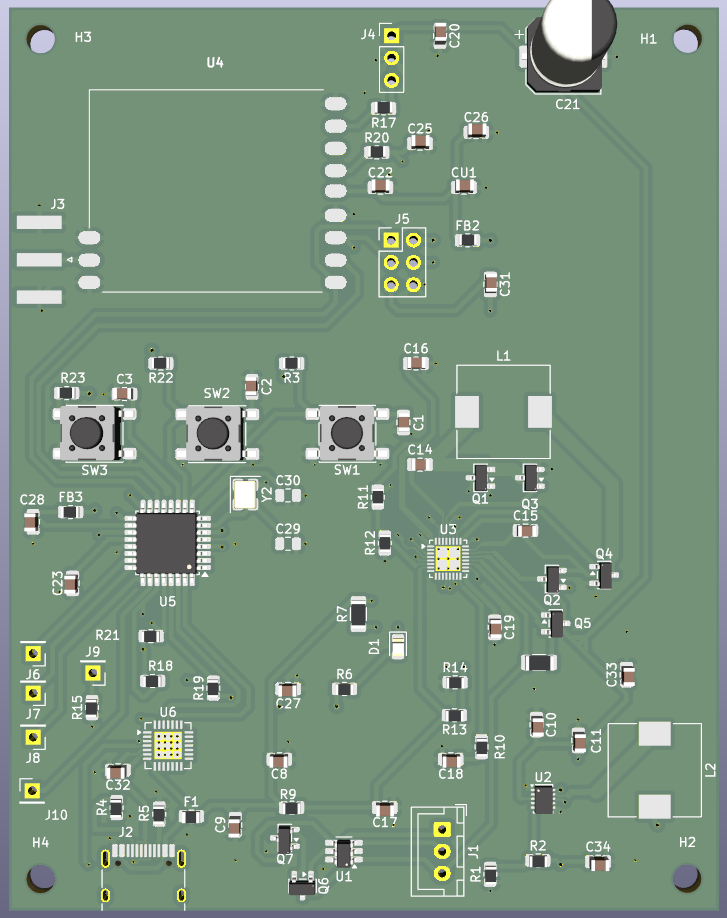

Rx5808-video receiver PCB layout, top view — open source AVR/Arduino board by nykleban

About the Rx5808-video receiver PCB

Rx5808-video receiver is an open source AVR/Arduino PCB design by nykleban, published on GitHub. It is a 4-layer board measuring 80.7 × 102.7 mm, with 81 components from 47 distinct parts.

Its main chip is the ATMEGA328P-A, from the AVR/Arduino family. Other key parts include the HY2120-CB, TPS62175DQC, BQ25703ARSNR, RX5808 and CP2102N-A02-GQFN28. By type, the board carries 25 capacitors, 22 resistors, 10 connectors, 7 transistors, 6 ICs and 4 inductors.

It belongs with the usb & debug tools designs in this gallery.

From the project

Проєкт: апаратно-програмний комплекс для прийому аналогового FPV-відеосигналу 5.8 GHz та сканування радіочастотного спектра в реальному часі.

Проєкт: апаратно-програмний комплекс для прийому аналогового FPV-відеосигналу 5.8 GHz та сканування радіочастотного спектра в реальному часі.

Цей репозиторій містить вихідний код прошивки, десктопного додатку та файли проєкту друкованої плати для розумного FPV-приймача. Система побудована на базі мікроконтролера ATmega328P, високочастотного модуля RX5808 та розширеної системи керування живленням для забезпечення стабільних аналогових вимірювань.

Rx5808-video receiver, from the project README
From the project README

Main components on the Rx5808-video receiver

HY2120-CBTPS62175DQCBQ25703ARSNRRX5808ATMEGA328P-ACP2102N-A02-GQFN28

Rx5808-video receiver bill of materials (BOM)

81 components, 47 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
HY2120-CB
U1
1
TPS62175DQC
U2
1
BQ25703ARSNR
U3
1
RX5808
U4
1
ATMEGA328P-A
ATmega328P-A
U5
1
CP2102N-A02-GQFN28
U6
5
AO3400A
Q1, Q2, Q3, Q4, Q5
2
IRLML6244
Q6, Q7
1
CRYSTAL_GND24
Crystal_GND24
Y2
1
JST-XH 3-pin
J1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J2
1
Conn_Coaxial
J3
1
Video_Out
J4
1
AVR ICSP
J5
5
Conn_01x01
J6, J7, J8, J9, J10
1
100NF
100nF
CU1
1
C2840556
Polyfuse_Small
F1
3
SW_Push
SW1, SW2, SW3
1
C84260
LED_Small
D1
2
C21519
600Ω @ 100MHz
FB2, FB3
Show 27 more
QtyPartRefs
1
C10164
2.2µH
L1
1
4.7UH
4.7uH
L2
12
100NF
100nF
C1, C2, C3, C8, C11, C20, C23, C25 +4
2
C7469956
10µF
C9, C26
1
C602037
22µF
C10
2
47NF
47nF
C14, C15
1
C98195
4.7µF
C16
1
C1791
1µF
C17
1
22NF
22nF
C18
1
150PF
150pF
C19
1
C136294
220µF
C21
1
10NF
10nF
C22
1
4.7UF
4.7uF
C33
1
22UF
22uF
C34
1
32K
R1
1
100K
R2
8
10K
R3, R13, R14, R18, R19, R21, R22, R23
2
5.1K
R4, R5
1
1K
R6
2
10M
10m
R7, R8
1
10R
R9
1
2.2K
R10
1
137K
R11
1
26.7K
R12
1
150
R15
1
22R
R17
1
C844939
1К
R20

Rx5808-video receiver design files

The KiCad project lives in the nykleban/rx5808-video-receiver repository on GitHub; these links point at the commit this page was built from.

Rx5808-video receiver: common questions

What microcontroller does the Rx5808-video receiver use?

The Rx5808-video receiver is built around the ATMEGA328P-A, from the AVR/Arduino family.

How big is the Rx5808-video receiver PCB?

The Rx5808-video receiver measures 80.7 × 102.7 mm, has 4 copper layers and is 1.5532 mm thick.

How many components are on the Rx5808-video receiver?

81 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rx5808-video receiver design files?

From the nykleban/rx5808-video-receiver repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rx5808-video receiver design in my own project?

The repository has no license, so all rights stay with nykleban. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rx5808-video receiver without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
