About the Next-FDC PCB
Next-FDC is an open source PCB design by OldWer, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 96.7 × 81.5 mm, with 48 components from 29 distinct parts.
Other key parts include the 74LS04, UPD765, SED9420, 74LS00 and 74HC138. By type, the board carries 14 resistors, 13 capacitors, 7 ICs, 5 connectors, 4 diodes and 3 switches.
It belongs with the test & measurement designs in this gallery.
From the project

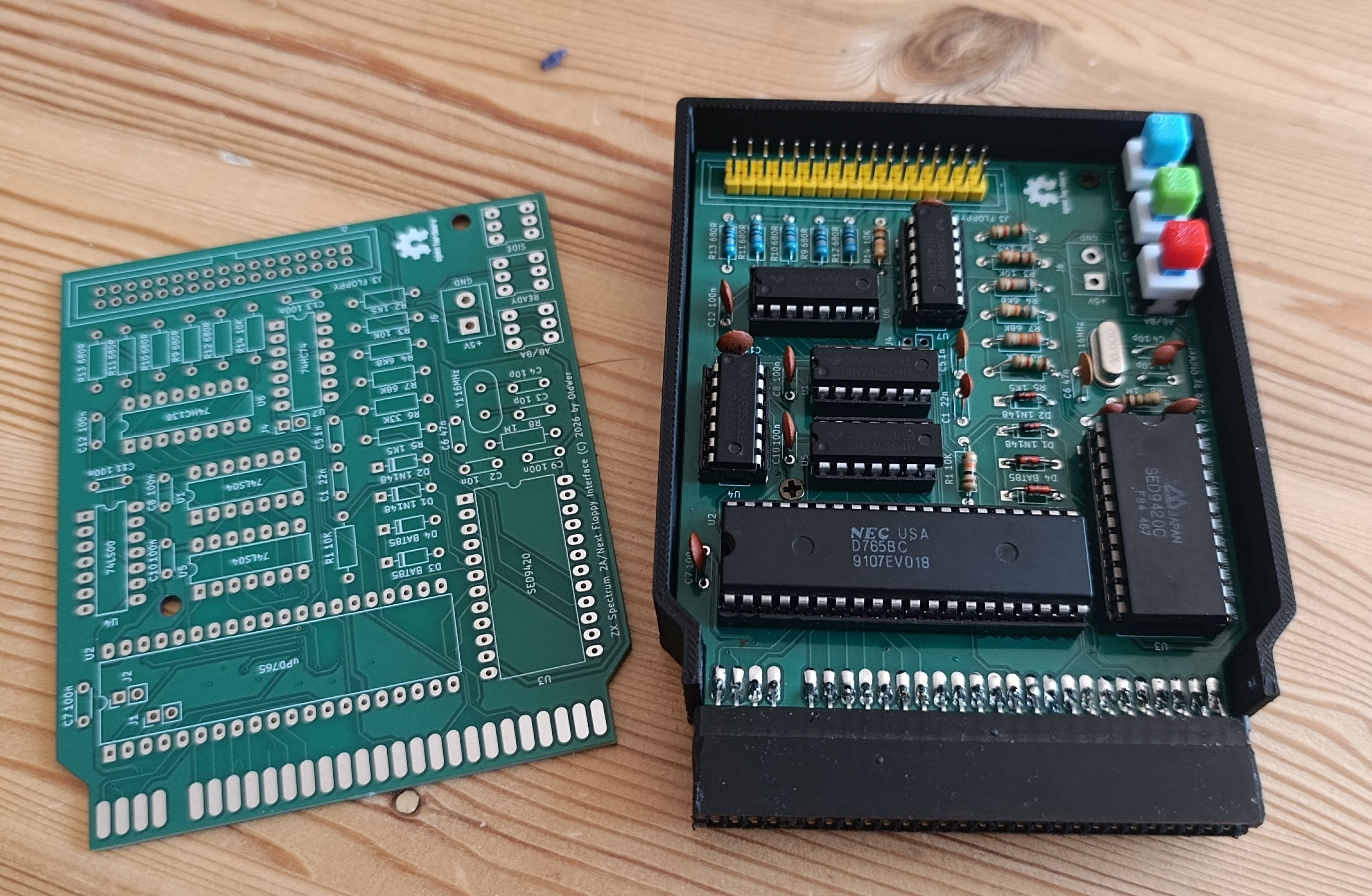

A floppy drive controller for the ZX Spectrum Next
All these buttons can be used when the computer is switched on (obviously not in the middle of a disk operation). ## General remarks To use two IBM floppy drives, please use a floppy cable with the twist. To use a Gotek and an IBM drive, set the Gotek to DS1 and use a cable with the twist. Please note that to use HD floppies you have to cover the HD hole (e.g. with a piece of self-adhesive tape). Many thanks to Allen Albright and Tim Gilberts from the ZX Spectrum Next FB group, who had helped me with configuring the Next to support the FDC. If in doubt, contact me at oldwer@op.pl, I will be…

Main components on the Next-FDC
Next-FDC bill of materials (BOM)
48 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74LS04 | DIP-14_W7.62mm_LongPads | U1, U5 |
| 1 | UPD765 | DIP-40_W15.24mm_LongPads | U2 |
| 1 | SED9420 | DIP-24_W15.24mm_LongPads | U3 |
| 1 | 74LS00 | DIP-14_W7.62mm_LongPads | U4 |
| 1 | 74HC138 | DIP-16_W7.62mm_LongPads | U6 |
| 1 | 74HC74 | DIP-14_W7.62mm_LongPads | U7 |
| 1 | 16MHZ 16MHz | Crystal_HC49-U_Vertical | Y1 |
| 3 | DRD_2A | PinHeader_1x02_P2.54mm_Vertical | J1, J2, J4 |
| 1 | Floppy | IDC-Header_2x17_P2.54mm_Vertical | J3 |
| 1 | Power | TerminalBlock_bornier-2_P5.08mm | J6 |
| 1 | AB/BA | SW_DPDT_XLX | SW1 |
| 1 | SIDE | SW_DPDT_XLX | SW2 |
| 1 | READY | SW_DPDT_XLX | SW3 |
| 1 | ZXBUS+2A/3` | ZX_CONN | Z1 |
| 2 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2 |
| 2 | BAT85 | D_DO-35_SOD27_P7.62mm_Horizontal | D3, D4 |
| 1 | 22NF 22nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1 |
| 1 | 10NF 10nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C2 |
| 2 | 10PF 10pF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C3, C4 |
| 1 | 1NF 1nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C5 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 47NF 47nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C6 |
| 7 | 100NF 100nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C7, C8, C9, C10, C11, C12, C13 |
| 3 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R3, R14 |
| 2 | 1K5 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R5 |
| 1 | 6K8 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 1 | 33K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R6 |
| 1 | 68K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7 |
| 1 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8 |
| 5 | 680R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R9, R10, R11, R12, R13 |
Next-FDC design files
The KiCad project lives in the OldWer/Next-FDC repository on GitHub; these links point at the commit this page was built from.
- LayoutNextFDC.kicad_pcb
- SchematicNextFDC.kicad_sch
- BOMbom/bom.csv
Next-FDC: common questions
How big is the Next-FDC PCB?
The Next-FDC measures 96.7 × 81.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Next-FDC?
48 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Next-FDC design files?
From the OldWer/Next-FDC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Next-FDC design in my own project?
Yes, under the terms of its CC0-1.0 license, which OldWer chose for the repository.
