IMX8MP-SOM-EVB

OLIMEX·iMX8MP-SOM-EVB·HARDWARE/iMX8MP-SOM-EVB-rev.b/iMX8MPLUS-SOM-EVB_Rev_B.kicad_pcb

IMX8MP-SOM-EVB PCB layout, top view — open source board by OLIMEX
Simulate this board

About the IMX8MP-SOM-EVB PCB

IMX8MP-SOM-EVB is an open source PCB design by OLIMEX, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 154.6 × 101.8 mm, with 317 components from 79 distinct parts.

Other key parts include the NA(RCLAMP0524P(SLP2510P8)), KSZ9031RNXIC-TR, MCP2562-E/SN(SOIC-8_150mil), NA(ESD5304D-10/TR) and SY6280AAC(SOT23-5). By type, the board carries 116 resistors, 96 capacitors, 19 ICs, 10 inductors, 9 diodes and 2 modules.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Development board for i.MX8MPlus System on Module

Development board for i.MX8MPlus System on Module with iMX8 SOC

https://www.olimex.com/Products/SOM/NXP-iMX8/iMX8MP-SOM-EVB-IND/

https://www.olimex.com/Products/SOM/NXP-iMX8/iMX8MP-SOM-4GB-IND/open-source-hardware

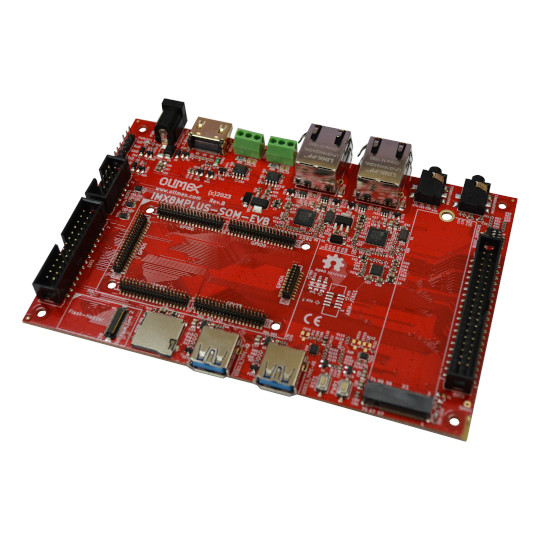

IMX8MP-SOM-EVB, from the project README
From the project README

Main components on the IMX8MP-SOM-EVB

NA(RCLAMP0524P(SLP2510P8))KSZ9031RNXIC-TRMCP2562-E/SN(SOIC-8_150mil)NA(ESD5304D-10/TR)SY6280AAC(SOT23-5)ES8388(QFN28)SN74LVC2T45DCUR(VSSOP-8)DSC557-0344FE1T(QFN-14)HN1x3

IMX8MP-SOM-EVB bill of materials (BOM)

317 components, 79 distinct parts.

QtyPartRefs
3
NA(RCLAMP0524P(SLP2510P8))
U1, U2, U3
2
KSZ9031RNXIC-TR
U4, U9
2
MCP2562-E/SN(SOIC-8_150mil)
U5, U10
4
NA(ESD5304D-10/TR)
U6, U7, U13, U14
2
SY6280AAC(SOT23-5)
U8, U12
1
ES8388(QFN28)
U11
4
SN74LVC2T45DCUR(VSSOP-8)
U15, U16, U17, U19
1
DSC557-0344FE1T(QFN-14)
U18
2
HN1x3
A53_DBG1, M7_DBG1
2
Q25MHz/20pF/20ppm/2P/5x3.2mm
Q1, Q2
1
SSD-M2(APCI0107-P001A)
X1
1
NA(HAB-VCR-010-LF)
ARM-JTAG1
1
DSHP04TS-S
BOOT_SWITCH1
1
SN74LVC1G126DBVR(SOT23-5)
BUF1
2
TB3-3.5mm
CAN1, CAN2
2
Opened
CAN_T1, CAN_T2
1
B-V-26-LF(GBH254SMT-26)
EXT1
1
P-B-V-40-LF
EXT2
14
BSS138(SOT23-3)
FET1, FET2, FET3, FET4, FET5, FET6, FET7, FET8 +6
1
IRLML6402(SOT-23)
FET13
Show 59 more
QtyPartRefs
1
FSMD035
FUSE1
1
NA(5025)
FUSE2
1
Flash_Con[DF12(3.0)-40DS-0.5V(86)]
Flash_Con1
5
MALE-PAV16X-2x20-HIGH
GPIO1, GPIO2, GPIO3, GPIO5, GPIO6
1
MALE-PAV16X-2x10-HIGH
GPIO4
1
HDMI-SWM-19
HDMI1
2
PJ-3.5-365-3P(SCJ325P00XG0B02G)
HEADPHONES1, MICROPHONE1
2
TM211Q01FM22
LAN1, LAN2
1
MICRO_SD(TFC-WPAPR-08)
MICRO_SD1
2
T1107A(6x3,8x2,5MM)
PWR1, RST1
1
PWRJ-2mm(YDJ-1134)
PWR_J1
2
RA0805_(4X0402)_4.7k
RM1, RM4
4
RA0805_(4X0402)_22R
RM2, RM3, RM5, RM6
1
RA0805_(4X0402)_22R
RM7
1
NA(LMUN2211LT1G(SOT-23))
T1
1
LMUN2235LT1G(SOT-23)
T2
4
ESDS314DBVR(SOT-23-5)
TVS1, TVS2, TVS3, TVS4
1
P-B-V-10-LF
UEXT1
2
USB-SWZ1BL-9A-LF
USB3.0_TYPE-A1, USB3.0_TYPE-A2
2
AMS1117-1.2(INDUSTRIAL)
VR1, VR2
1
LED/Red/0603
PWRLED1
1
LED/Yellow/0603
SSD-LED1
2
1N4007\SMA
D1, D6
3
1N5819S4/SOD123
D2, D5, D7
1
SMBJ6.0A
D3
3
NA(1N5819S4/SOD123)
D8, D9, D10
10
FB0805/600R/2A
L1, L2, L3, L4, L5, L6, L7, L8 +2
47
100nF/10V/10%/X7R/C0402
C1, C2, C5, C7, C8, C10, C11, C14 +39
2
1nF/2kV/10%/X7R/C1206
C3, C16
16
47uF/6.3V/20%/X5R/C0805
C4, C9, C12, C13, C19, C25, C38, C39 +8
11
22uF/6.3V/20%/X5R/C0603
C6, C21, C22, C26, C34, C35, C36, C45 +3
9
10uF/6.3V/20%/X5R/C0603
C24, C49, C60, C61, C62, C63, C70, C71 +1
4
33pF/50V/5%/COG/C0402
C32, C33, C50, C51
2
1uF/10V/10%/X5R/C0603
C40, C41
1
NA(100nF/10V/10%/X7R/C0402)
C68
1
3.3nF/50V/10%/X5R/C0402
C75
2
10nF/50V/10%/X7R/C0402
C88, C89
1
NA(47uF/6.3V/20%/X5R/C0805)
C98
2
27k/R0402
R1, R39
5
1.5k/R0402
R2, R3, R4, R43, R44
1
47k/R0402
R5
17
1k/R0402
R6, R7, R10, R13, R16, R19, R22, R23 +9
17
22R/R0402
R8, R9, R11, R12, R17, R18, R20, R21 +9
2
4.7k/R0402
R14, R83
17
10k/R0402
R15, R29, R33, R37, R47, R51, R54, R58 +9
4
330R/R0402
R30, R52, R59, R63
13
NA/R0402
R31, R45, R46, R48, R53, R57, R61, R72 +5
2
12.1k/1%/R0603
R32, R50
2
120R/R0603
R34, R55
1
NA(22R/R0402)
R38
12
2.2k/R0402
R41, R42, R82, R93, R94, R95, R96, R109 +4
2
120R/R1206
R56, R60
5
NA(10k/R0402)
R65, R68, R69, R70, R71
1
NA(R0402)
R75
1
10R/R0402
R80
5
100k/R0402
R89, R90, R91, R92, R107
1
NA(2.2k/R0402)
R97
4
49.9R/1%/R0402
R98, R99, R100, R101
2
NA(0R/R0402)
R121, R122

IMX8MP-SOM-EVB design files

The KiCad project lives in the OLIMEX/iMX8MP-SOM-EVB repository on GitHub; these links point at the commit this page was built from.

IMX8MP-SOM-EVB: common questions

How big is the IMX8MP-SOM-EVB PCB?

The IMX8MP-SOM-EVB measures 154.6 × 101.8 mm, has 4 copper layers and is 1 mm thick.

How many components are on the IMX8MP-SOM-EVB?

317 components, from 79 distinct parts. The full bill of materials is listed on this page.

Where can I download the IMX8MP-SOM-EVB design files?

From the OLIMEX/iMX8MP-SOM-EVB repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the IMX8MP-SOM-EVB design in my own project?

Yes, under the terms of its GPL-3.0 license, which OLIMEX chose for the repository.
