RT1010Py PCB layout, top view — open source NXP board by OLIMEX
Simulate this board

About the RT1010Py PCB

RT1010Py is an open source NXP PCB design by OLIMEX, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 25.4 × 53.3 mm, with 76 components from 37 distinct parts.

Its main chip is the MIMXRT1011DAE5A, from the NXP family. Other key parts include the EN25QH16B-104HIP, VDA2710NTA(SOT-23), SY6280AAC(SOT23-5), HX6211A332MR and SY8089AAAC(SOT23-5). By type, the board carries 36 capacitors, 15 resistors, 6 ICs, 4 inductors, 2 crystals and 2 connectors.

From the project

RT1010Py is Cortex-M7 running at 500Mhz MicroPython board

https://www.olimex.com/Products/MicroPython/RT1010-Py/open-source-hardware

The RT1010-Py can also be used together with its DevKit board

https://www.olimex.com/Products/MicroPython/RT1010Py-DevKit/open-source-hardware

The library must be copied on the MicroPython board before using some of the examples.

Copy all the files from OLIMEX/RT1010Py/lib repository to your MicroPython board under /lib directory.

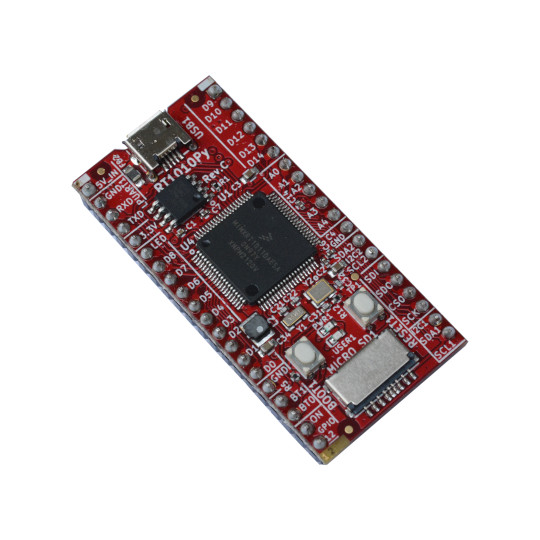

RT1010Py, from the project README
From the project README

Main components on the RT1010Py

EN25QH16B-104HIPVDA2710NTA(SOT-23)SY6280AAC(SOT23-5)MIMXRT1011DAE5AHX6211A332MRSY8089AAAC(SOT23-5)

RT1010Py bill of materials (BOM)

76 components, 37 distinct parts.

QtyPartRefs
1
EN25QH16B-104HIP
U1
1
VDA2710NTA(SOT-23)
U2
1
SY6280AAC(SOT23-5)
U3
1
MIMXRT1011DAE5A
U4
1
HX6211A332MR
U5
1
SY8089AAAC(SOT23-5)
U6
1
LMUN2211LT1G
Q1
1
32.768KHz/12.5pF/2P/1206
Y1
1
24MHz/20ppm/20pF/4P/3225
Y2
2
HN1X20
CON1, CON2
2
YTS-A016-X
BOOT1, RESET1
2
WPM2015-3/TR
FET1, FET2
1
uSD(TFC-9P-1.7H)
MICRO_SD1
1
FPV-WZB21-12-LF
UEXT1
1
MISB-SWMM-5B-LF
USB1
1
LED/Yellow/0603
PWR1
1
LED/Green/0603
USER1
1
1N5822/(SS34)/SMA
D1
2
FB0805/600R/2A
FB1, FB2
2
2.2uH/NRS3015T2R2MNGH
L1, L2
Show 17 more
QtyPartRefs
3
100nF/10V/20%/X5R/0402
C1, C8, C37
8
4.7uF/6.3V/0603
C2, C3, C15, C17, C18, C24, C25, C33
14
220nF/+80-20%/10VDC/0402
C4, C5, C6, C7, C9, C10, C12, C14 +6
3
10uF/6.3V/20%/X5R/0603
C13, C20, C23
3
22pF/NP0/5%/0402
C21, C22, C30
2
22uF/6.3V/20%/X5R/0603
C28, C34
2
33pF/50V/5%/C0G/0402
C31, C32
1
NA
C36
6
10K/0402
R1, R2, R4, R7, R11, R13
1
10K/1%
R3
2
100R/0402
R5, R6
1
30K/0402
R8
1
4.99K/1%
R9
1
1.1K/1%
R10
1
1M/0402
R12
1
2.2K/0402
R14
1
100K/0402
R15

RT1010Py design files

The KiCad project lives in the OLIMEX/RT1010Py repository on GitHub; these links point at the commit this page was built from.

RT1010Py: common questions

What microcontroller does the RT1010Py use?

The RT1010Py is built around the MIMXRT1011DAE5A, from the NXP family.

How big is the RT1010Py PCB?

The RT1010Py measures 25.4 × 53.3 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the RT1010Py?

76 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the RT1010Py design files?

From the OLIMEX/RT1010Py repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RT1010Py design in my own project?

Yes, under the terms of its GPL-3.0 license, which OLIMEX chose for the repository.

Can I test firmware for the RT1010Py without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
