Interfacing-Laptop-Battery-With-RaspberryPi
Simulate this board

About the Interfacing-Laptop-Battery-With-RaspberryPi PCB

Interfacing-Laptop-Battery-With-RaspberryPi is an open source Raspberry Pi PCB design by omarKmekkawy, published on GitHub. It is a board, with 25 components from 14 distinct parts.

Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. Other key parts include the B0505LS-1WR3, AMS1117-3.3, ADuM1250ARZ and ADS1115IDGS. By type, the board carries 8 capacitors, 7 resistors, 4 ICs, 4 connectors and 2 diodes.

It belongs with the power & battery designs in this gallery.

From the project

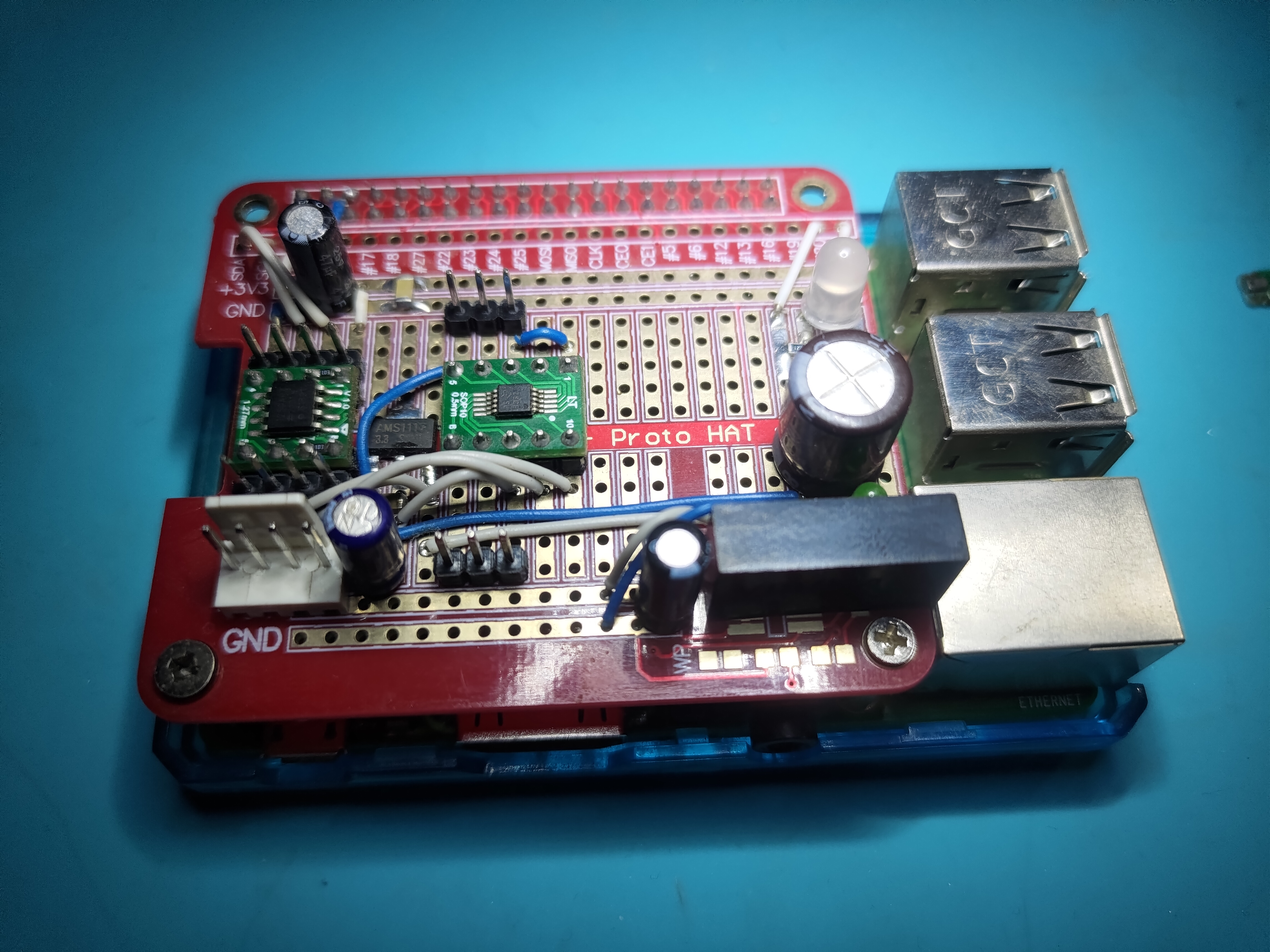

Interfacing the laptop battery with the RaspberryPi

1. Using an I2C isolator to isolate the Raspberry Pi from the lithium battery that is connected to it; if the high-voltage wires come into contact with any GPIO, the Raspberry Pi and everything connected to it will be fried. I will talk about this part more later. You can connect the battery directly to the GPIOs, but this is too dangerous; you are doing this at your own risk.

Main components on the Interfacing-Laptop-Battery-With-RaspberryPi

B0505LS-1WR3AMS1117-3.3ADuM1250ARZADS1115IDGS

Interfacing-Laptop-Battery-With-RaspberryPi bill of materials (BOM)

25 components, 14 distinct parts.

QtyPartRefs
1
B0505LS-1WR3
U1
1
AMS1117-3.3
U2
1
ADuM1250ARZ
U3
1
ADS1115IDGS
U4
1
Raspberry_Pi_2_3
J1
2
Conn_01x04_Male
J2, J3
1
Conn_01x02_Male
J4
1
LED
D1
1
LED_Dual_AAK
D2
5
100n
C1, C4, C5, C7, C8
2
10u
C2, C3
1
1u
C6
3
220R
R1, R6, R7
4
10k
R2, R3, R4, R5

Interfacing-Laptop-Battery-With-RaspberryPi design files

The KiCad project lives in the omarKmekkawy/Interfacing-Laptop-Battery-With-RaspberryPi repository on GitHub; these links point at the commit this page was built from.

Interfacing-Laptop-Battery-With-RaspberryPi: common questions

What microcontroller does the Interfacing-Laptop-Battery-With-RaspberryPi use?

The Interfacing-Laptop-Battery-With-RaspberryPi is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.

How many components are on the Interfacing-Laptop-Battery-With-RaspberryPi?

25 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Interfacing-Laptop-Battery-With-RaspberryPi design files?

From the omarKmekkawy/Interfacing-Laptop-Battery-With-RaspberryPi repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Interfacing-Laptop-Battery-With-RaspberryPi design in my own project?

The repository has no license, so all rights stay with omarKmekkawy. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Interfacing-Laptop-Battery-With-RaspberryPi without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
