About the SignalSnagger PCB
SignalSnagger is an open source PCB design by OpenARDF, published on GitHub under the MIT license. It is a 4-layer board measuring 133.4 × 44.4 mm, with 200 components from 71 distinct parts.
Other key parts include the QS3253QG8, REF4132B33, DG9422E, AVR128DA48 and SI5351. By type, the board carries 77 capacitors, 56 resistors, 16 connectors, 15 ICs, 8 jumpers and 7 transistors.
It belongs with the rf & radio and audio designs in this gallery.
From the project
80m Radio Orienteering Receiver
SignalSnagger is still in development. Product design and BOM contents are preliminary and incomplete.

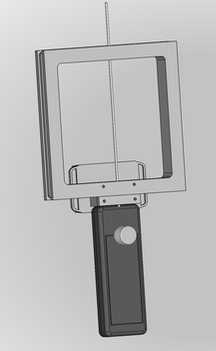

SignalSnagger is an 80-meter band radio orienteering (ARDF) direction-finding receiver designed to operate in the Amateur Radio Service 3.5 MHz to 3.7 MHz frequency range. The receiver is designed to perform well in all common radio orienteering event formats: classic, sprint, and foxoring. SignalSnagger's frequency is stable and accurate using a precision temperature-compensated signal generator. A tuned loop with a "sense antenna," based on Dale Hunt's WB6BYU proven design, provides…
Main components on the SignalSnagger
SignalSnagger bill of materials (BOM)
200 components, 71 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | QS3253QG8 Diodes Incorporated | SSOP-16_4.4x5.2mm_P0.65mm | U102 |
| 1 | REF4132B33 Texas Instruments | SOT-23-5 | U103 |
| 2 | DG9422E Vishay Siliconix | TSOP-6_1.65x3.05mm_P0.95mm | U104, U105 |
| 1 | AVR128DA48 Microchip Technology | TQFP-48_7x7mm_P0.5mm | U201 |
| 1 | SI5351 Silicon Labs | MSOP-10_3x3mm_P0.5mm | U202 |
| 2 | LP2985-5.0 Texas Instruments | SOT-23-5 | U203, U206 |
| 1 | LP2985-3.3 Texas Instruments | SOT-23-5 | U204 |
| 1 | EA_DOGS104W-A Display Visions | EA_DOGS104X-A | U205 |
| 1 | MAX1683EUK Analog Devices Inc./Maxim Integrated | SOT-23-5 | U207 |
| 2 | TS912IDT STMicroelectronics | SO-8_3.9x4.9mm_P1.27mm | U302, U901 |
| 2 | LM386 Texas Instruments | SOIC-8_3.9x4.9mm_P1.27mm | U304, U902 |
| 5 | MMBT2222A onsemi | SOT-23 | Q101, Q102, Q103, Q104, Q105 |
| 1 | BSS84W-7-F Diodes Incorporated | SOT-323_SC-70 | Q201 |
| 1 | BSS138W-7-F Diodes Incorporated | SOT-323_SC-70 | Q202 |
| 1 | 25 MHz Taitien | Crystal_SMD_TXETCLSANF-4Pin | X202 |
| 1 | ECS-327TXO-30-TR ECS Inc. | Oscillator_SMD_ECS_327TXO | X901 |
| 2 | 69830-008LF Amphenol ICC (FCI) | 69830-008LF | J102, J104 |
| 4 | 36-5005-ND | Pin_D1.6mm_L8.5mm_W2.8mm_FlatFork | J105, J108, J302, J903 |
| 3 | 36-5006-ND | Pin_D1.6mm_L8.5mm_W2.8mm_FlatFork | J106, J107, J304 |
| 4 | Conn_01x02 | PinSocket_1x02_P1.27mm_Vertical | J203, J204, J218, J219 |
Show 51 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x04 | PinHeader_1x04_P1.27mm_Vertical | J208 |
| 1 | 35RASMT2BHSNTRX Switchcraft Inc. | SWITCHCRAFT_35RASMT2BHSNTRX | J301 |
| 1 | ISP/PDI Harwin Inc. | PinHeader_2x03_P2.54mm_Vertical | P201 |
| 1 | +7.4V 2S Battery | SolderWire-1sqmm_1x02_P7.8mm_D1.4mm_OD3.9mm_Relief | BT201 |
| 6 | Jumper_2_Bridged | Jumper_THT-1x02_Bridged_Circular | JP103, JP104, JP105, JP106, JP107, JP202 |
| 2 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP201, JP301 |
| 1 | 10k 10T Bourns Inc. | Potentiometer_Bourns_3362P_Vertical | RV101 |
| 1 | np | PinHeader_1x03_P1.27mm_Vertical | RV102 |
| 2 | 100k Bourns Inc. | Potentiometer_Bourns_TC33X_Vertical | RV302, RV901 |
| 2 | SW_SPST E-Switch | SW_SPST_TL1014BF160QG | SW201, SW202 |
| 1 | Coilcraft_PWB-4-CLC | Coilcraft-PWB-4-CLC | T101 |
| 1 | I2C1 | PinSocket_1x04_P1.27mm_Vertical | TP201 |
| 2 | Conn_01x03 | PinHeader_1x03_P1.27mm_Vertical | TP301, TP901 |
| 4 | 1N914WT Diodes Incorporated | D_SOD-523 | D201, D202, D205, D206 |
| 1 | Red LED Lite-On Inc. | LED_0805_2012Metric | D203 |
| 1 | Green LED Lite-On Inc. | LED_0805_2012Metric | D204 |
| 1 | MSS1P4-M3 Vishay General Semiconductor - Diodes Division | DO-219AD | D301 |
| 1 | 10uH Murata Electronics | L_0603_1608Metric | L201 |
| 1 | 100pF YAGEO | C_0603_1608Metric | C101 |
| 30 | 100nF Samsung Electro-Mechanics | C_0603_1608Metric | C102, C108, C111, C112, C115, C117, C118, C121 +22 |
| 1 | 8.5-100pF | VC07B | C103 |
| 1 | 51pF Samsung Electro-Mechanics | C_0603_1608Metric | C104 |
| 13 | 10nF KEMET | C_0603_1608Metric | C105, C106, C107, C110, C204, C214, C217, C218 +5 |
| 1 | 2pF KYOCERA AVX | C_0603_1608Metric | C109 |
| 7 | 10uF Murata Electronics | C_0603_1608Metric | C113, C213, C224, C225, C226, C312, C910 |
| 2 | 47nF KEMET | C_0603_1608Metric | C114, C918 |
| 2 | 390pF YAGEO | C_0603_1608Metric | C116, C919 |
| 7 | 1uF YAGEO | C_0603_1608Metric | C125, C126, C215, C216, C314, C321, C908 |
| 2 | 470nF Samsung Electro-Mechanics | C_0603_1608Metric | C206, C208 |
| 4 | 47uF Samsung Electro-Mechanics | C_1210_3225Metric | C210, C211, C320, C907 |
| 2 | 150nF KEMET | C_0603_1608Metric | C310, C901 |
| 2 | 4.7nF KEMET | C_0603_1608Metric | C311, C902 |
| 2 | 22uF Samsung Electro-Mechanics | C_0805_2012Metric | C325, C912 |
| 2 | 100k YAGEO | R_0603_1608Metric | R101, R201 |
| 4 | 1k YAGEO | R_0603_1608Metric | R102, R121, R204, R313 |
| 15 | 10k YAGEO | R_0603_1608Metric | R103, R105, R120, R122, R206, R207, R212, R213 +7 |
| 1 | 22k YAGEO | R_0603_1608Metric | R104 |
| 4 | 100 YAGEO | R_0603_1608Metric | R106, R117, R209, R916 |
| 3 | 470 YAGEO | R_0603_1608Metric | R107, R321, R910 |
| 6 | 10 YAGEO | R_0603_1608Metric | R108, R109, R320, R322, R909, R911 |
| 3 | 2.7k YAGEO | R_0603_1608Metric | R110, R111, R119 |
| 3 | 49.9 Panasonic Electronic Components | R_0603_1608Metric | R112, R118, R914 |
| 2 | 4.99k YAGEO | R_0603_1608Metric | R113, R915 |
| 1 | 162k YAGEO | R_0603_1608Metric | R202 |
| 1 | 12.4k YAGEO | R_0603_1608Metric | R203 |
| 1 | 220 YAGEO | R_0603_1608Metric | R205 |
| 2 | 4.7k YAGEO | R_0603_1608Metric | R304, R901 |
| 2 | 7.5k YAGEO | R_0603_1608Metric | R305, R902 |
| 3 | 51k YAGEO | R_0603_1608Metric | R306, R309, R903 |
| 1 | 330k YAGEO | R_0603_1608Metric | R307 |
| 2 | 49.9k YAGEO | R_0603_1608Metric | R310, R930 |
